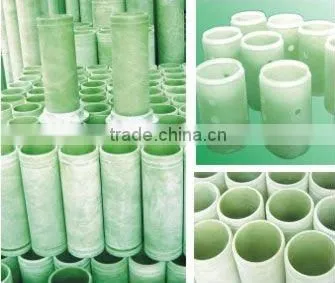

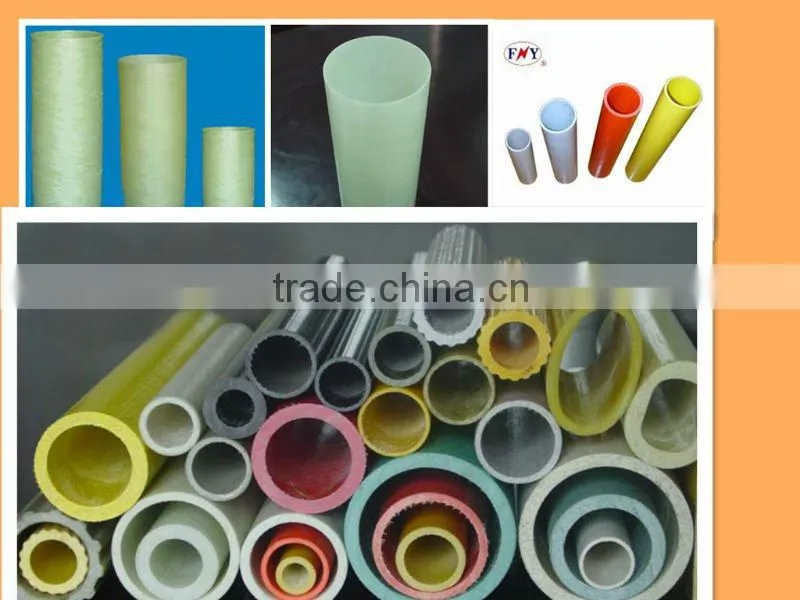

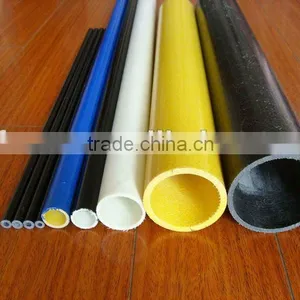

Fiberglass Winding Tube

Negotiable MOQ: 50 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Hebei, China

Brand Name:

Model Number:

Shijiazhuang Fayun Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hebei, China

Brand Name FY

Model Number -

Type Insulator

Material Fiberglass

Application High Voltage

Rated Voltage -

Tensile Strength -

Specifications

Fiber glass tube:
1.Corrosion Resistant
2.Low Electrical & Thermal Conductivity
3.Light Weight & High Strength

Fiberglass Insulation Tube:

silicone rubber fiber glass tube is applicable for high temperature environment,such as electron,electrical machine,lightening,household appliance and electrical heating equipment. Technical parameter:
Normal Diameter	Thickness	Length	Tolerance Allowed
Normal Diameter	Thickness	Length	inside diameter	outside diameter	Length
30~70	3~20	500	±0.3	±0.3	±1
70~150	3~20	1000	±0.5	±0.5	±2
150~550	10~100	2800	±0.5	±0.2	±2
Physical and mechanical parameters			Physical and mechanical parameters
Index Name	Unit	Index	Index Name	Unit	Index
Density	g/cm3>	≥1.80	Density	g/cm3>	≥1.80
Water absorption	%	≤0.15	Water absorption	%	≤0.15
Intensity of curvature(circling direction)	Mpa	≥400	Intensity of curvature(circling direction)	Mpa	≥400
Intensity of compress	Mpa	≥98	Intensity of compress	Mpa	≥98
Voltage vitality on parallel layer at normal state for 5min	Kv	≥25	Voltage vitality on parallel layer at normal state for 5min	Kv	≥25
Voltage vitalityon vertical layer in the oil at 90°C for 5min	MV/m	≥12	Voltage vitalityon vertical layer in the oil at 90°C for 5min	MV/m	≥12
