Main Specifications of Circulation Fluidized Bed Boiler
|
boiler capacity items |
35t/h |
75t/h |
130t/h |
rated steam capacity t/h |
35 |
75 |
130 |
rated working pressure Mpa |
3.82 |
3.82 |
5.3 |
rated steam temperature℃ |
450 |
450 |
450 |
feed water temperature ℃ |
105 |
130 |
150 |
combustion method |
Circulation fludized bed combustion |
Circulation fludized bed combustion |
Circulation fludized bed combustion |
applicable coal |
Coal |
Coal |
Coal |
design the fuel low level caloric |
12670 |
8117 |
6520 |
the coal consumption at full load operation(Kg/h) |
9045 |
20417 |
38792 |
designed efficiency % |
88.6 |
88 |
88 |
exit gas temperature ℃ |
150 |
145 |
150 |
De-sulfur efficiency % |
88 |
88 |
88 |
fuel particle requirement mm |
≤10 |
≤8 |
≤10 |
lime stone particle requirement mm |
≤2 |
≤2 |
≤2 |
drum central line elevation mm |
25000 |
28300 |
33000 |
the highest point elevation l mm |
26750 |
33950 |
54270 |

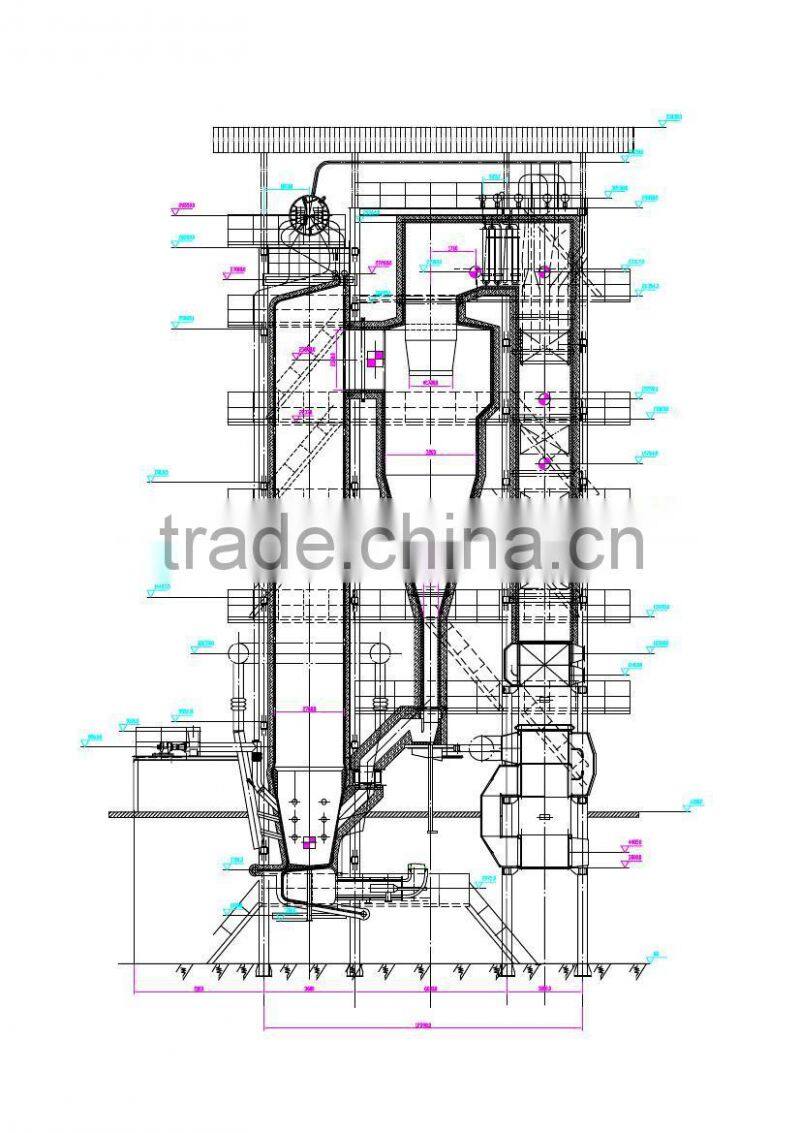

Coal Fired Boiler Drawing
1. High burning efficiency, good gas and coal particle mixing,the unburned big particles can be recycled to the hearth and be reused efficiently.
2. De-sulfur efficiency is high,and the burning temperature is low,so,the NOX emission is low.
3. The load can be adjusted in a wide range and with a high speed.
4. The pretreatment system is simple(comparing to the coal powder boiler),the coal residue can be synthetically used.
• Service is part of product, pre-sale and after-sale service are the same important. Customer’s satisfaction is our aim. Coal Boiler SZL Packaged Boiler
• Consultation Service: Experienced technicians guidance is available on the phone, and on the internet.
• Warm Service: Based on customers’ request and budget, our experts make efficient, reliable solutions, and we produce strictly following customers’ order. Every customer has the chance to visit our workshops before placing the order.
• "Credit based" as company's spirit, Enneng cherishes the trust from every customer.
•Company Culture: Customer Foremost, Credit First.
• We have Chinese A level boiler factory, ASME, CE standard available.
• We can provide some kinds of boiler package such as wood case, steel case,etc
•Our company warmly welcome customers′ visiting and negotiation.
