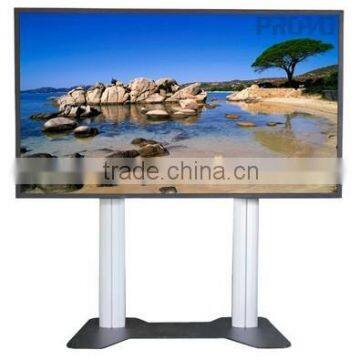

84 inches infrared touch screen kiosk for interactive whiteboard

Specifications

infrared touch screen kiosk 1.best infrared touch 2.interactive touch panel 3.UHD LG 4K screen 4.for whiteboard kiosk

84 inches infrared touch screen kiosk for interactive whiteboard











Ultra-narrow design of aerospace aluminum frame, integrally formed metal cover, adjustable lifting bracket.





It can be synchronized to support MAC, Windows, Androis and other mainstream operating systems;It can be synchronized to share on many pc and mobile image in a large screen and other data;Dual control dual display, so that business meetings and classroom applications can be instantly share, switch.





From six points to infinity points, accurately smooth touch experience and sensitive response to every touch.







Simultaneously recording high-definition version demonstrates processes.







1080P HD video and 5.1 channel audio,output 4K HD perfectly









Unique WIFI-DAV control software, you can achieve multiple machines' screen dual control and display, so that meetings and classroom content can be synchronous to switching.





Why choose Yitelang technology touch all-in-one machine ?



1.Big size



2.Full HD



3.Multitouch
Narrow side: width 20mm,high 8.5mm.
Touch response time : 5ms,measured only 3ms.
Touch points :6pt,12pt,32pt,infinite points.
The world’s exclusive infrared touch can be used outdoors.



4.Cloud platform
84inches century panel via WiFi or wired connection to link any online computer, while on the other side has been installing AIRSCREEN software as the prerequisite, and which agrees to the connection, that can clutch any signal on the screen and the control of the PC screen, at the same time transmit 1080 p high-definition image and 5.1 -channel sound signal.



5.No PC
If install more than one AIRSCREEN drivers on the PC or server software,you can put all the PC and server screen contents displayed on a screen, and also can touch and control any PC and server as you want.





Parameter





1	Panel Size	84.44'' (2134.62mm)
2	Panel type	IPS hard panel
3	Dimension	1904.0(H)x1096.0(V)15.59B)/24.0MM(D)(TYP)
4	Dot pitch	0.4845mmx0.4845mm
5	Brightness(cd/m2)	350 cd/ m2
6	Resolution ratio	3840x2160(4K)
7	Visual Angle	178°
8	Display colors(M)	10BIT(D),10.6BOLLIONS COLOR
9	Power	The total power of 398W,18W logic circuit,LED driver module 380W
10	The panel weight	42.9KG
11	Display mode	Transfer mode,screen display mode
12	Surface treatment	Hard coating(3H),front polarizing anti-glare treatment
13	Backlight type	Full LED
Tractor parameters
14	Length	1931.4mm
15	Width	1116mm
16	Thickness	100mm(The narrowest part of the thickness of only 45MM)
17	Ultra narrow side	Symmetrically ultra narrow design (the front frame of 30mm only)
18	Installation	Standard floor type,wall mounted and embedded
19	Total weight	161.2KG





About us



Shenzhen Yitelang co.,ltd was founded in November,2005,one of the most powerful and professional manufacturers in China.It belonging to high-tech enterprises in Shenzhen.Yitelang is located in the beautiful and elegant, convenient transportation of Yeming Mould industrial park of Guangming disturict in Shenzhen,our factory covers an area of 50000 square meters,and now we have more than 300 employees,which is a production, research, development, sales as one integrated high-tech enterprises.
Since the establishment of the company,focus on LCD products,application of touch and R&D technology,application in various commercial display and promotion work,especially in the field of liquid crystal display,the company has been formed to "PROPAD" brand,digital signage and advertising products covering various public sites.Series of products and services to enterprises of all types of multimedia conference systems.
