84 Inch All in One Touch LCD Panel LCD Monitor

FOB Price

US$ 1 - 999 / Set

1 Set(Min. Order)

Port Shenzhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Products Status	Stock	Application	Desktop
Screen Size	Other, 84''	Response Time	Other, 4.5ms
Brightness	Other, 350cd/m, 350cd	Interface Type	DVI, HDMI, S-Video, TV-out, YPBPR, Other, DVI, HDMI, S-Video, TV-out, YPBPR, RJ45, VGA , AV,USB
Contrast Ratio	10000:1	Resolution	Other, 38402160, 38402160
Widescreen	Yes	Panel Type	IPS
Pixel Pitch	0.4845*0.4845	Brand Name	Propad
Model Number	ETL-84-LN	Place of Origin	Guangdong, China

Product Description

84 inch all in one touch LCD panel LCD monitor

Big size

So far 84.44-inch screen is the largest single screen used in education and conference system . Yitelang-tech can supply 55-inch , 65-inch and 84-inch screen of touch

Ultra HD

Our company's HD panel with 84.44-inch and 4K*2K UHD from LG brand can reach 3840*2160 resolution ratio , truly realising 4K display .

Multitouch

1. narrow side :width 20mm , high 8.5mm.

2. touch response time :5ms , measured only 3ms.

3. touch points : 6pt, 12pt, 32pt, infinite points.

4. the world's exclusive infrared touch can be usd outdoors.

Cloud platform

84-inch century panel via WIFI or wired connection to link any any online computer, while on the other side has been installing AIRSCREEN software as the prerequisite, and which agrees to the connection, at the same time transmit 1080P high-definition image and 5.1-channel sound sigle.

No pc

If install more than one AIRSCREEN drivers on the PC or server software, you can put all the PC and server sceen contents displayed on a screen, and also can touch and control any PC and server as you want .

Specification

Panel Parameters
Screen size	84.44inchs (2134.62mm)
Dimension	1904(h)1096(v)15.5(b)/ 24mm(d)(typ)
Dot pitch	0.4845mm*0.4845mm
Resolution ratio	3840*2160(4k HD)
Display color	10bit(d), 16.7million colors
Brightness	350cd/m2
Visual angle	The wideangle(right/left 178min; up/down 178min)
Engergy level	1
Power	The total power of 398w, 18w logic circuit, led driver module 380w
Standby power	0.50w↓
Response time	4.5ms
Net weight	42.9kg
Display Mode	Tranfer Mode, screen display mode
surface treatment	Hard coating(3h), front polarizing anti-glare treatment(haze10%)
panel type	Ips hard panel
Backlight type	the led light emitting diode
LED back light	Full led
Tractor parameter
Lwt	1931.4mm1116mm100m(most narrow 45mm)
Installation	The standard floor type, wall huang(optional) Accessories and embedded fittings(optional)
Ultra narrow side	symmetrically ultra narrow dsign(front freme 30mm)
Total weight	161.2kg
Package size	1310mm825mm2240mm

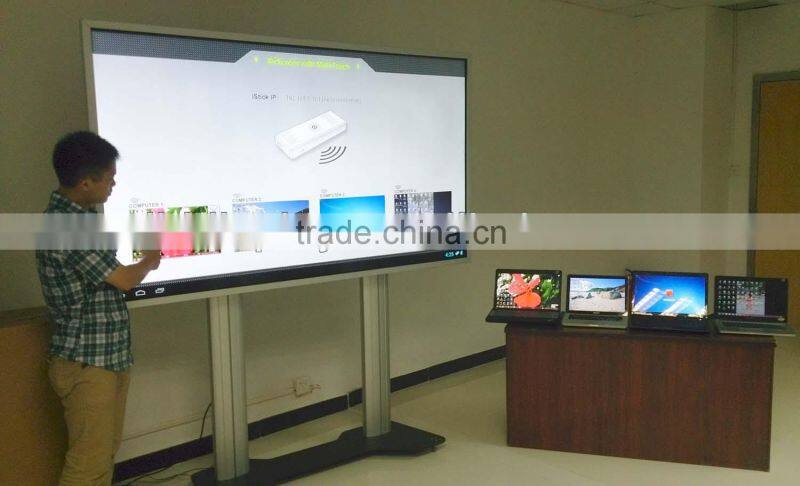

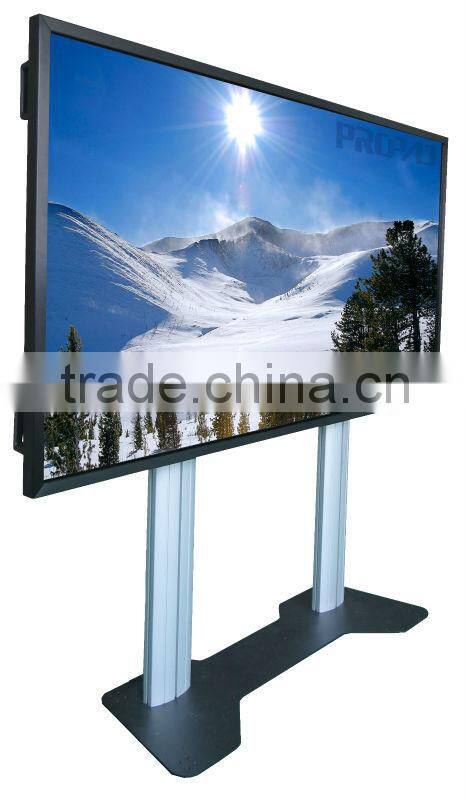

Product Show

Certificate

About product

Touch one machine is a set of advanced touch screen, industrial, and computer technology ,which is one of the new generation of electronic interactive devices. It can meet different regions, places of application requirements. Infrared touch screen, is a highly integrated electronic circuits integrated product.nfrared touch screen, is a highly integrated electronic circuits integrated product, one hundred million Bertrand Touch all-in-one machine using the infrared touch screen which is the use of X, Y direction densely covered infrared matrix to detect and locate the user’s touch. In the light-admitting quality , brightness,and sharpness it is more outstanding, and bringing more realistic display. The wide viewing angle 178°is clearly show,no matter which angle does not affect the use of touch all-in-one machine.
