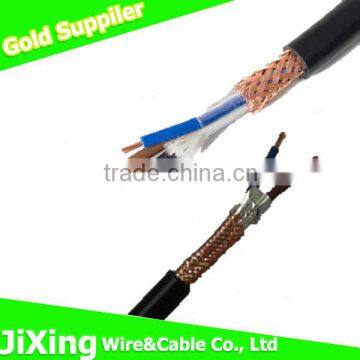

RVVP RVVPS double shielded twisted pair cable
1.ITEM DESCRIPTION:
Model:
RVVP,RVVPS is a kind of soft conductor insulated wire with shielding and PVC jacket,also known as electrical anti-interference flexible connection cable,Rated voltage 300/300V.Common cores from 2-24 cores and section area including 0.12mm,0.2mm,0.3mm,0.4mm,0.5mm,1mm,1.5mm.
Description:Single core and multi-core cables with copper or tinned copper conductor;XLPE insulated and PVC sheathed,Copper wire braid.Cables are rates at 300/300V or 300/500V and conform to IEC 60228.5

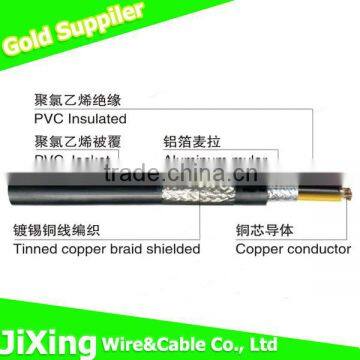

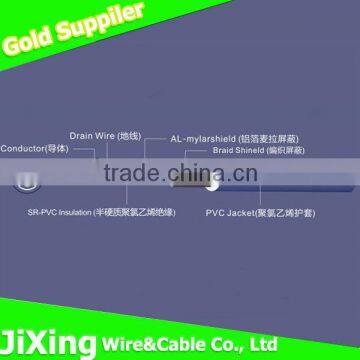

Construction:
Conductor:Plain annealed copper or tinned copper conductor
No. of core:2-24
Cross Section:0.5-25mm
Shape: Circular Compacted or shaped Stranded Conductor (Class 5)
Insulation:PVC
Identification of cores:<=5core,colorful insulation;>5 core,Black insulation with white No. ,including Yellow-Green Wire.
Shielding:Copper wire braid
Sheath:PVC
Assembly:Two,three,four or five insulated conductors are laid up together if necessary filled with non-hygroscopic material compatible with the insulation.The filling may be omitted provided the outer shape of the cables remains practically circular and no adhesion occurs between cores and sheath.
Application:
A good EMC for braid screen,it is good at the high EMC and narrow space.Not for use outside closed rooms.It is same with NYSLCY cable and H05VC4V-F cable,for installation in closed conduits and tubes in door.
Standards
International:IEC 60228
China:GB/T 3956
Other standards such as BS,DIN and ICEA upon request
Certificates
CE,RoHS,CCC,SGS,ISO-9001 and more others at request
Technical data
Test Voltage:2000V,5min
Insulation resistance:>20M • Ω *Km
Operating temp.(static):-30~70 ℃
Operating temp.(flexing): -5~70 ℃
Bending Radius:15×O.D.
Flame retardance:IEC 60 332.1
Norminal cross section size of conductor: 0.5mm2, 1mm2 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2
Cores available: 2 cores-24 cores.
| Number of cores& mm per conductor | Outer Diameter mm | Copper Weight kg/km | Weight kg/km |
| 2*0.5 | 6.5 | 24.8 | 62 |
| 3G0.5 | 6.8 | 30.6 | 72 |
| 4G0.5 | 7.6 | 37.1 | 88 |
| 5G0.5 | 8.2 | 43.8 | 104 |
| 6G0.5 | 9.2 | 56 | 130 |
| 7G0.5 | 9.2 | 61 | 135 |
| 8G0.5 | 9.8 | 69 | 150 |
| 9G0.5 | 11.5 | 84 | 190 |
| 12G0.5 | 12 | 95 | 215 |
| 18G0.5 | 14.2 | 140 | 307 |
| 24G0.5 | 17.2 | 185 | 420 |
| Number of cores& mm per conductor | Outer Diameter mm | Copper Weight kg/km | Weight kg/km |
| 2*0.75 | 7 | 31.2 | 74 |
| 3G0.75 | 7.4 | 39.4 | 87 |
| 4G0.75 | 8.2 | 48.4 | 108 |
| 5G0.75 | 9.2 | 64 | 137 |
| 6G0.75 | 9.9 | 74 | 159 |
| 7G0.75 | 9.9 | 81 | 165 |
| 8G0.75 | 10.5 | 91 | 189 |
| 9G0.75 | 12.7 | 111 | 239 |
| 12G0.75 | 13.2 | 136 | 276 |
| 18G0.75 | 15.6 | 188 | 390 |
| 24G0.75 | 19 | 251 | 532 |
2.Our factory:
company profile:
Shenzhen Jixing Electric Wire&Cable Co.,Ltd., is a medium-sized enterprise specializing in the production of electric wire and cable.The factory covers an area of 12,000 square meters and has 500 staff,including 59 engineers and technical experts,46 inspectors.The technical operation of front-line workers come up to the average of national requirements.Through 34 years' unremitting endeavors,our company owns advanced production equipment,consummation management system,rich production experience and outstanding talented.With unflagging pursuit of excellent quality and service,Jixing enjoys a high reputation among customers in China and Overseas.
3.Our equipment:
4.Our electric cable and wire:
0.6/1KV PVC,XLPE insulated armored power cable
Environment-friendly LSZH(low smoke halogen free) cable
Flame retardant cable
Branching wire
aluminum cable
Welding cable
Internet Lan cable
control cable
THHN,THW etc UL America standard cable
CCA cable
We can also providing customizing service according to your requirement,your specificantions and sample.
5.Our Certifications:
6.Our customers:
7.Construction Case
Shenzhen Longgang Grand Canal Center Stadium
8.Our Package
9.Contract with me:
Austin
Skype:Austin Electric Cable
Wechat/whatsapp:18879133952
QQ:1795002689
Tel:13528477143
