1.Product Description
Item: UL listed PVC Insulated Nylon Sheath 18 awg thw thhn cable.
Model: THHN,THWN,THW.

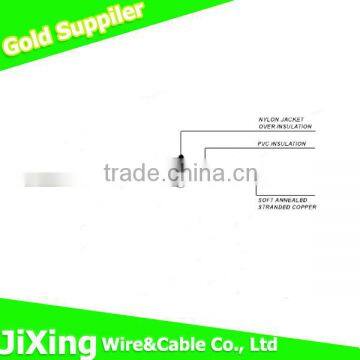

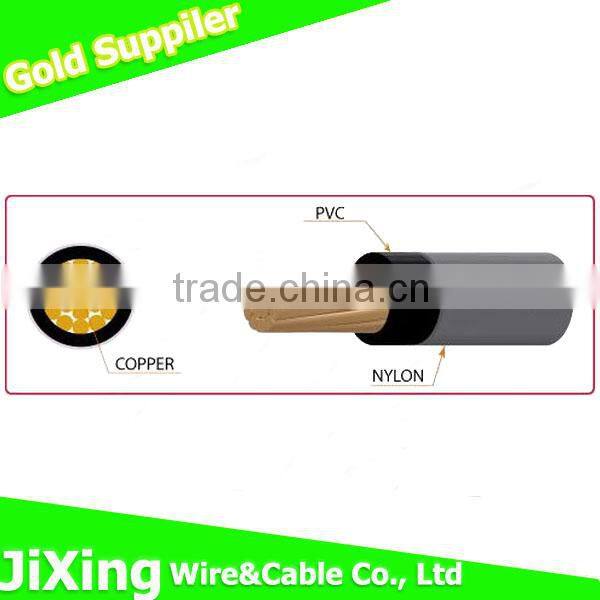

construction:
Conductors
Solid conductors:Uncoated copper per ASTM-B3.
Stranded conductors:Uncoated copper per ASTM-B3,ASTM-B787.
Insulation
Color-coded,heat and moisture resistant PVC(Polyvinyl chloride)
Jacket
Nylon(Polyamide),clear on 14 AWG-10 AWG colors.Nylon on 8 AWG color-coded
Industry Standards
UL 83:File No.E15119
UL 1063(MTW):File No. E85964
AWM:File No.E11829
Canada Standard C22.2 No. 75 and CSA Bulletin No.1451
ASTM:B3,B8,B787
WC70/ICEA S-95-685
Federal Specification A-A-59544
NFPA-70:National Electrical Code
Quality Standard: CCC,CE,ROhs,SGS,ISO 9001,UL certifications.
Rated voltage:600V
Additional Features
Gasoline and Oil Resistant Ⅱ
Machine Tool Wire(Stranded):90 ℃ Dry
Appliance Wire:105 ℃ Dry
8 AWG Rated THHN/THWN-2: 90 ℃ Dry or Wet
Colors
| Color Markings | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| White Jacket | Green Jacket | Grey Jacket | |||||||||
| Green Stripe | Black Stripe | Red Stripe | Blue Stripe | Orange Stripe | Yellow Stripe | Brown Stripe | Yellow Stripe | Yellow Stripe | Orange Stripe | Brown Stripe | |
| 14 strand |
112-3452SX | 112-3475SX | |||||||||
| 14 solid |
112-14452SX | ||||||||||
| 12 strand |
112-3652SX | 112-3612SX | 112-3632SX | 112-3642SX | 112-3662SX | 112-3672SX | 112-3682SX | 112-3675SX | 112-3670SX | 112-3660SX | 112-3680SX |
| 12 solid |
112-1652SX | 112-1612SX | 112-1632SX | 112-1642SX | 112-1662SX | 112-1672SX | 112-1682SX | ||||
| 10 strand |
112-3852SX | 112-3812SX | 112-3832SX | 112-3842SX | 112-3862SX | 112-3872SX | 112-3882SX | 112-3875SX | |||
| 10 solid |
112-1852SX | 112-1812SX | 112-1832SX | 112-1842SX | 112-1862SX | 112-1872SX | 112-1882SX | 112-1875SX | 112-3860SX | ||
| 8 strand |
112-4075SX* | ||||||||||

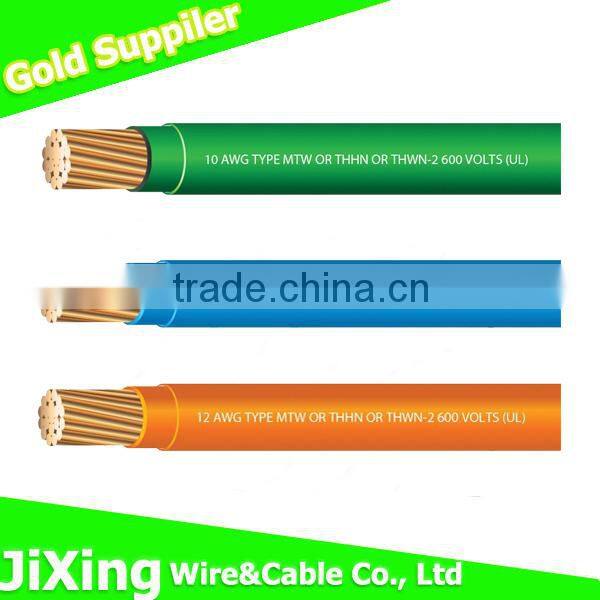

THHN, MTW, THWN-2, AWM, T90 NYLON, TWN75 (cUL)
Thermoplastic Insulated, Nylon Sheathed Heat, Moisture, Oil & Gasoline Resistant 600 Volt Copper
Description
THHN or THWN-2 conductors are primarily used in conduit as branch circuits in commercial or industrial applications, as specified by the National Electrical Code. Type AWM or MTW conductors are primarily used as appliance or machine tool wiring, as specified by the National Electrical Code.
Type THHN or THWN-2 are available as stranded in sizes 14 awg - 750 kcmiL, and as solid in sizes 14-10 awg. Stranded sizes 14 awg - 750 kcmil are also rated as AWM or MTW. The conductors are soft-annealed, stranded or solid copper and are insulated with a tough, heat and moisture resistant polyvinyl chloride (PVC), over which a nylon (polymide) jacket is applied.
Specifications
•THHN or THWN-2 or AWM or MTW meets applicable ASTM specifications, UL Standard 83, UL Standard 758, and UL Standard 1063. The conductors are Gasoline and Oil Resistant II, and have a voltage rating to 600 volts.
•Sizes 1/0 and larger are rated for CT use. All sizes have VW-1 flame rating. All THHN is UL and cUL listed.
| Conductor | Ampacity | |||||
|---|---|---|---|---|---|---|
| Size (AWG) | Stranding | PVC Insulation | Nylon Jacket | Nom. OD (Mils) | 90° C THHN/THWN-2 | Approx Net WT./MFT |
| *14 | Solid | 15 | 4 | 102 | 15 | 16 |
| *12 | Solid | 15 | 4 | 119 | 20 | 24 |
| *10 | Solid | 20 | 4 | 150 | 30 | 37 |
| 14 | 19 | 15 | 4 | 112 | 15 | 16 |
| 12 | 19 | 15 | 4 | 131 | 20 | 24 |
| 10 | 19 | 20 | 4 | 165 | 30 | 37 |
| 8 | 19 | 30 | 5 | 218 | 55 | 64 |
| 6 | 19 | 30 | 5 | 256 | 75 | 96 |
| 4 | 19 | 40 | 6 | 325 | 95 | 155 |
| 3 | 19 | 40 | 6 | 345 | 110 | 190 |
| 2 | 19 | 40 | 6 | 388 | 130 | 235 |
| 1 | 19 | 50 | 7 | 437 | 150 | 300 |
| 1/0 | 19 | 50 | 7 | 477 | 170 | 370 |
| 2/0 | 19 | 50 | 7 | 521 | 195 | 465 |
| 3/0 | 19 | 50 | 7 | 571 | 225 | 570 |
| 4/0 | 19 | 50 | 7 | 627 | 260 | 720 |
| 250 | 37 | 60 | 8 | 711 | 290 | 850 |
| 300 | 37 | 60 | 8 | 766 | 320 | 1011 |
| 350 | 37 | 60 | 8 | 817 | 350 | 1172 |
| 400 | 37 | 60 | 8 | 864 | 380 | 1333 |
| 500 | 37 | 60 | 8 | 949 | 430 | 1653 |
| 600 | 61 | 70 | 9 | 1051 | 475 | 1985 |
| 750 | 61 | 70 | 9 | 1126 | 535 | 2462 |
Technical Parameter:
| Size(AWG) | Strands No./OD.(mm) | Insulation Thickness(mm) | Nylon Jacket Min Thickness(mm) | Approx. OD(mm) | Max.DC Resistance(20 ℃ Ω/km)(bare copper) | Max.DC Resistance(20 ℃ Ω/km)(Tinned copper) ) |
Approx. Weight(kg/km) |
| 14 | 1/1.63 | 0.38 | 0.1 | 2.65 | 8.45 | 8.78 | 23.28 |
| 14 | 7/0.62 | 0.38 | 0.1 | 2.88 | 8.62 | 8.96 | 24.4 |
| 14 | 19/0.37 | 0.38 | 0.1 | 2.87 | 8.62 | 9.15 | 23.74 |
| 12 | 1/2.05 | 0.38 | 0.1 | 3.07 | 5.31 | 5.53 | 35.01 |
| 12 | 7/0.77 | 0.38 | 0.1 | 3.33 | 5.43 | 5.64 | 35.81 |
| 12 | 19/0.465 | 0.38 | 0.1 | 3.35 | 5.43 | 5.75 | 35.54 |
| 10 | 1/2.59 | 0.51 | 0.1 | 3.89 | 3.34 | 3.48 | 56.09 |
| 10 | 7/0.98 | 0.51 | 0.1 | 4.24 |
3.41 | 3.55 | 58.13 |
| 10 | 19/0.59 | 0.51 | 0.1 | 4.25 | 3.14 | 3.55 | 57.38 |
| 8 | 7/1.23 | 0.76 | 0.13 | 5.69 | 2.14 | 2.23 | 95.83 |
| 6 | 7/1.56 | 0.76 | 0.13 | 6.68 | 1.35 | 1.4 | 146.1 |
| 4 | 7/1.96 | 1.02 | 0.15 | 8.42 | 0.848 | 0.882 | 231.53 |
| 2 | 7/2.47 | 1.02 | 0.15 | 9.95 | 0.534 | 0.555 | 352.84 |
| 1/0 | 19/1.89 | 1.27 | 0.18 | 12.51 | 0.335 | 0.349 | 558.07 |
| 2/0 | 19/2.13 | 1.27 | 0.18 | 13.71 | 0.266 | 0.277 | 696.9 |
| 3/0 | 19/2.39 | 1.27 | 0.18 | 15.01 | 0.211 | 0.219 | 864.92 |
| 4/0 | 19/2.68 | 1.27 | 0.18 | 16.46 | 0.167 | 0.172 | 1073.92 |
| 250 | 37/2.09 | 1.52 | 0.2 | 18.25 | 0.142 | 0.147 | 1284.24 |
| 350 | 37/2.47 | 1.52 | 0.2 | 20.91 | 0.101 | 0.105 | 1762.75 |
| 400 | 37/2.64 | 1.52 | 0.2 | 22.1 | 0.0885 | 0.0911 | 2001.49 |
| 500 | 37/2.95 | 1.52 | 0.2 | 24.27 | 0.0709 | 0.0729 | 2476.09 |
| 750 | 61/2.82 | 1.78 | 0.23 | 29.6 | 0.0472 | 0.0486 | 3716.12 |
2.Our factory:
company profile:
Shenzhen Jixing Electric Wire&Cable Co.,Ltd., is a medium-sized enterprise specializing in the production of electric wire and cable.The factory covers an area of 12,000 square meters and has 500 staff,including 59 engineers and technical experts,46 inspectors.The technical operation of front-line workers come up to the average of national requirements.Through 34 years' unremitting endeavors,our company owns advanced production equipment,consummation management system,rich production experience and outstanding talented.With unflagging pursuit of excellent quality and service,Jixing enjoys a high reputation among customers in China and Overseas.
3.Our equipment:
4.Our electric cable and wire:
0.6/1KV PVC,XLPE insulated armored power cable
Environment-friendly LSZH(low smoke halogen free) cable
Flame retardant cable
Branching wire
aluminum cable
Welding cable
Internet Lan cable
control cable
THHN,THW etc UL America standard cable
CCA cable
We can also providing customizing service according to your requirement,your specificantions and sample.
5.Our Certifications:
6.Our customers:
7.Construction Case
Shenzhen Longgang Grand Canal Center Stadium
" Nanchang star" Ferris wheel located in Jiangxi Province, Nanchang City: Hongjiaozhou Ganjiang River on the edge of the Ganjiang citizen Park, is currently the world's second highest Ferris wheel, Nanchang City landmark building. The ferris wheel of total height of 160 meters, a diameter of 153 meters, is located on the Thames River is 135 metres tall" London Eye Ferris wheel" is even higher, become the world's second high Ferris wheel. It has 60 capsules, each capsule can accommodate 6 visitors and 8 cabin configuration, LCD TV, air conditioning, per hour will can accommodate nearly 1000" air" rotating at nanchang. It rotates one cycle takes about 30 minutes, at 160 meters above the ground overlooking the earth, Nanchang landscape panoramic view, the kind of excitement and novelty is the ground could not enjoy.
8.Our Package
9.Contract with me:
Austin
Skype:Austin Electric Cable
Wechat/whatsapp:18879133952
QQ:1795002689
Tel:13528477143
