Home > Products > other cables > Best Price With High Quality 75ohm RG59 Antenna Cable
Best Price With High Quality 75ohm RG59 Antenna Cable
- 100000 Kilometer / Kilometers per Month
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Guangdong, China | Brand Name: | YONGKUNTAI | Model Number: | Antenna wire |
Product Description
Specifications
1,Specs:0.81CCS+3.66FPE+Al Foil+Al Shielding+6.1PVC2,ROHS,CE,ISO9001
3,MOQ:30KM
4,Lead time:10 days

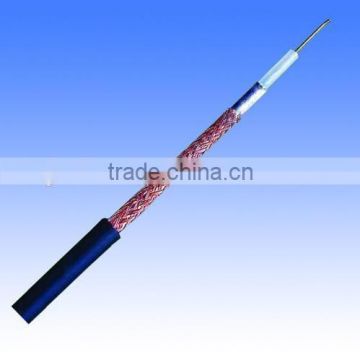

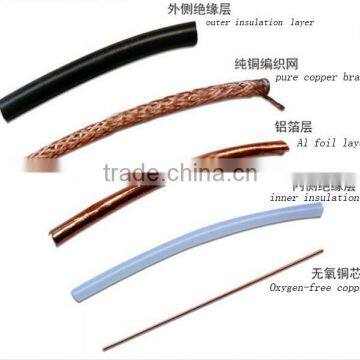

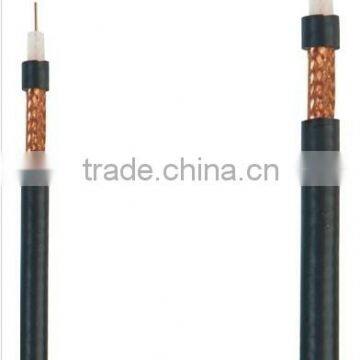

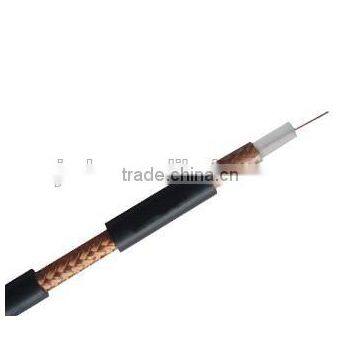

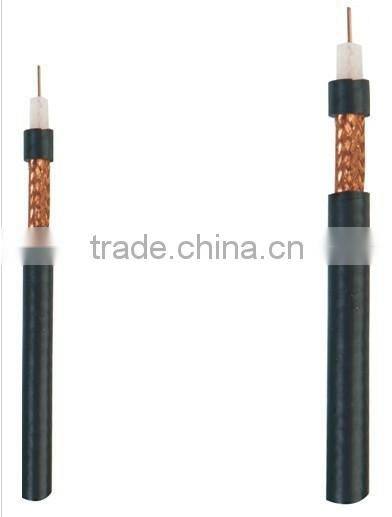

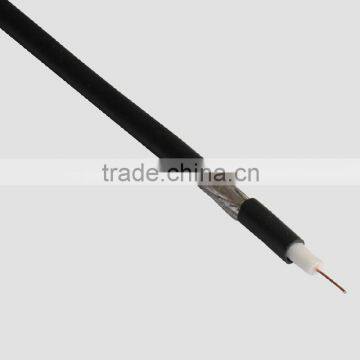

Construction:
Inner Conductor- - - - - - - - - - - - - - - - - 0.81± 0.01mm Copper Clad Steel 21%
Dielectric - - - - - - - - - - - - - - - - - - - - - - 3.66± 0.05mm Foam PE
Shield - - - - - - - - - - - - - - - - - - - - - - - - Bonded Aluminum PET Aluminum
Braid Coverage- - - - - - - - - - - - - - - - - - 0.12mm *16*6 (60%)AL-Mg Alloy
Shield- - - - - - - - - - - - - - - - - - - - - - - - Aluminum PET Aluminum
Jacket- - - - - - - - - - - - - - - - - - - - - - - - 6.20± 0.05 mm PVC
Jelly/APD - - - - - - - - - - - - - - - - - - - - - - Per Customized
RG6 cable Description
RG6 cable Characteristics:
Impedance:75±3.0hms
Capacitance(pF/m) :54±3.0
Nominal Velocity of Propagation: 85%
Return loss(≥dB) : VHF 5-300MHz ≥20dB UHF 300-960MHz≥18dB
Options:
1. Inner Conductor: Bare Copper, CCA, CCS
2. Dielectric: Foam/Solid PE
3. Shield: (Bonded/non-bonded) A/P/A, A/P Foil, copper Foil
4. Braid wire material: Bare Copper, CCA, AL-Mg, TC
5. Braid wire diameter: 0.12mm, 0.16mm
6. Braid net: 64W, 72W, 80W, 96W, 128W and more
7. Braid coverage: 60%, 70%, 80%, 90% and more
8. PVC jacket degree: 65, 70, 75 and more
9. Certifications: UL, CSA, ETL, RoHS, CE etc.
10. Customized requirement welcomed.
Electrical Specifications:
Characteristic Impedance - - - - - - - - - - - - - - 75 Ohm± 3 Ohm
Nominal Velocity of Propagation - - - - - - - - - 85%
Nominal Capacitance - - - - - - - - - - - - - - - - - 16.2 pF/ft
Return Loss - - - - - - - -- -- - - - - - - - - - - -- - - - 20dB min (5-2250 MHz)
