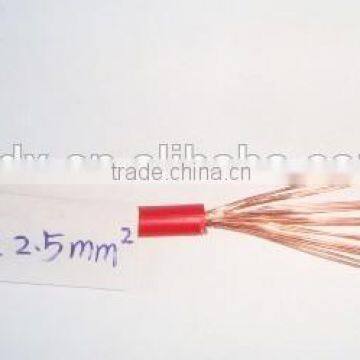

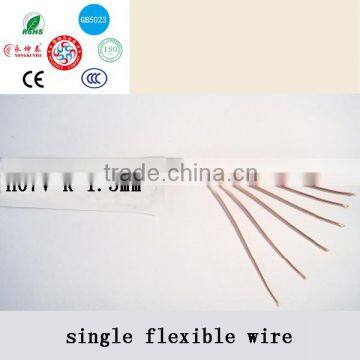

Help CenterLow Voltage Multi Ultra Flexible Electric Wire/cable
Related Products
-
Electric Wire for Copper Stranded ConductorUS$ 0.1 - 9.9MOQ: 5000 Meters -
China Factory High Quality Pure Copper 99.99% Electric Wire for House BuildingUS$ 0.1 - 1MOQ: 100000 Meters
-
High Quality Single Core Flexible Electric Wire Guangdong ManufacturerUS$ 0.1 - 9.9MOQ: 5000 Meters
-
1x6mm Electric Wire Flexible H07V-R 300/500VUS$ 0.1 - 1MOQ: 2000 Meters
-
300/500V 4mm2 PVC Flexible Electric WireUS$ 0.1 - 1MOQ: 2000 Meters
Welcome to Shenzhen Jixing Electric Cable & Wire Co., Ltd
SHENZHEN JIXING ELECTRIC WIRE & CABLE CO., LTD (formerly: Shenzhen Jixing electric wire factory) was established in 2001, is one of the largest and specializing in research and development, manufacturing and sales of wire and cable factory in South China. The company is located in Baoan District.
Application
Copper conductor pvc insulation flat electrical cable wrie of rated voltage 450/750V a.c and below, used in fixed house wiring, movable appliances, internal wiring of electrical appliances and instrument.
Product Description
1) Rated volatge: 300/300V, 300/500V, 450/750V
2) Conductor: class 1, 2 copper
3) Sectional area: 0.5 - 10mm2
4) Insulation: PVC
5) No. of cores: 2, 3
6) Oversheath: PVC
7) Max. working temperature: 70°c
8) Max. DC resistance at 20 °c:
| Sectional area (mm2) | 0.5 | 0.75 | 1.0 | 1.5 | 2.5 | 4 | 6 | 10 |
| Resistance (Ω/km) | 36.0 | 24.5 | 18.1 | 12.1 | 7.41 | 4.61 | 3.08 | 1.83 |

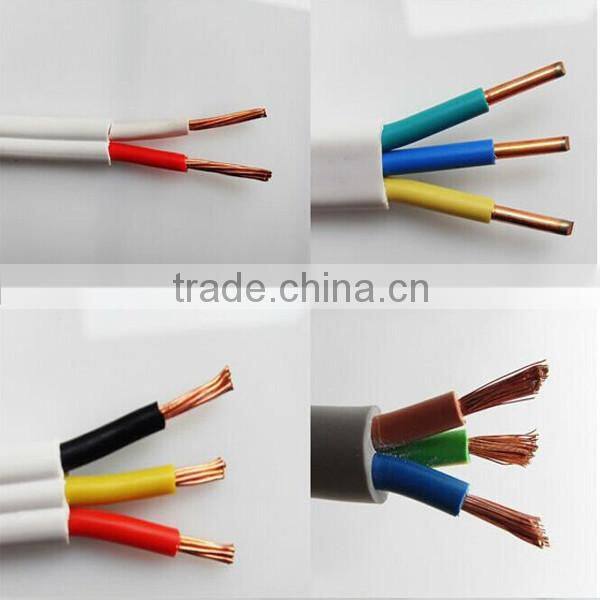

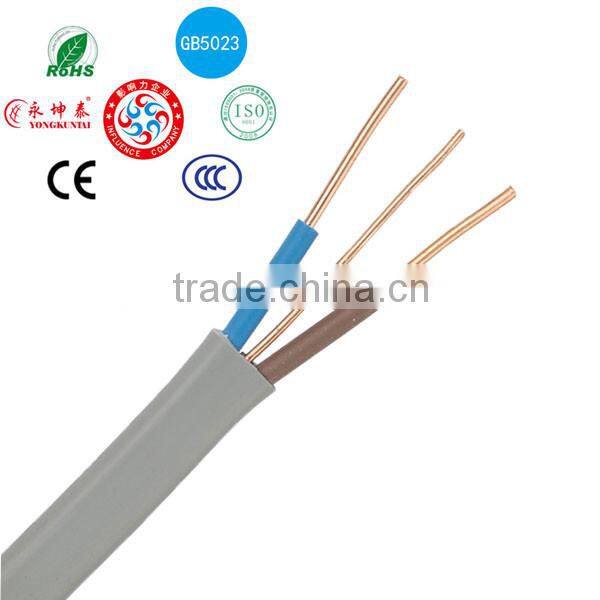

Products of this series include:
1) 2 core copper conductor pvc insulated and sheathed flat cable, rated voltage: 3.00/500V, sectional area: 0.75 - 10mm2
2) 3 core copper conductor pvc insulated and sheathed flat cable, rated voltage: 3.00/500V, sectional area: 0.75 - 10mm2
The products meet or exceed the requirements of IEC60227. They can also be produced according to other internationally accepted standards or as per customers' requirements.

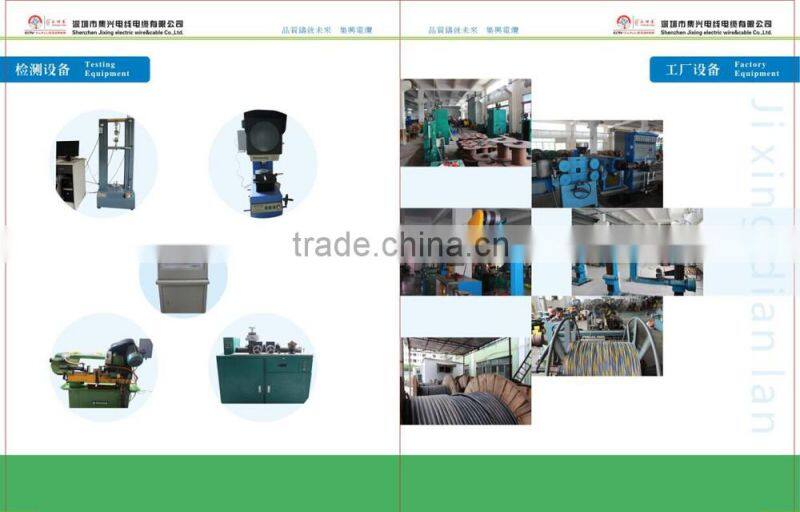

Testing Machine
*Kindly note that also we can make cables according to your requirements.
Your inquiry will be replied within 24 hours !
Send Inquiry to This Supplier
