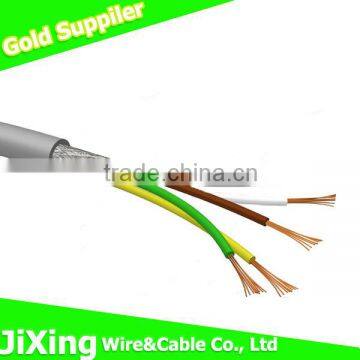

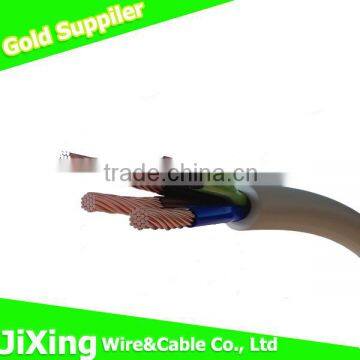

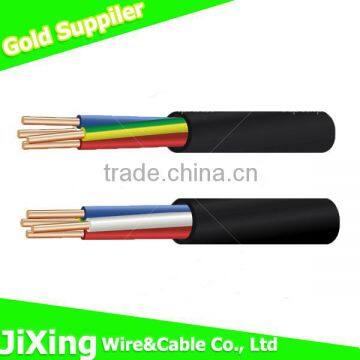

300/500V Flexible 4 Core Copper Cable for House

300/500V flexible 4 core  copper cable for house

1.Product Description

Item:      300/500V flexible 4 core  copper cable for house

The full name of H05VV-F/RVV is Copper conductor PVC insulated and sheathed flexible cable,  commonly known as Soft-sheathed cable, is one kind of sheathed cable. H05V-F/RVV wire and cable is consisted of two or even more H07V-K/RV lines plus one jacket outside.

Model: H05VV-F/RVV.

VV means PVC insulation and sheath,R means flexible,05 means voltage is 300/500V.

Specification:

number of cores*section-area of each core(sq mm)

2×0.50, 3×0.50,4×0.50,5×0.50,6×0.50,7×0.50,8×0.50,10×0.50,12×0.50,18×0.50,25×0.50,36×0.50.
2×0.75, 3×0.75,4×0.75,5×0.75,6×0.75,7×0.75,8×0.75,10×0.75,12×0.75,18×0.75,25×0.75,36×0.75.
2×1.0,   3×1.0,  4×1.0,   5×1.0,  6×1.0,  7×1.0,   8×1.0,  10×1.0,   12×1.0,  18×1.0,  25×1.0,   36×1.0.
2×1.5,   3×1.5,  4×1.5,   5×1.5,  6×1.5,  7×1.5,   8×1.5,  10×1.5,   12×1.5,  18×1.5,  25×1.5,   36×1.5.
2×2.5,   3×2.5,  4×2.5,   5×2.5,  6×2.5,  7×2.5,   8×2.5,  10×2.5,   12×2.5,  18×2.5,  25×2.5,   36×2.5.
2×4.0    3×4.0,  4×4.0,   5×4.0,               7×4.0.
2×6.0    3×6.0,  4×6.0,   5×6.0,               7×6.0.
2×10     3×10.   4×10.    5×10.0.
2×16     3×16    4×16.    5×16.0.
2×25     3×25    4×25.    5×25.0.
2×36     3×36    4×36.0  5×36.0.

Section-area of conductor:0.5 sq mm,0.75 sq mm,1 sq mm,1.5 sq mm,2.5 sq mm,4 sq mm,6 sq mm,10 sq mm,16 sq mm,25 sq mm.

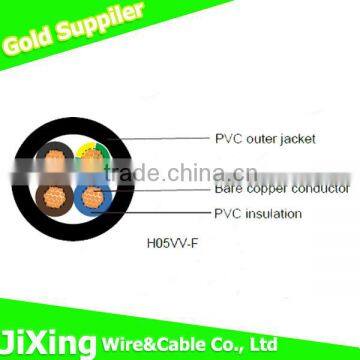

Product Structure: Conductor + Insulation+sheath.Oxygen-free pure copper conductors + PVC Insulation+PVC posed by multi-strand annealed copper cable,PVC insulation and sheath.

Implementation of the standards:  GB/T5023.5-2008

Quality Standard: CCC,CE,ROhs,SGS,ISO 9001 certifications.

Rated voltage:300/500V

 Soaked one hour, Wire subjected to alternating current  50Hz 250V (450 / 750V), 2000V (300 / 500V) voltage test 5 minutes without breakdown.

Operating temperature: normal operating temperature does not exceed the maximum 70 ℃.

Color: color of sheath:black,  white;color of insulation yellow-green,blue,brown.

Application:  used as control signal transmission line, electrical equipment, instrumentation, automation equipment, security alarm system, high-rise building intercom systems, home lighting cable etc.

Special Items:  Similarly, according to the choice of different materials,H05VV-F/RVV wire is also divided into fire-retardant wire (ZR-RVV), fire-resistant wire (NH-RVV),low smoke halogen free wire (WDZ-RVV).Users can choose according to their own needs depending on different occasion. The low smoke halogen free wire and produce a very small amount of smoke in the flame, the release of gas does not contain halogen (low halogen) elements, non-toxic (low toxicity). When a fire occurs, it can greatly reduce the damage of apparatus, equipment and the human body.That's why it has been widely used in high-rise buildings, hospitals, large library, gymnasium, disaster prevention and control building, railway stations and civil airports, passenger waiting room, key cultural relics protected places and subway, underground shopping malls or densely populated public places.

Key technical parameter of different specifications and models:

2.Our factory:

company profile:

Shenzhen Jixing Electric Wire&Cable Co.,Ltd., is a medium-sized enterprise specializing in the production of electric wire and cable.The factory covers an area of 12,000 square meters and has 500 staff,including 59 engineers and technical experts,46 inspectors.The technical operation of front-line workers come up to the average of national requirements.Through 34 years' unremitting endeavors,our company owns advanced production equipment,consummation management system,rich production experience and outstanding talented.With unflagging pursuit of excellent quality and service,Jixing enjoys a high reputation among customers in China and Overseas.

3.Our equipment:

4.Our electric cable and wire:

0.6/1KV PVC,XLPE insulated armored power cable

Environment-friendly LSZH(low smoke halogen free) cable

Flame retardant cable

Branching wire

aluminum cable

Welding cable

Internet Lan cable

control cable

THHN,THW etc UL America standard cable

CCA cable

We can also providing customizing service according to your requirement,your specificantions and sample.
