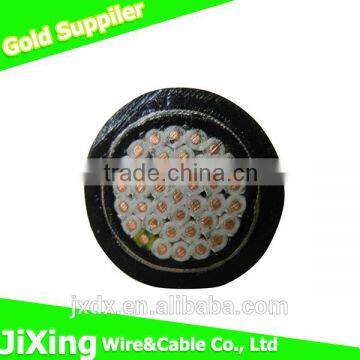

PVC insulated control cable steel tape 4 core armoured control cable KVV22

PVC insulated control cable steel tape 4 core armoured control cable KVV22

Model:KVV control cable

1.Standard

    GB/T 9330-2008

2.Application

    The product is suitable for the situation of control the return circuit and protect the line and so on which the AC rated voltage is Uο/U450/750V or lower that.

3.Operational performance

    (1).Rated voltage Uο/U450/750V

    (2).The max permissible conductor operating for long term service shall be :PVC insulation is 70°C,XLPE insulation is 90°C

    (3).The cable laid tempretrue should not lower 0 °C ,the recommend permissible bending radius is:

    —Cable without armour layer should not less than 6times of cable diameter

    —Cable armored or copper tape screen construction should not less than 12 times of cable diameter

    —The flexible cable with screen construction should not less than 6 times of cable diameter

Specification:
