Welcome to Shenzhen Jixing Electric Cable & Wire Co., Ltd
SHENZHEN JIXING ELECTRIC WIRE & CABLE CO., LTD (formerly: Shenzhen Jixing electric wire factory) was established in 2001, is one of the largest and specializing in research and development, manufacturing and sales of wire and cable factory in South China. The company is located in Baoan District.
Specification
1)Rated Voltage: 300/500V
2)Rated temperature:0°C to 70 °C
3)Standard: GB, IEC. etc.
4)Testing Voltage: 2.5KV
5)Min. insulation resistance at 70 °C(Mohm.km): 0.0046
6)Conductor:pure copper.(more choices:copper coated aluminum,% copper+%aluminium)
7)Insolation:PVC (polyvinyl chloride) Color:green,yellow,red,brown,coffee,blue,yellow/green,black,grey
8)Sheath:PVC (polyvinyl chloride) Color:black(white,orange,grey available)
9)Certification: CCC,CE,RoHS
10)20 years manufacturing experience
11)Specialized in electric/electrical appliances,lighting,construction,home applicances
12)Customer wire cable
13)Stock available, free sample
14)Small profits, quick returns
15)High quality and competitive price
16)Convenient transportation (One hour drive to Shenzhen port) )and timely delivery
More Products:R Series
Model |
Rated Voltage |
Name |
Application |
Rated Temperature |
|
60227IEC02 RV |
450/750V |
Copper conductor PVC insulated flexible battery cable (electrical wire)
|
Mainly used at middle and light style moving electronics, instrument,home appliances,industrial machine,power and lighting and the places where flexible required
|
0°C to +70°C
|
|
60227IEC06 RV |
300/500V |
|||
|
60227IEC42 RVB |
300/300V |
Copper conductor PVC insulated flat flexible connector cable (electrical wire)
|
||
|
RVS
|
300/300V |
Copper conductor PVC insulated flexible twisting connector cable (electrical wire) |
||
|
60227IEC52 RVV |
300/300V |
Copper conductor PVC insulated PVC sheathed round flexible connector cable (electrical wire) |
||
|
60227IEC53 RVV |
300/500V |
Packing
Option1-inside plastic film,outside several rolls in one carton
Option2-inside plastic film,outside PP bag
Option3-plywood reel

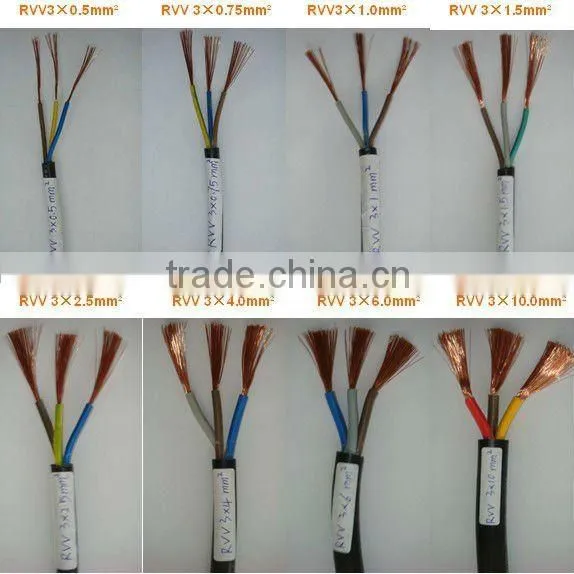

We have the following sizes in stock,small quantity is welcome.
Model and Specification |
Usage |
RVV 3×0.5mm² |
For lighting as well as light duty appliances |
RVV 3×0.75mm² | |
RVV 3×1mm² | |
RVV 3×1.5mm² | |
RVV 3×2.5mm² | |
RVV 3×4mm² |
1.For power transfer from electrical pole to house mains 2.To connect heavy electrical appliances like stoves, conditionerand heave machinery. |
RVV 3×6mm² | |
RVV 3×10mm² |
*Kindly note that also we can make cables and wires according to your required specification.
H05RR-F H05RN-F H07RN-F Flexible Rubber Cable Rubber Welding Cable
Rubber welding cable is suitable for power device with moving installation and rated voltage up to
and including 450/750V,300/300V,300/500V.
Characteristics
1. Rated power-frequency voltage U0/U: 450/750V, 300/500V and 300/300V.
2. Maximum permitted operating temperature of conductor is 60°C.
3. Permitted lowest working temperature is -35°C.
4. Cables can be used at places contaminated by mineral oil and fuel oil.
5. D>25mm
The minimum bending radius is over 6 times of cable diameter.
D≤25mm
The minimum bending radius is over 4 times of cable diameter.
(D-Diameter of the cable)
Specification
Type |
Name |
YQ |
NR/SBR rubber insulated NR/SBR rubber sheathed flexible cables (wires) for light duty |
YQW |
NR/SBR rubber insulated neoprene rubber sheathed flexible cables (wires) for light duty |
YZ |
NR/SBR rubber insulated NR/SBR rubber sheathed flexible cables (wires) for middle duty |
YZW |
NR/SBR rubber insulated neoprene rubber sheathed flexible cables (wires) for middle duty |
YC |
NR/SBR rubber insulated NR/SBR rubber sheathed flexible cables (wires) for heavy duty |
YCW |
NR/SBR rubber insulated neoprene rubber sheathed flexible cables (wires) for heavy duty |
YH |
NR/SBR rubber sheathed arc welding cable |
THF |
Neoprene rubber sheathed arc welding cable |
Note: suffix W means cable has the properties of weather and oil resistance, suitable for the places outdoors
and contaminated by the oil.
