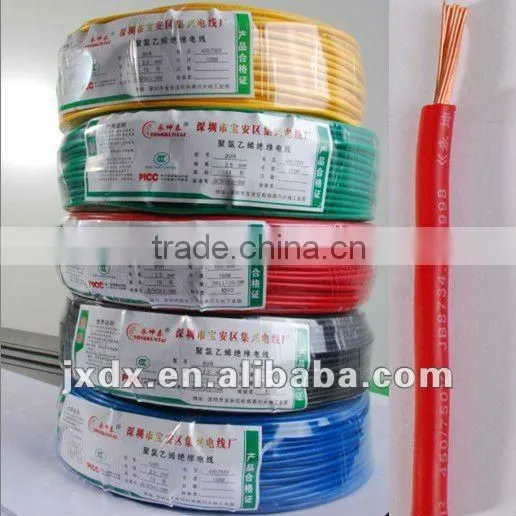

Help CenterChina CCC Pvc Insulated Electric Wire With High Quality Copper for Construction 450/750V
Related Products
-
BVVB Flat Pvc Electric Cable in House Wiring With Flexible CopperUS$ 0.137 - 6.865MOQ: 5000 Meters -
Plastic Coated Copper WireUS$ 0.08 - 15.879MOQ: 10000 Meters
-
Single Core Pvc Cable JacketUS$ 0.08 - 15.879MOQ: 10000 Meters
-
Cable BV Single Solid in AngolaUS$ 0.08 - 15.879MOQ: 10000 Meters
-
Congo Hot Sale Multi Strand Copper Electrical Wires 0.75mm2US$ 0.083 - 6.63MOQ: 5000 Meters
Specifications
1)Use for electric wiring2)PVC single core cable
3)Semi-flexible copper
4)Low price good quality
5)China BVR series
BVR Structure
BVR in stock
We have the following specifications in stock,small quantity is welcome.
Specification |
BVR 0.75mm² |
BVR 1mm² |
BVR 1.5mm² |
BVR 2.5mm² |
BVR 4mm² |
BVR 6mm² |
BVR 10mm² |
BVR 16mm² |
*Kindly note that also we can make cables and wires according to your requirements.
BVR 0.75mm² (7 pcs of copper wires)
BVR 1mm² (7 pcs of copper wires)
BVR 1.5mm² (7 pcs of copper wires)
BVR 2.5mm² (19 pcs of copper wires)
BVR 4mm² (19 pcs of copper wires)
BVR 6mm² (19 pcs of copper wires)
BVR 10mm² (49 pcs of copper wires)
BVR16mm² (49 pcs of copper wires)
Regular packing:100meters per roll by plastic film
More Packing
1-paper reel
2-plastic reel
3-metal reel
4-plastic film (free)
5-plastic bag+belt
Why choose us?
1)Rated Voltage: 450/750V
2)Rated temperature:0°C to 70 °C
3)Standard: GB, IEC. etc.
4)Testing Voltage: 2.5KV
5)Min. insulation resistance at 70 °C(Mohm.km): 0.0046
6)Conductor:pure copper.(more choices:copper coated aluminum,% copper+%aluminium)
7)Insolation:PVC (polyvinyl chloride) Color:green,yellow,red,brown,coffee,blue,yellow/green,black,grey
8)Sheath:non-sheath
9)Certification: CCC,CE,RoHS
10)20 years manufacturing experience
11)Specialized in electric/electrical appliances,lighting,construction,home applicances
12)Customer wire cable
13)Stock available, free sample
14)Small profits, quick returns
15)High quality and competitive price
16)Convenient transportation (One hour drive to Shenzhen port) )and timely deliverB
All models:
BV,BLV,BVR,BVV,BLVV, BVVB, BLVVB,RV,RVB,RVS,RVV
|
Code Designation by IEC |
Code Designation by GB |
Rated Voltage |
Name |
Application |
Rated Temperature |
60227 IEC 01 |
BV |
300/500V |
Copper conductor PVC insulated rigid cable (electrical wire) |
Fixed laid indoors Instrument etc. |
0°C to +70°C |
60227 IEC 05 |
BV |
450/750V |
|||
|
BLV |
450/750V |
Aluminum conductor PVC insulated rigid cable (electrical wire) |
||
|
BVR |
450/750V |
Copper conductor PVC insulated semi-flexible cable (electrical wire) |
Be for laying permanent place where flexible required. |
0°C to +70°C |
60227 IEC10 |
BVV |
300/500V |
Copper conductor PVC insulated PVC sheathed round rigid cable (electrical wire) |
Fixed laid, fit for the places with high mechanical protection and moisture place, can be laid in the air or underground. |
0°C to +70°C |
|
|
BLVV |
300/500V
|
Aluminum conductor PVC insulated PVC sheathed round cable (electrical wire) |
||
|
BVVB |
300/500V
|
Copper conductor PVC insulated PVC sheathed flat cable (electrical wire) |
||
|
BLVVB |
300/500V
|
Aluminum conductor PVC insulated PVC sheathed flat cable (electrical wire) |
||
60227 IEC 02 |
RV |
450/750V
|
Copper conductor PVC insulated flexible connector cable (electrical wire) |
Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required |
0°C to +70°C |
60227 IEC 06 |
RV |
300/500V |
|||
60227 IEC 42 |
RVB |
300/300V |
Copper conductor PVC insulated flat flexible connector cable (electrical wire) |
||
|
RVS |
300/300V
|
Copper conductor PVC insulated flexible twisting connector cable (electrical wire) |
||
|
60227 IEC 52
|
RVV |
300/300V
|
Copper conductor PVC insulated PVC sheathed round flexible connector cable (electrical wire) |
||
60227 IEC 53 |
RVV |
300/500V |
Noted:
BV / BVR difference: BV for the single-strand wire, BVR for the multi-strand wire, price for BVR more than about 3% of BV.
Our factory
Our testing system
*Kindly note that also we can make cables according to your requirements.
Your inquiry will be replied within 24 hours !
