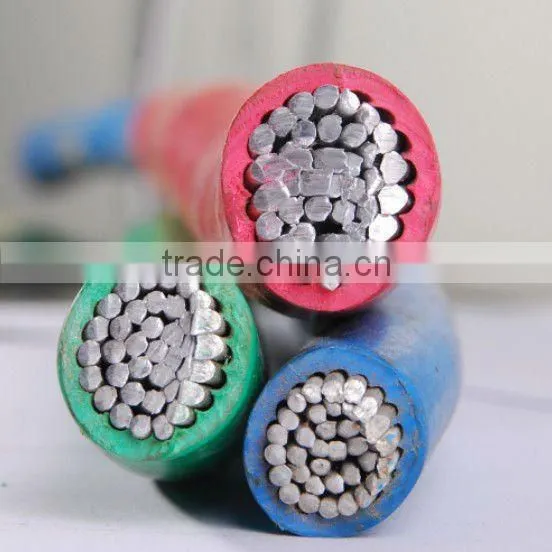

pvc cable 240mm
- 800000 Meter / Meters per Month
- Shenzhen
- T/T
- NF24Q100-01 Carlisle Tensolite Aviation cables
- GSC-13-84943-07 GORE Aviation fiber optic transmission cable
- RCN8687 GORE Advantage products RCN8687 8989 9053
- TE 10612-24-9 Cheminax Spot inventory can be shipped at any time
- Power Accessories Photovoltaic lines Wires UL10269 high voltage cable
- Factory Direct House Wiring 2.5mm2 Single Core Flexible Copper Wire Electrical Wire Installation Electric Cables Price
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Yongkuntai | Model Number: | BLV |
Type: | Other, Insulated, rigid | Application: | Other, construction,building 450/750V | Conductor Material: | Aluminum |
Conductor Type: | Solid | Insulation Material: | PVC |
Product Description
About our products
Usage | It applies to electrical appliances,household appliances,construction, instrument and telecom device with rate voltage up to and including 450/750 volts. |
Insulation & Sheath Color | Black, red, white, blue, green, yellow etc.. |
Conductor Material | CU/AL/CCA Copper/Aluminum/Copper Clad Aluminum |
Model | BVV,BV,BVVB,BVVB+E,BVR,RV,RVV,KVV,YH,RVS,RVB , BLV,BLVV |
Conductor Type | Solid or Stranded |
Brand | Yongkuntai GB, Tianxiang ZB |
Number of cores | one, two, three, four, five |
Common Wire Specification | 1 sqmm / 1.5 sqmm / 2.5 sqmm sq / 4 sqmm / 6 sqmm / 10 sqmm etc. |
Max. Conductor Operating Temperature | 70 Celsius degree,90 Celsius degree |
Rated Voltage
| 300/300V,300/500V, 450/750V |
Relative Standard | IEC, GB5023, JB |
Certification | ROHS compliance CCC Approved CE certification |
Packing | expert standard reels, coils, rolls, bundles |
Model and Name
Type | Name | Laying place and requirement | Long term working Temperature Celsius degree |
60227IEC01 (BV) 60227IEC 05 (BV)
| Copper conductor PVC insulated cable (electrical wire)
| Fixed laid indoors Conduit etc. |
70 |
BLV | Aluminum conductor PVC insulated cable (electrical wire) | ||
60227IEC07 (BV-90) | Heat resistant copper conductor PVC insulated cable (electrical wire) at 90 Celsius degree | Mainly be laid at the places of high temperature environment and can be laid indoors ,conduits. |
90 |
BVR | Copper conductor PVC insulated flexible cable (electrical wire)
| Be for laying permanent place where flexible required. |
70 |
60227IEC10 (BVV) | Copper conductor PVC insulated PVC sheathed round cable (electrical wire) | Fixed laid, fit for the places with high mechanical protection and moisture place, can be laid in the air or underground. |
70 |
BLVV | Aluminum conductor PVC insulated PVC sheathed round cable (electrical wire)
| ||
BVVB | Copper conductor PVC insulated PVC sheathed flat cable (electrical wire)
| ||
BLVVB | Aluminum conductor PVC insulated PVC sheathed flat cable (electrical wire)
| ||
60227IEC02 (RV) 60227IEC06 (RV) | Copper conductor PVC insulated flexible connector cable (electrical wire)
| Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required |
70 |
60227IEC42(RVB) | Copper conductor PVC insulated flat flexible connector cable (electrical wire)
| ||
RVS
| Copper conductor PVC insulated flexible twisting connector cable (electrical wire)
| ||
60227IEC52(RVV) 60227IEC53 (RVV) | Copper conductor PVC insulated PVC sheathed round flexible connector cable (electrical wire)
| ||
60227IEC08 (RV-90)
| Copper conductor heat resistant PVC insulated flexible connector cable (electrical wire) at 90 Celsius degree | Mainly used at the places where heat resistance is required |
90 |
Noted:
1.A roll of wire length: 100 meters.(minus or plus 1 or 2 m)
2. BV / BVR difference: BV for the single-strand wire, BVR for the multi-strand wire, price for BVR more than about 5% of BV.
