Specifications
1. PVC sheath and XLPE insulation2. 0.6/1KV OFC material
3. short delivery
4. OEM
OUR SAMPLES
XLPE Armoured Power Cable Aluminum
We can make a variety of specification based on customers requests.
XLPE Armoured Power Cable
Conductor:
Solid or stranded copper
-Insulation
Cross-linked polyethylene or PVC( XLPE or PVC)
-Circuit Identication
The insulation shall be red, black
-Filler:
Polypropylene lament with lapped binding tape
-Inner Sheath:
Polyvinyl chloride (Black)
-Armor:
Galvanized steel wire
-Core-covering:
Binding tape
-Outer Sheath:
Polyvinyl chloride (Black)
-Application:
For use in ducts, trays and direct burial in ground. The cable is subject to immerse in water all the time.
Installation
This cable can be installed in duct, tray or direct burial. It is recommended that the installation instructions indicated by the Local Electric Code, or any equivalent, be followed,so that the safeguarding of persons and the integrity of the product will not be affected by eciencies in the installation.
Single core or multi-core
Copper or aluminium conductor
XLPE insulation
Copper tape or copper wire screen
Galvanized steel wire armored
PVC or PE sheath
Laying conditions: For lyaing under ground with large different altitude, be able to bear external machanical force and moderate pulling force

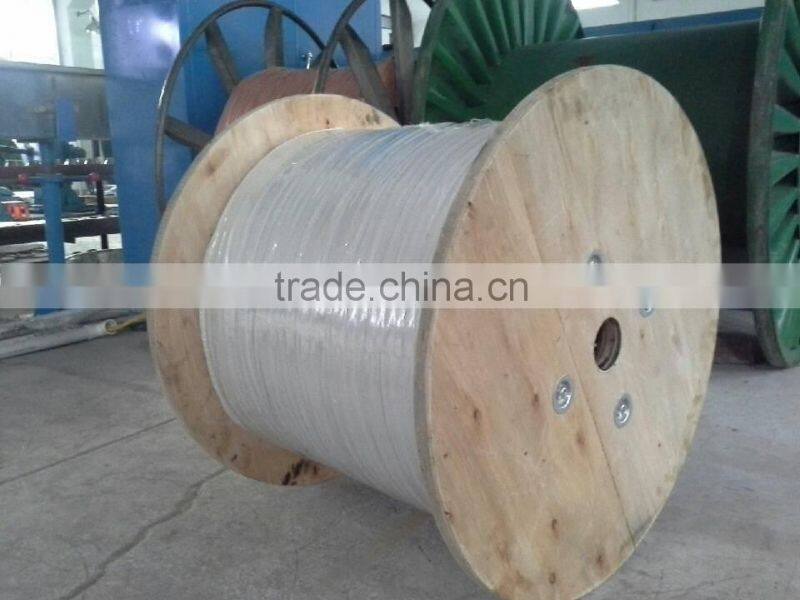

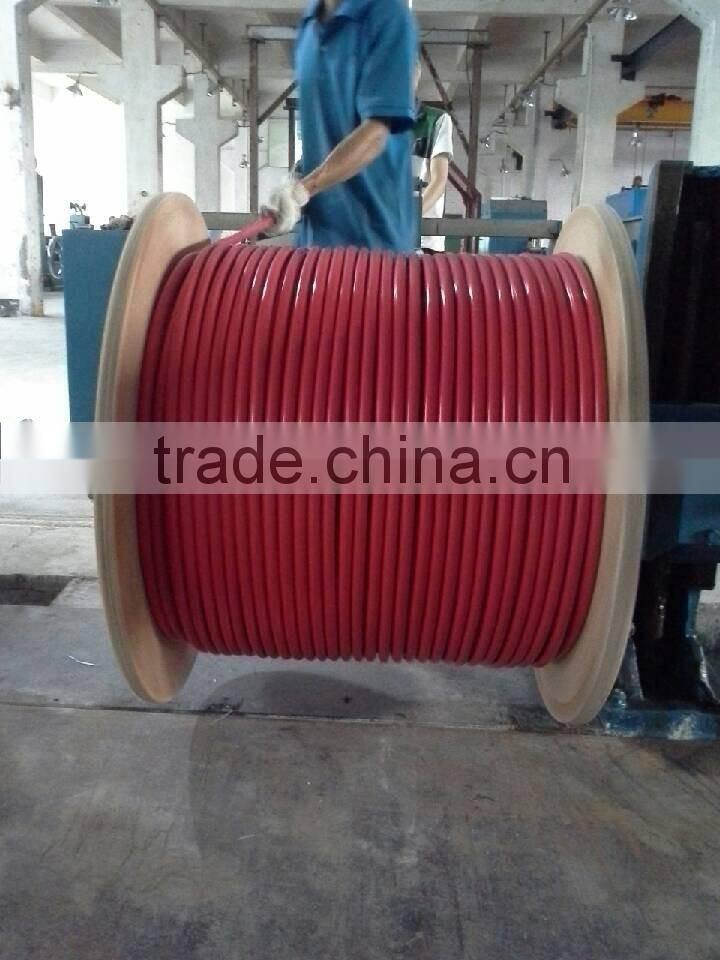

THE PACKED BY DRUM
CABLE DATA
ANY QUERY, PLEASE FEEL FREE TO CONTACT US ANY TIME
