Pi type marine rubber fender
- 3000 Unit / Units per Month
- T/T
You May Like
Product Description
Pi type marine rubber fender
Description:
Pi type marine rubber fender is the most effective and efficient open-leg fender in the global market with a design deflection of 60%. It features a range of sizes from 600H to 2500H.
Feature
1 PI marine fender is larger rated compression, higher energy absorb.Fender energy
absorption raise 10% or so than super arch type rubber fender.
2 PI marine fender installation flexible,it can adopt crosswise, longitudinal, combination
etc style, it can meet the requirement of different docks.
3 Front panel set on front pad fender. It can lower the surface pressure of vessel side
board.
4 UHMW-PE set in front of panel, it can lower friction factor between vessel and fender,
lower the shear strength while vessel berthing, and raise utility of fender life.
5 After fender adopt combination style, slant compression performance changeable
very little.

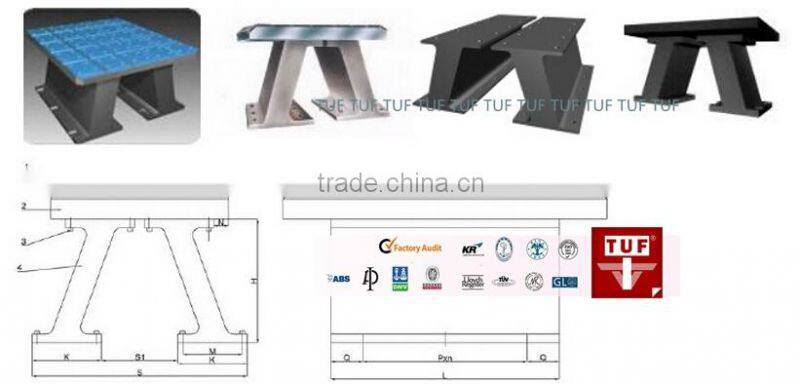

Specification:
Types | H | K | M | N | S | S1 |
PI600 | 600 | 500 | 370 | 65 | 1500 | 500 |
PI800 | 800 | 600 | 460 | 70 | 1700 | 500 |
PI1000 | 1000 | 700 | 550 | 75 | 2000 | 600 |
PI1250 | 1250 | 800 | 650 | 75 | 2450 | 850 |
PI1400 | 1400 | 900 | 730 | 85 | 2700 | 900 |
PI1700 | 1700 | 1050 | 860 | 95 | 3150 | 1050 |
PI2000 | 2000 | 1200 | 1000 | 100 | 3700 | 1300 |
PI2250 | 2250 | 1350 | 1150 | 100 | 4000 | 1300 |
PI2500 | 2500 | 1400 | 1200 | 100 | 4400 | 1600 |
