Ultrasonic Vibrating Screen for Ultrafine Powder

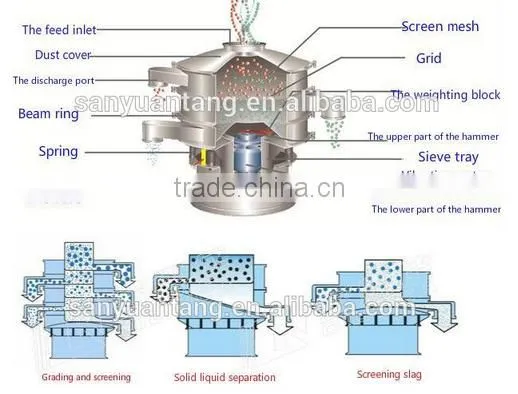

Work principle
Ultrasonic Vibrating Screens are made up of ultrasonic controller, converter and resonance loop. Electric oscillation generated by the ultrasonic controller is converted by the converter into high frequency sinusoidal longitudinal oscillatory wave, which transfers to the resonance loop and create resonance and then goes uniformly onto the screen surface. Ultrasonic vibration is added to the low frequency rotating vibration of materials on the screen mesh, preventing mesh clog and enhancing the screens productivity and quality.
Application
Ultrasonic vibrating screen is suitable for screening fine powder. It is widely used in silicon, alloy powder, tungsten powder, aluminum powder, rubbing powder etc.
Features
1. Ultrasonic self-cleaning function can prevent the sieve cloth of 50~625 mesh being plugged, and prolong the life span of sieve mesh.
2. Can exactly separate micro particles of similar size.
3. During work process,the machine temperature won't rise,suitable for sieving medicine powder and its original materials, thermosetting coatings and so on.
Technical Parameters
| Model | Power(KW) | Screen diameter(mm) | Effective surface |
| SYT400 | 0.18 | 320 | 0.0804 |
| SYT600 | 0.55 | 550 | 0.2124 |
| SYT800 | 0.75 | 750 | 0.4072 |
| SYT1000 | 1.5 | 950 | 0.6221 |
| SYT1200 | 1.75 | 1150 | 0.9331 |
| SYT1500 | 2.2 | 1450 | 1.5175 |
| SYT1800 | 3 | 1750 | 2.3634 |
