8 Bar 15 kw 20 hp Air Compressor Scroll Type Economic Kind China . 380V /50Hz

Technical Data:

8 bar 15 kw 20 hp Air Compressor Scroll Type Economic Kind China

Exhaust Volume:   2.3 M3/min ,  81.20 CFM

Enviroment Temperature  ( °C ):    -5  to 45

Exhaust Pressure(bar/psi):    8 /116

Discharge Temperature( °C ):   < Enviroment Temperature +50

Drive Method:  Direct drive

Air outlet oil content :  ≤ 3

Motor (KW/HP):  15/20

RPM (r/min):  2900

Power supply : 380V /50Hz

Main motor protection grade : IP 55

Noise( dB (A) ): 58 ± 3

Net Weight (kg): 380

Air Outlet Pipe Diameter ( Inch ): G1"

Dimension (Lx Wx H mm):  1100*700*1000

Contract Manufacturing:

OEM Service Offered

Other electricity supply can customize,such as 110V/1Phase/60hz,220V/3Phase/60Hz,415V/3Phase/50Hz etc.

Different size tank can also make to order .

Guarantee and after-sales service:

One year guarantee for the whole machine except maintenance parts

24 hours technical support by mail or call

Specific Features:

1. High-efficiency motor
IP55 motor (Class F insulation B rise) protects against dust and chemicals. Long-term stable operation even in harsh environments up to 46°C (115°F).

2. Efficient air-oil separation
Reduction of pressure drops and energy costs. Low oil consumption ensures minimal maintenance costs and long
compressor lifetime.

3. Superior air filtration
Two-stage dust removal and filtering system with efficiency of up to 99.9% even in heavy-duty environments (particles ≥ 3 micron). Protects compressor parts and components, ensures air quality and extends the service life of the overall air system.

4. Heavy-duty oil filter
Outstanding oil purification capability ensures a clean compressor oil system. High reliability of screws, bearings and gears
in harsh environments. Long service period and easy and quick filter change reduce maintenance costs.

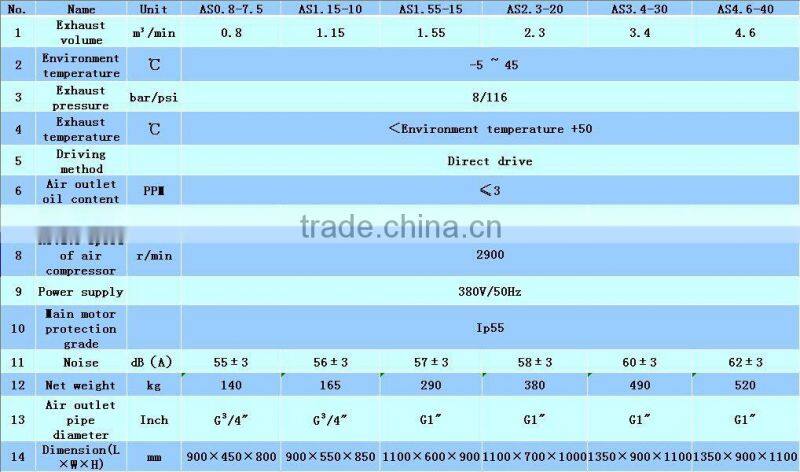

Technical data chart :
