We are the professional manufacturer of rice mill, which combines many years of practical experience with advanced technology in rice mill.Welcome to inquiry!

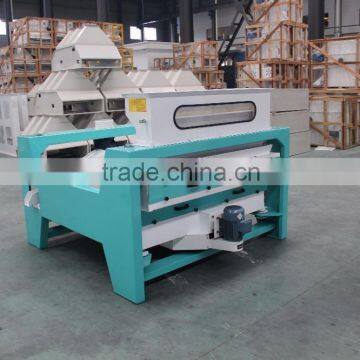

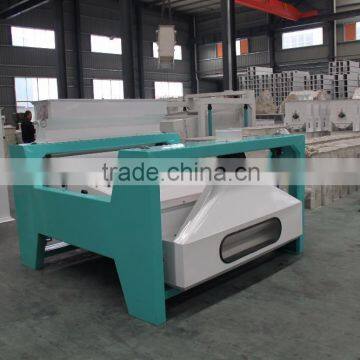

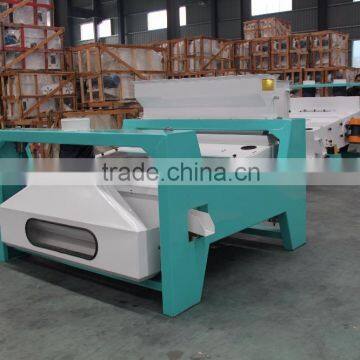

TQLM series plane revolving cleaning sieve is used for cleaning big, small and light impurity in the grain material.According to the requirement of material to be separated, this sieve can adjust its rotary speed and resultant of eccentric weight block in order to change its amplitude of vibration. So the best cleaning effect can be got. When the sieve ship is moving, three moving tracks can be formed at the same time, the forepart is oval, middle part, circle; end, like straight line reciprocation. This motion form can remove impurity quickly. The separating cover of air suction moved along with the sieve ship can separate light impurity in material. The material fed box can stabilize the flow rate of material fed into the machine and make the material in the sieve surface distribute uniformly.
1:It can remove large,middle, small and light impurities from grain simultaneously
2:Plane rotary movement has higher efficiency
3:According to different material shape size change screen hole size, low power consumption and high output.
4:By adjusting rotary speed and weight of balance block, its amplitude is changed so as to achieve the optimum cleaning effect
5:Compact construction, steady running, good cleaning effect.
Technical parameters:
| Type | TQLM100 | TQLM125 | TQLM150 | TQLM200 |
Output(t/h) |
3-6.5 |
4-8 |
6-11 |
8-15 |
Power(kw) |
0.75 |
0.75 |
1.1 |
1.1 |
|
Weight of machine (kg) |
700 |
800 |
900 |
1200 |
| Overall dimensions | 2150×1400×146 | 2150×1650×1460 | 2150×1900×1460 | 2460×2160×1470 |
We could offer our professional suggestion during assembly of the complete set project, and our overseas technical staff is available when you have problems with our rice machines.
Q1: Could u offer the complete set as customer's requirement?
Sure, we could produce the complete set as customers' requirement.
Q2: Will you make the drawings for the complete set to your customer?
Yes, we will make the drawing for the complete set once confirm price
Q3: What is your delivery time?
It is based on the customer's requirement, as usual, 20 days available
