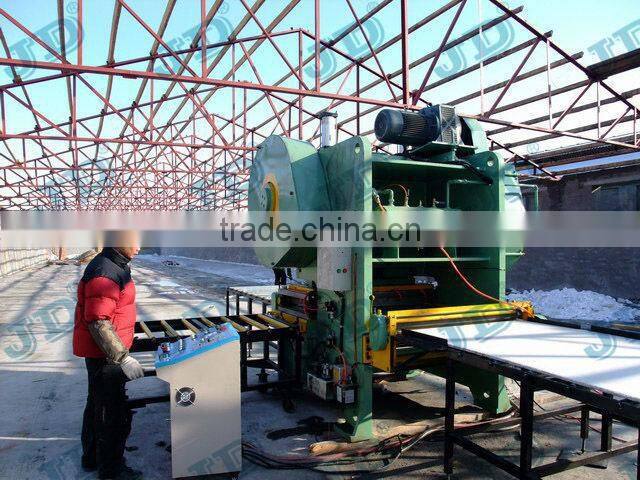

Full Automatic Gypsum board perforating machine
1-Specification of JDY25-100 Gypsum board perforating machine:
Machine type |
Perforating machine for Gypsum board, Plasterboard, MDF board, MGO board, Calcium silicate board, Ceiling board, Drywall etc. |
Slide stroke |
60mm |
Maximum mold height closed |
270mm(with slide bottom plates) |
Mold height closed adjustment |
80mm |
Number of strokes |
50 times/minute |
Slide Surface |
210X1100mm |
Working table |
300X1640mm |
Spacing of both pole |
1300mm (load the max width of gypsum board is 1200mm) |
Power of the main motor |
11KW (420V 3P 50HZ or as customized) |
Power of the servo motor |
1.5KW (220V 50-60HZ or as customized) |
Feeding accuracy |
±0.1mm |
Maximum feeding rate |
100mm |
Maximum feeding thickness |
20mm |
Gross weight of machine |
11000KG |
Overall dimensions |
2820x1700x2400mm (H *L *W) |
2-Structure and configurations of JDY25-100 perforating machine:
A:Body of the main machine tool is welded with Q235 steel plates, semi/-closed gantry structure. The machine adopts sub-audio vibration aging to eliminate stress. It has good rigidity, with good stability during operating.
B.The machine adopts two/-stage transmission structure that the motor drives the flywheel transmission and gear linkage. The gears and flywheel are fully closed, with good safety performance.
C.It used the dry-type friction clutch brake system,safety, stability, and durable.
D. Double pneumatic balance cylinders are used to protect the molds and reduce damage caused by the punching pins.
E. With oil deflector.

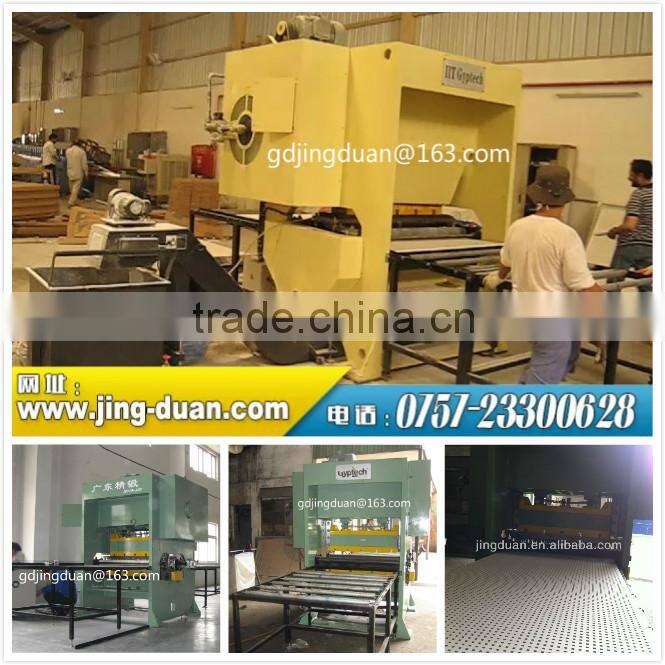

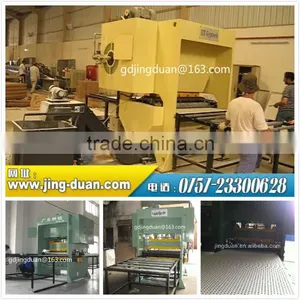

3-Some projects:

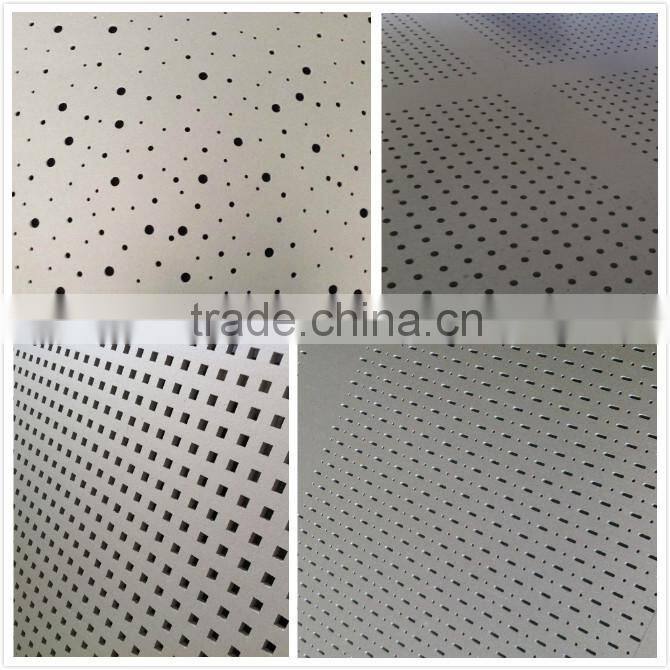

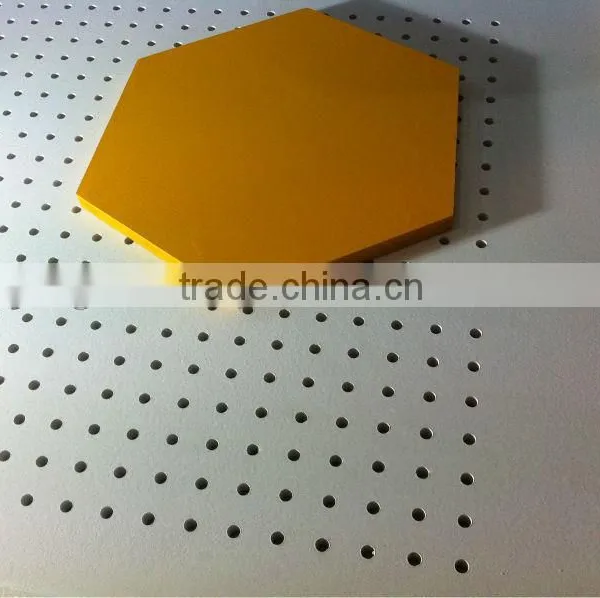

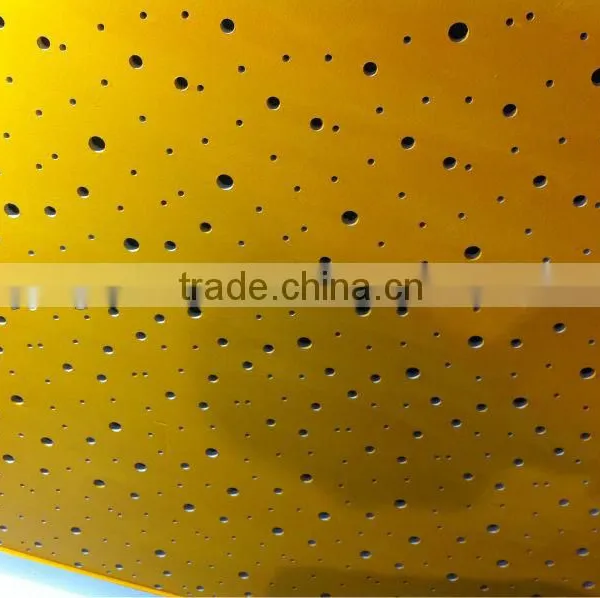

4-Various of Perforation patterns:
Perforating mold designs are as customized, And our Company also established a
punching pattern database, to provide technical support for customers.

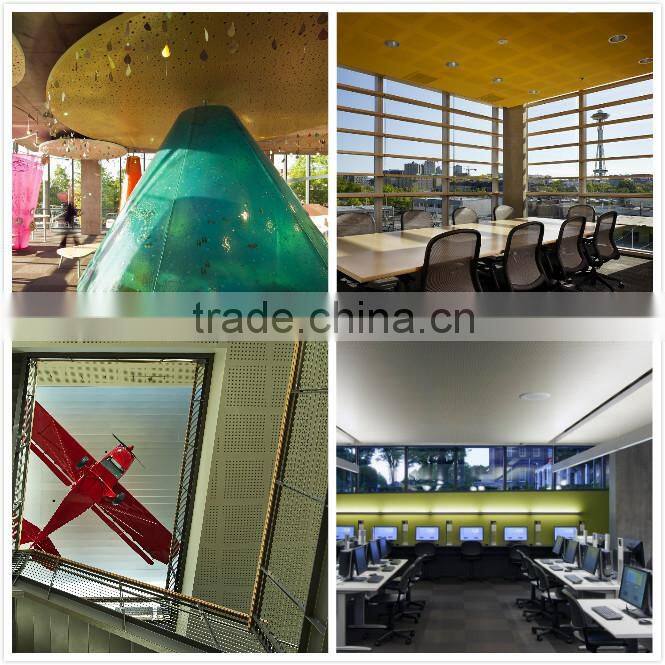

5-Application of Perforated board:
Applicable to the decoration of interior ceilings and partition walls.
Mainly used in those places with high/-grade decoration where strict acoustic
environment is crucial, such as theater, concert hall, museum, library, hearing room,
gallery, auction house, gymnasium, lecture hall, multifunctional hall, hotel lobby, hospital,
shopping mall, piano practice room, conference room, studio, recording room, KTV room,
bar, industrial workshop, machine room, etc.

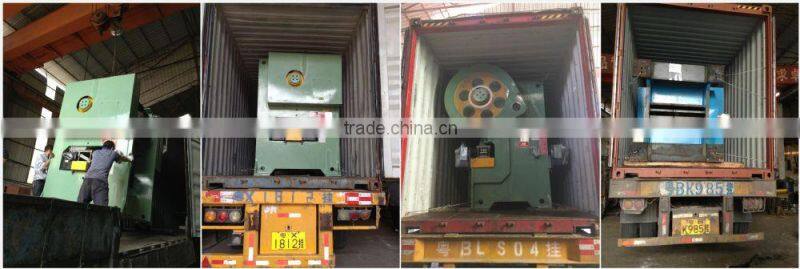

6-Loading:
7-Foreign customers:
8-The advantage and Patent technology:
FOSHAN JINGDUAN MACHINERY MANUFACTURE CO.,LTD is the
developer and only one manufacture of big size(1220*2440mm)Gypsum board perforating machine in China.
We offered the Gypsum board perforating machine for 80%-90% manufactures of perforated gypsum board in China.
