Aluminum Ceiling Tile hole punching machine
SPECIFICATION:
1. Materials: Filmed Pre-Painted / Plain Aluminum Coil
2. Coil Thickness: 0.5 – 0.1 mm
3. Tile Size: According to the actual use (max width:800mm)
4. Tile Perforated Hole Size:1.8 mm-2.5mm diameters, or customized available
5. Tile Forming Pattern: Lay-In Design or customized available

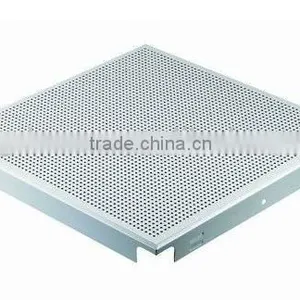

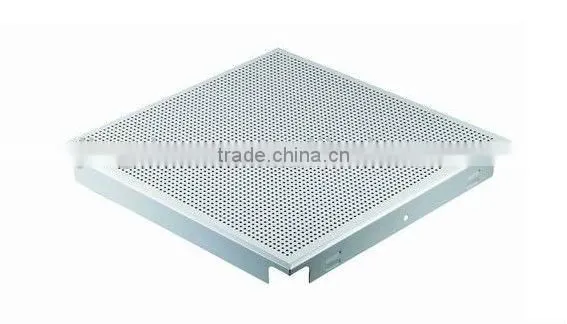

6. Tile specification: 600x600mm, 595x595mm or same as drawing
7. Production Capacity: 3-4 Pieces / Minute, up to Perforation Design
WORKING PROCEDURE:
1. Auto Operation: alu. material coil - loading platform - perforating – feeding – cutting – conveying – leveling – conveying – lay-in notching – conveying – storing – finished perforated & notched sheet
COMPOSITION:
1. Decoiler

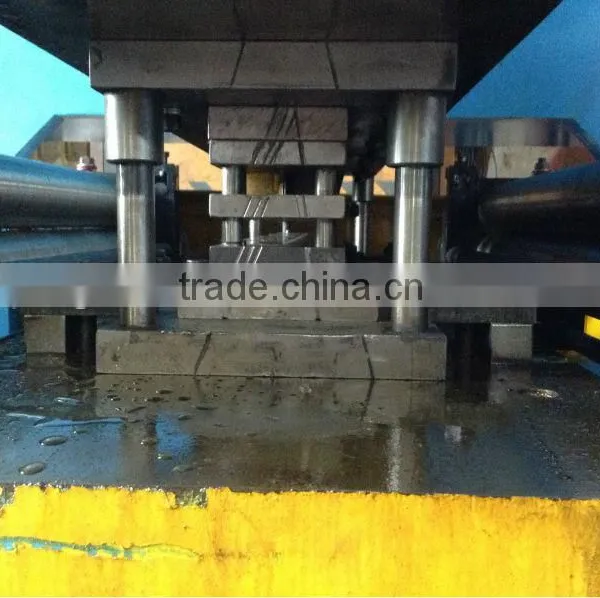

2. Perforation power press
3. Leveling
4. Corner cutting punching machine
5. Hydraulic press for forming
6. Cut to length machine
7. Sheet conveyor
8. PLC controller with servo system

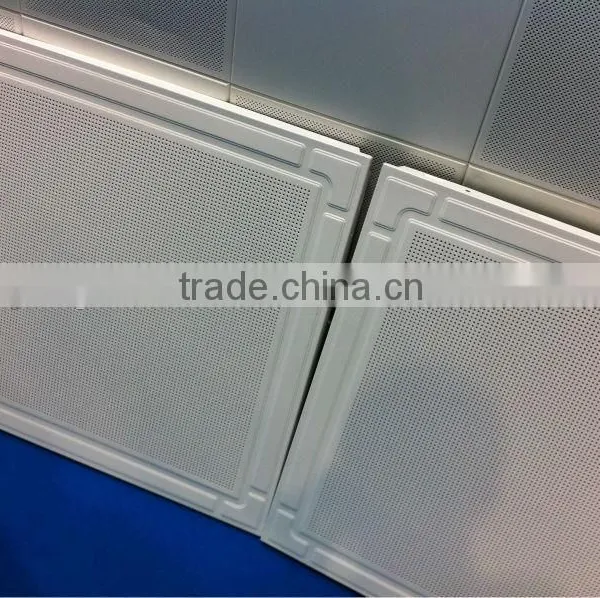

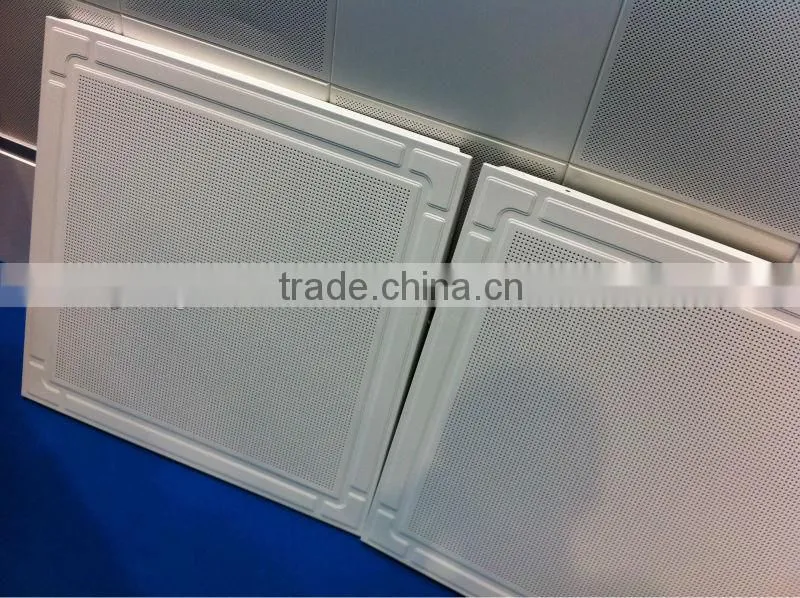

Good effection for perforating: the holes are Smooth, clean, burr, and vertical.
We are sincerely invite you to our factory, and we can take you to go and see those nearby to use our equipment manufacturers.
FOSHAN JINGDUAN MACHINERY MANUFACTURE CO.,LTD is the first and only one manufacture of Gypsum board,Cement board perforating machine in China.

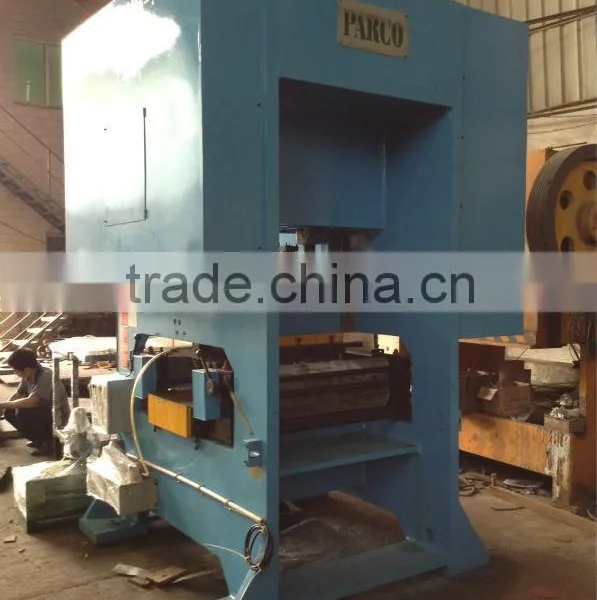

Common punching press
Perforating machine for Gypsum board, Fiber cement board, Calcium silicate board and other building materials
Full automatic metal perforating production line

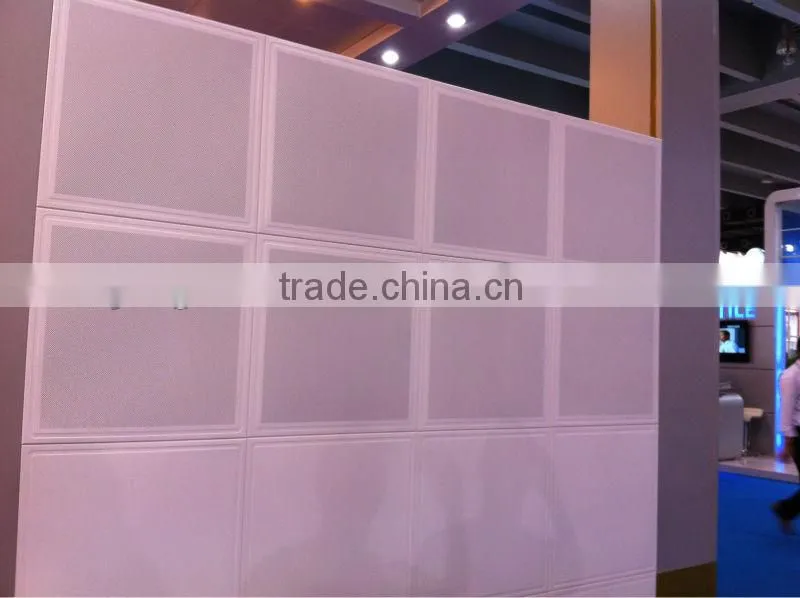

Some project cases

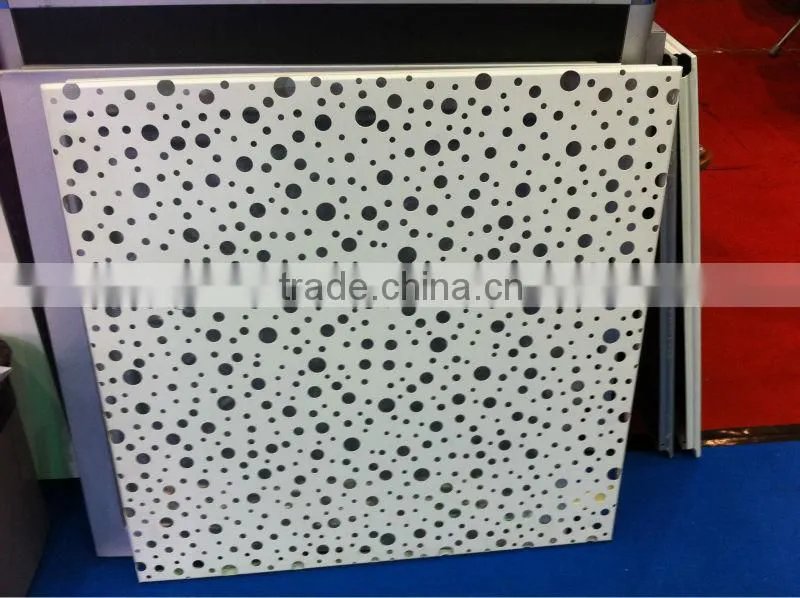

Perfoating effection
Foreigner customers visit our factory
Loading containers
