JS21-25T Open-type Deep Throat Punch Press Machine

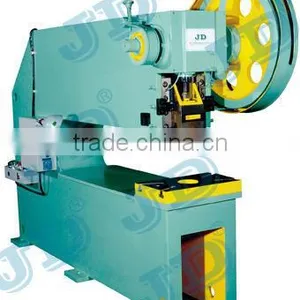

JS21-25T Open-type Deep Throat Punch Press Machine thumbnail-1

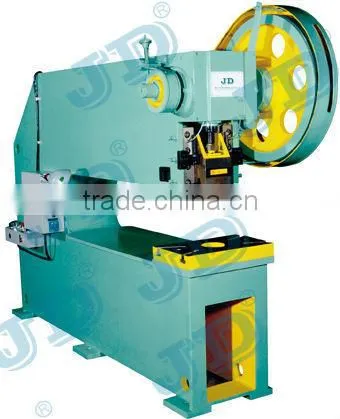

JS21-25T Open-type Deep Throat Punch Press Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Power Source:
Mechanical
Contact Supplier Request Quote Chat Now
Foshan Shunde Jingduan Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shunde Guangzhou Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not Normal
Power Source Mechanical
Place of Origin Guangdong, China
Brand Name JD
Model Number JS21-25T
Voltage 220V,380V,440V
Power(W) 2.2kw
Weight 1100kgs
Dimension(L*W*H) 1500x820x2100mm
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

JS21-25T Open-type deep throat punch press machine
has deep throat and large working space,applicable for punching wide plate.

JS21-25T Open-type deep throat punch press machine





Characteristics of JS21 Series Punching Machine
1. Our JS21 series punching machine adopts special integrated cast iron alloy, with high rigidity and shock resistance;
2. Slider: long guide way design, with slider balance device, to ensure the operation precision and stability;
3. All anti-wear components are connected electronic timing automatic lubrication system (in the case of lack of lubricant, pressing machine will be automatically and completely shut off);
4. Advanced, simple control system to ensure the accuracy of slider running and stopping.


Advantages of JS21 Series Punching Machine
1. Balanced center of grivity:
(a). Transmission center and the whole machine centers tend to be consistent, to assure the stamping precision and stability.
(b). This machine adopts the two slider balancers to ensure that the machine keeps balanced operation.




2. Reliable and safe operation:
The highly sensitive clutch / brake device, coupled with top international double solenoid and overload protection devices, assures the accuracy and security of sliders running and stopping in the pressing machine.




3. Slider adjusting mechanism:
Adjustment precision is up to 0.1mm, to deliver a safer and quicker production adjustment.




4. High precision:
Parts like crankshaft, gears and gear shaft, subject to friction have been through hardened heat treatment before grinding processing, to deliver high wear-resistance, balance and stable performance.

5. Automation and labor saving:
JS21 series punching machine can work with any automatic feeder, to deliver automated production, thus to reduce costs and improve efficiency.


JS23,JS21 Special Deep Throat open pressure machine parameter list
Technical Parameter Model Deep Throat
JA23-12 JA23-16 JA23-25 JS21-25 JS21-30 JS21-40 J21-40 JS21-63 JS21-125
Nominal capacity KN 120 160 250 250 300 400 400 630 1250
Length of stroke mm 50 56 60 60 70 90 90 120 140
Strokes times/min 150 138 120 120 120 65 65 50 45
Max mold height min 150 180 200 200 200 230 230 260 280
Slide adjustment degree 30 30 35 35 45 50 50 50 100
Max inclination ofmain frame mm 20 20 20 / / / / / /
Bolster area
 		 Fb mm 220 260 310 310 350 420 420 510 1080
Lr mm 370 390 490 490 560 670 670 780 710
punch table mm 100 125x140 95x155 95x155 140x160 200x200 200x200 245x270 350
Slide Surface Fb mm 120 130 140 140 140 176 176 220 360
Lr mm 120 140 150 150 170 210 210 270 480
Shank hole Dia mm 30 30 40 40 40 42 42 50 60
Deep mm 45 50 50 50 50 70 70 70 80
Depht of throat mm 300 400 320 1250 500 680 1250 700 500/700
Distance of both pole mm 160 185 180 / 200 250 / 300 680
Overall dimensions Lr mm 1200 1300 1500 1500 1600 1750 3000 2000 2600
Fb mm 600 730 820 820 900 1100 1100 1300 1800
H mm 1500 1700 1850 2100 2000 2300 2200 2500 3500
Motor Power KW 1.1 1.1 2.2 2.2 2.2 4 4 5.5 11
rpm r/min 1440 940 1440 940 1440 1440 1440 1440 1440
winght kg 650 800 1100 4000 1700 3200 6100 6000 12000

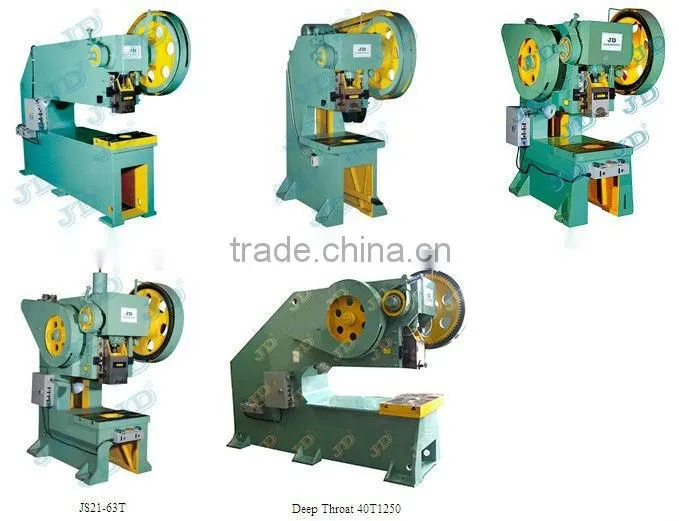

JS21-25T Open-type deep throat punch press machine

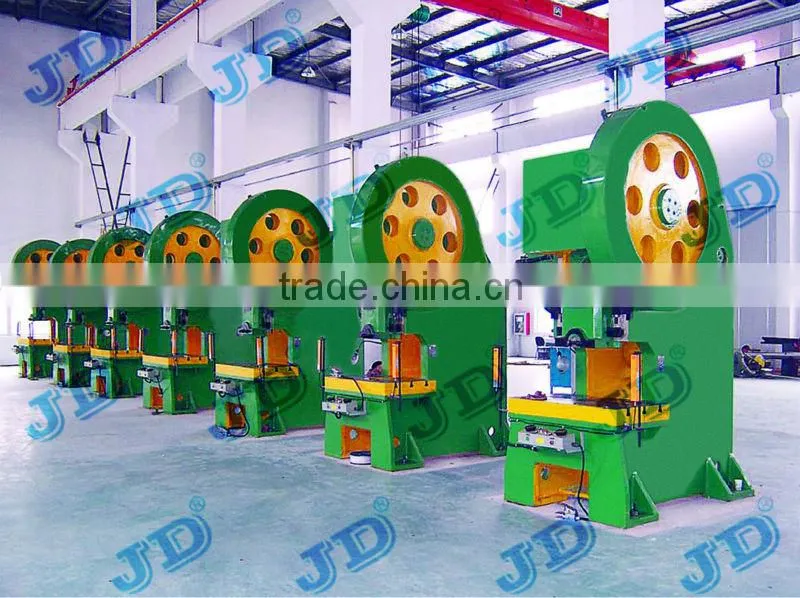

JS21-25T Open-type deep throat punch press machine
