Home > Manufacturing & Processing Machinery > Machine Tools > Punching Machine > J21-80T Deep Drawing Pressure Machine

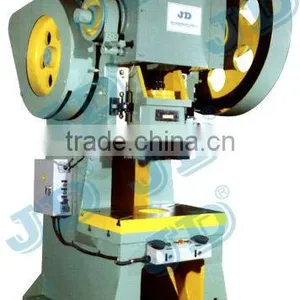

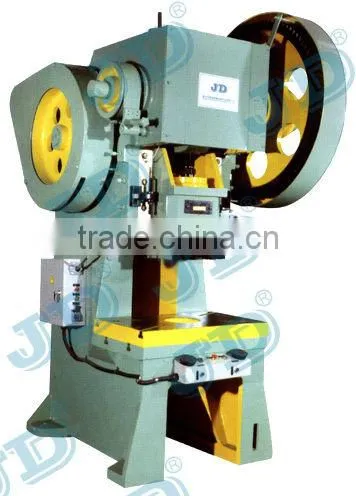

J21-80T Deep Drawing Pressure Machine

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

CNC or Not:

Normal

Power Source:

Mechanical

Foshan Shunde Jingduan Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shunde Guangzhou Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not Normal

Power Source Mechanical

Place of Origin Guangdong, China

Brand Name JD

Model Number J21-80T

Voltage 220V,380V,440V

Power(W) 7.5 KW

Weight 1440 KGS

Dimension(L*W*H) 340x900x1500MM

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

J21-80T deep drawing pressure machine
1-capacity: 800KN (63T)
2-strokes: 260 S.P.M
3-depth of throat: 70 mm

J21-80T deep drawing pressure machine

Main Features and Function:

Cast and inclinable frame, ageing treatment, high rigidity, stable precision;

Crossed crankshaft, V-type guides of the slide realize high accuracy guidance;

Punching press with turn-key and rigid clutch, with flexible movement and reliable performance

Press-collapse block device ensures safety in press operation

Optional photoelectric protector, feeder and other optional accessories are available for safety & high- efficiency production line

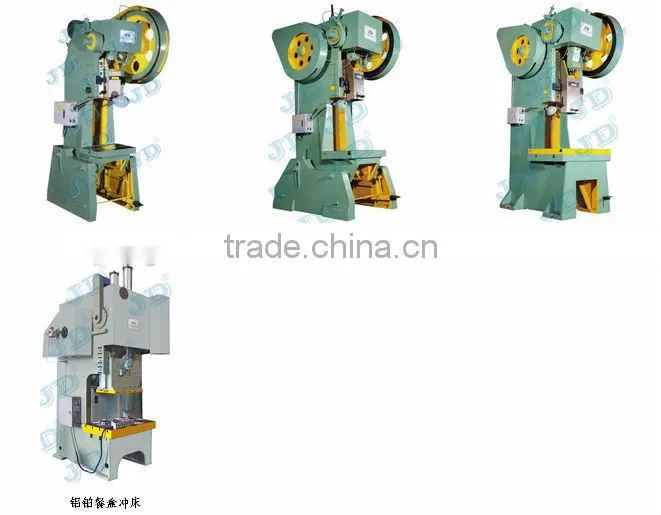

JA23,JA21, J21 series also including 25Ton,45Ton,63Ton,80Ton,100Ton

JA23,J21 Speciall deep drawing open pressure machiine parameter list

Technical Parameter		Model	deep drawing ( open pressure)
Nominal capacity		KN	JA23-25	JA23-45	JA21-63	J21-80	J21-100
Length of stroke		mm	250	450	630	800	1000
Strokes		times/min	160	220	260	260	250
Max mold height		min	120	40	42	35	35
Slide adjustment		degree	370	450	460	410	390
Max inclination ofmain frame		mm	20	20	/	/	/
Bolster area	Fb	mm	20	220	20	20	20
	Lr	mm	310	480	710	590	720
	punch table	mm	490	700	930	920	1080
Slide Surface	Fb	mm	130x130	230	200	400x400	420x520
Slide Surface	Lr	mm	140	176	255	335	360
Shank hole	Dia	mm	150	210	280	400	480
Shank hole	Deep	mm	40	42	50	60	60
Depht of throat		mm	50	70	70	70	80
Distance of both pole		mm	170	230	350	310	380
Overall dimensions	Lr	mm	180	250	300	340	460
	Fb	mm	1300	1700	1700	1900	2500
	H	mm	750	1300	1400	1500	1800
Motor	Power	KW	2300	2900	3100	3450	3600
Motor	rpm	r/min	2.2	4	5.5	7.5	11
winght		kg	1440	1440	1440	1440	1440
