Stainless Steel Sheet CNC Perforating Machine
- Foshan Guangzhou or Shenzen
- T/T
You May Like
Product Details
| Condition | New | CNC or Not | CNC | |
| Power Source | Mechanical | Place of Origin | Guangdong, China | |
| Brand Name | JD | Model Number | 100T,120T, 160T,200T | |
| Voltage | 440V,380V or as require. | Power(W) | 22KW | |
| Weight | 17500 | Dimension(L*W*H) | 1910x2620x3000mm | |
| Certification | CE | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
stainless steel sheet CNC perforating machine

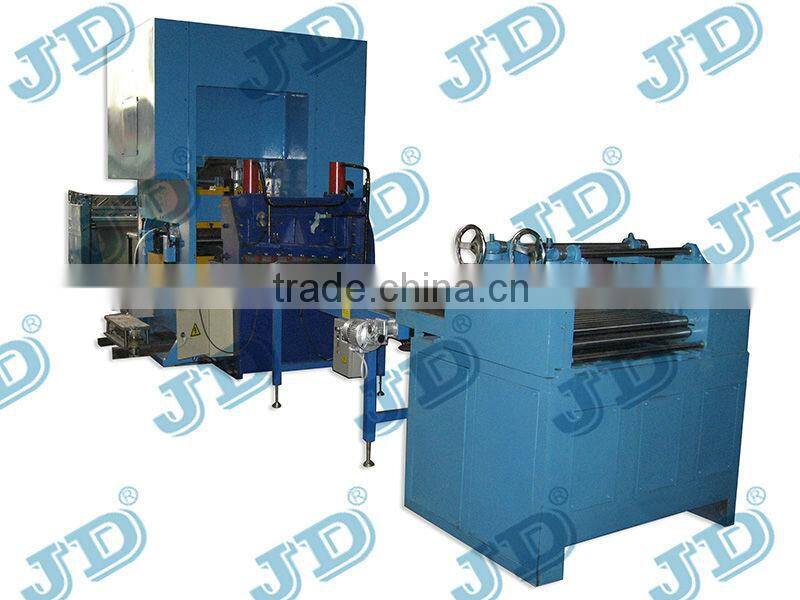

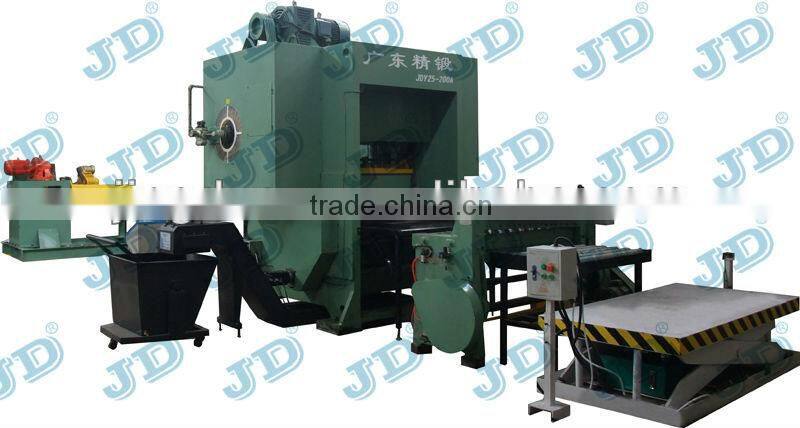

The Automatic sheet metal perforating production line is including:
Main Perforating machine:JDY25-160F
Perforating mold
- Automatic perforation mold
Mechanical shearing machine
- Leveling machine
- Waste collection machine
Advantage:
- This Automatic perforating production line is working by PLC control system,servo motor,inverter,sensors, to control the working speed.
Precise control the production line:STAR-RUNING-STOP.
The automatic perforating production line developed by JINGDUAN MACHINERY MANUFACTURE,to achieve the ceiling production automation, reduce the production workers, reduce production costs and ensure the quality, improve labor productivity.
The production line is simply operation, easy maintenance, high degree of automation, suitable for domestic and foreign enterprises to perforate ceilings.

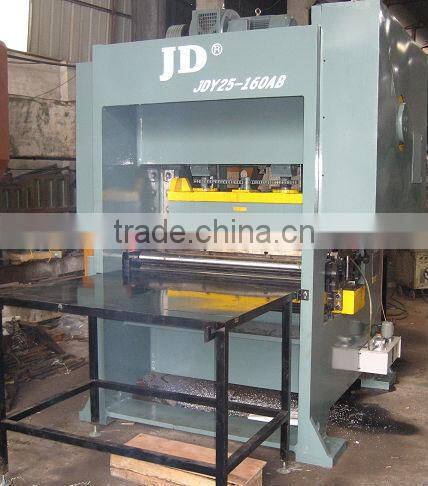

1-Main Perforating machine:JDY25-160F
A.Length of stroke:30mm |
B.The maximum height closed:270mm |
C.Height control:50mm |
D.Strokes:50-100 times/min |
E.Slider area:210x1100mm |
F.Working table size:350x1640mm |
G.Distance of both pole:1300mm |
(Workable for Steel coils or sheets width: 1,220mm Max.) |
H.Main motor:15 KW (440V 3P 50HZ);Servo motor:1.5KW |
I.Feeding definition:±0.1mm |
J.Max feeding quantity:50mm |
K.Steel coils or sheets thickness Max. :2mm |
L.Gross weight of JDH25-160E:14000KG |
Overall dimensions:3000x1910x2620mm (H x L x W) |
2-Perforating mold
Punching pin material:Japaniese SKD11 |
Mold material:International CR12 |
Perforation pattern: customized. |

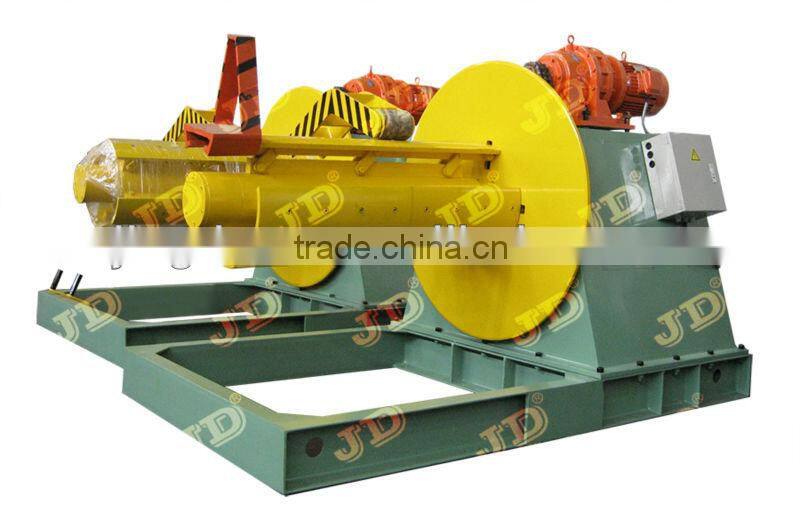

3- Automatic Decoiler
Automatic feeding according to the perforating speed |
A.Max width of coil material could be loaded:1200mm |
B.The inner diameter : 450-530mm (should be confirmed this size) |
The max outer diameter : 1200mm |
C.Maximum thickness of coil material could be loaded: 2mm |
D.Maximum weight loading:10000kg |
E.Feeding speed:3.5m/min |
F.Main motor power:3KW |
G.Manual dilator |

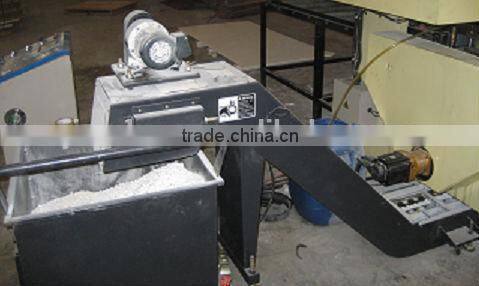

4-Waste collection machine

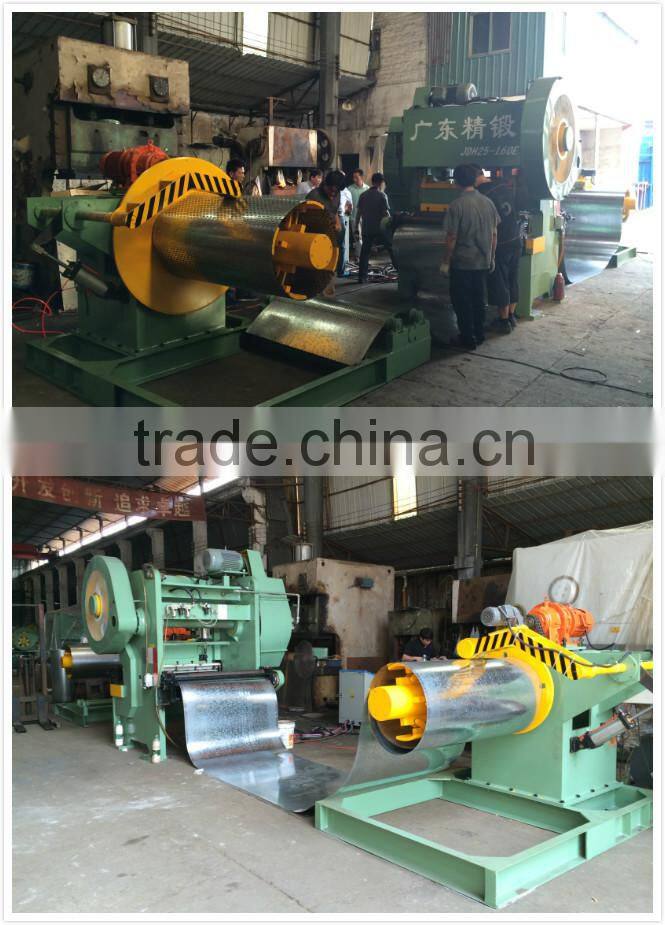

Related case:
FOSHAN JINGDUAN MACHINERY MANUFACTURE CO.,LTD is the professional perforating machine manufacture of Metal, Gypsum board,Cement board perforating machine in China.

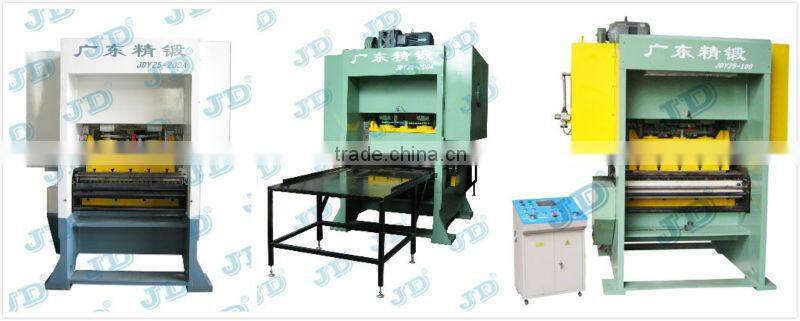

Perforating machine for Gypsum board, Fiber cement board, Calcium silicate board and other building materials
Foreigner customers visit our factory
