Stainless steel hole perforating machine
1-Main Perforating machine:JDY25-160F
A.Length of stroke:30mm |
B.The maximum height closed:270mm |
C.Height control:50mm |
D.Strokes:50-100 times/min |
E.Slider area:210x1100mm |
F.Working table size:350x1640mm |
G.Distance of both pole:1300mm |
(Workable for Steel coils or sheets width: 1,220mm Max.) |
H.Main motor:15 KW (440V 3P 50HZ);Servo motor:1.5KW |
I.Feeding definition:±0.1mm |
J.Max feeding quantity:50mm |
K.Steel coils or sheets thickness Max. :2mm |
L.Gross weight of JDH25-160E:14000KG |
Overall dimensions:3000x1910x2620mm (H x L x W) |
2-Perforating mold
Punching pin material:Japaniese SKD11 |
Mold material:International CR12 |
Perforation pattern: customized. |
3- Automatic Decoiler
Automatic feeding according to the perforating speed |
A.Max width of coil material could be loaded:1200mm |
B.The inner diameter : 450-530mm (should be confirmed this size) |
The max outer diameter : 1200mm |
C.Maximum thickness of coil material could be loaded: 2mm |
D.Maximum weight loading:10000kg |
E.Feeding speed:3.5m/min |
F.Main motor power:3KW |
G.Manual dilator |

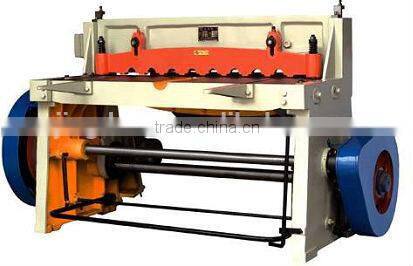

4-Mechanical shearing machine
(linkage perforating machine,automatic shearing.) |
A.Maximum thickness for shearing:0.5-3mm steel sheet |
B.Maximum width for shearing:1300mm |
C.Strokes: 56 times/min |
D.Backgauge range:0-350mm |
E.Motor power: 2.2 KW |
F.Gross weight: 1380kgs |
G.Overall dimensions:2100x1200x1200mm (L x W x H) |

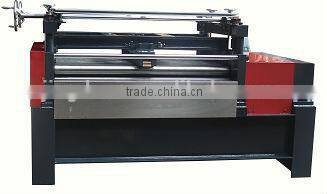

5-Leveling machine
A.Straightener for steel thickness:0.5-1mm |
B.φ45X21 leveling rollers |
C.Steel width for leveling: 1300mm |
D.Leveling speed can be adjusted |
E.Adjust the height manually |
F.4axis drive |
G.Motor power:4 KW |

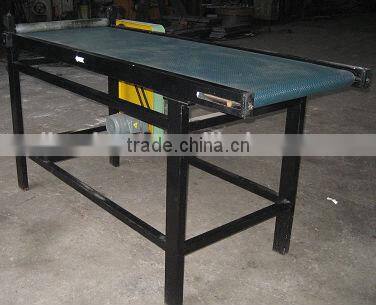

H.Provide with a belt conveyor,size:1350x3000mm,install it before leveling.Motor power:400W.
I.Hydraulic automatic lift table,size:1220x2400mm,install it after leveling.
6-Waste collection machine

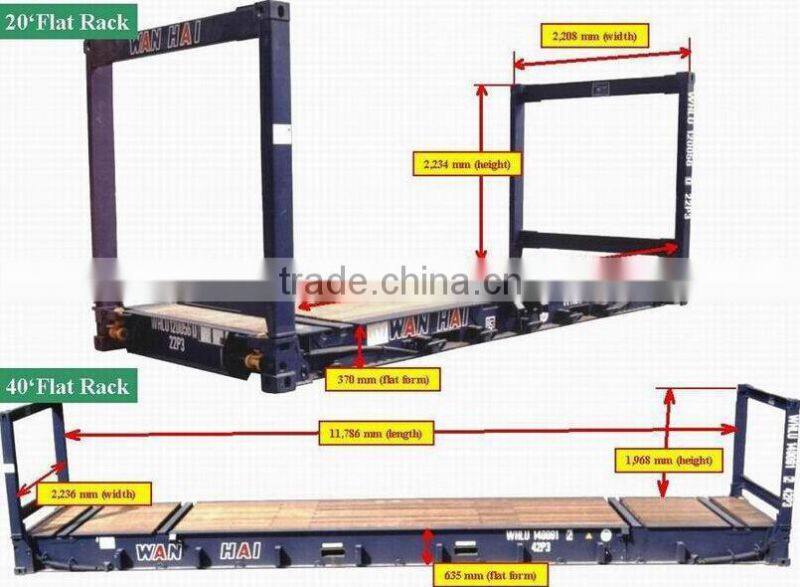

Estimate loading with 1x40'Flat rack:
Related case:
