Help CenterProduct Description Polycarbonate Twin-wall Sheet Product Standard & Technical Parameters Product Standard Conventional Col
Related Products
-
Polycarbonate Swimming Pool Glass Cover Hollow Polycarbonate SheetUS$ 2 - 6MOQ: 50 Kilograms -
4mm / 6mm / 8mm / 10mm Green House Twin Wall Hollow Polycarbonate SheetUS$ 2 - 6MOQ: 50 Kilograms
-
Baoguang Bayer Raw Material Hollow Polycarbonate Sheet for GreenhouseUS$ 2 - 6MOQ: 50 Kilograms
-
New Products 2016 Triple Walls Multi-walls Soft Textile Polycarbonate Hollow Sheet PriceUS$ 2 - 6MOQ: 50 Kilograms
-
10 Years Gurantee With UV Finish 4mm 6mm 8mm 10mm 12mm 2 Layers PolycarbonateUS$ 2 - 6MOQ: 50 Kilograms
Twin wall polycarbonate sheet, Triple wall polycarbonate sheet , Four wall polycarbonate sheet ,Crystal
polycarbonate sheet , Honyecombpolycarbonate sheet , Solid polycarbonate sheet , Flat Solid PC sheet , Embossed polycarbonate sheet , Frost polycarbonate sheet , Printed polycarbonate sheet , Light difficult polycarbonate sheet ,Solid corrugated polycarbonate sheet ,Hollow corrugated polycarbonate sheet ,U Lock polycarbonate sheet,Greenhouse polycarbonate sheet ,PC roofing sheet ,PC skylight sheet and so on .....
Our customers from different countries . Now we are ready to research PC Sheet different effect than before, such as to avoid pests, To strong growth and to improve Crop production to meet different customers’ request.
OUR ADVANTAGES
♦ Factory covers 20,000 square meters
♦ 10 extrusion production lines
♦ Product sructure design capability
♦ CAD / CAM
♦ Provide sample
♦ Independent mould design capability
♦ Commissioning production capacity
♦ Rich stocks
♦ Materials development
♦ Quality Control by 24 hours
Polycarbonate twin-wall sheet Product Standard & Technical Parameters
Product Standard
Conventional Color : transparent, , green, blue, Lake-blue, opal, bronze(brown), red , etc.
| Thickness(mm) | Weight(kg/m2) | Minimunbending radius(mm) | Minimun span | Transparency(%) | Sound insulation(db) |
| 4 | 0.9 | 700 | 1500 | 83 | 14 |
| 6 | 1.3 | 1050 | 2000 | 82 | 17 |
| 8 | 1.5 | 1400 | 2700 | 81 | 18 |
| 10 | 1.7 | 1750 | 3300 | 79 | 19 |
| 12 | 1.9 | 2100 | 3600 | 76 | 20 |
Technical Parameters
| Impact strength | Transparency | Specific grevity | Coefficient of thermal expansion | Service temperature | Heat conductivity |
| 2.1j/m-2.3j/m | 40%-80% | 1.2g/cm³ | 0.065mm/m°C | -40°C—120°C | 3.0-3.9w/m²°C |
| Tensile strength | Flexural strength | Modulus of elasticity | Effect of sound insulation | Tensile stress at break | Elongation at break |
| ≥60N/mm | 100N/mm² | 2400Mpa | 10mm two laminates reduced 10db | ≥65Mpa | >100% |
PC HOLLOW SHEET PRODUCT SHOW

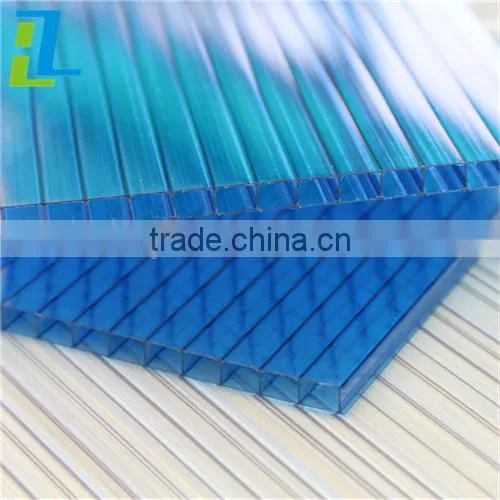

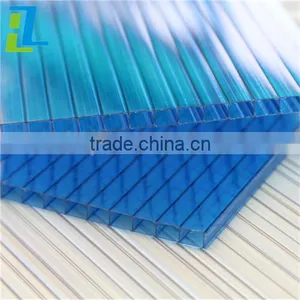

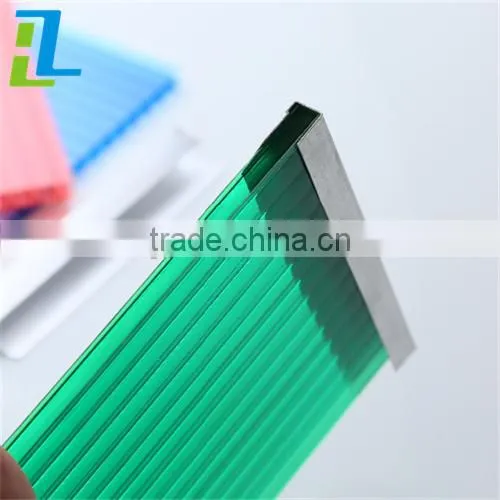

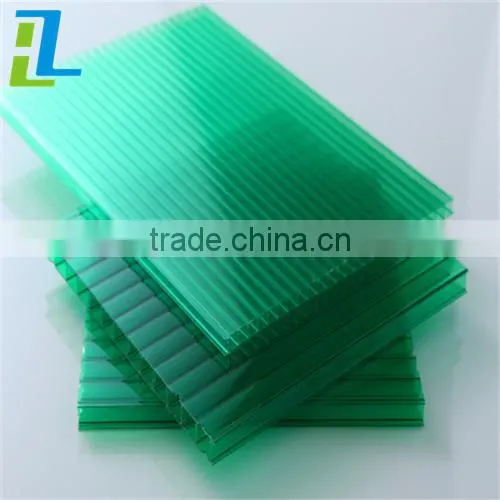

Twin Wall Hollow PC Sheet
1. Generally we use PE package or stretch film to wrap each acrylic tube, then put in wooden box for shipping. We use high quality wooden box, try to reduce the damage in transportation.
2. FedEx/DHL/UPS/TNT for free samples, you only pay the express cost .
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-7 days for samples; 7-15 days for batch goods.
High way sound barier
Skylight
