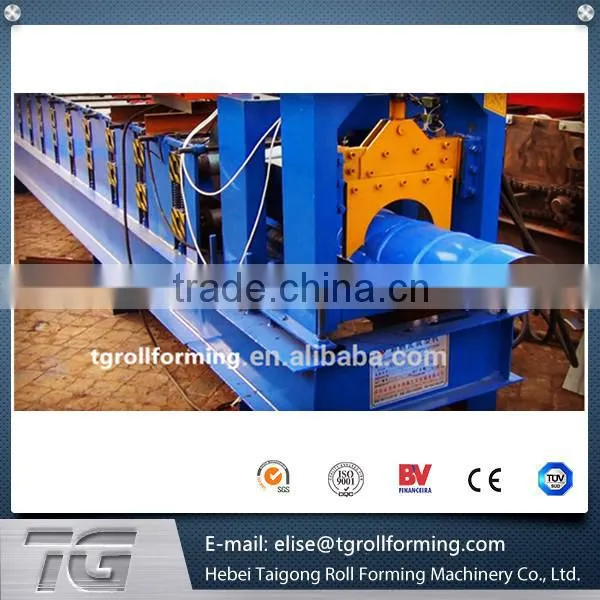

brilliant quality metal ridge cap making machine with high graded superiority
- 30 Set / Sets per Month
- Tianjin
- T/T L/C D/P D/A Credit Card PayPal
- Power module Positive + Negative Electric Board Card for Thermatool High Frequency Welder
- Spiral Welded Pipe Tube Machine Line
- HF Welded Carbon Steel Furniture Pipe Making Machine
- Carbon Steel GI ERW Profile Shape Making Machine
- Black Tube Former Machinery HF Square Pipe Forming Machine
- HF Welded Straight Seam Metal Tube Production Line
Product Details
Condition: | New | Type: | Cold Rolling Mill | Place of Origin: | Hebei, China |
Brand Name: | Taigong | Model Number: | TG-ridge cap | Voltage: | 220v-380v-440v |
Power(W): | 22kw-1000kw | Dimension(L*W*H): | 1.6m x 1.55m x 1.4m | Weight: | 0-12tons |
Certification: | ISO9001 | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Equipment Description
1. Equipment technical specification
Description | ||
Product Name | Roof Ridge Tile Forming Machine | |
Machine Size | 5500mm*1000mm*1200mm | |
Machine Weight | About 2.8 T | |
Frame Materials | 300H steel | |
Middle plate thickness | 12mm | |
Forming Shaft | Diameter | 75mm |
Material | 40r modulation processing. | |
Forming roller | Cr12 vocuum quenching process, the hardess reached HCR58-62 | |
Cutting System | Hydraulic Cutting Cutting blade heat treatment: HRC58°-60° | |
Drive mode | 1 inch sprocket, chain | |
Main Engine power | 3 KW with cycloidal reducer | |
Pump Station Motor | 3KW | |
Forming Rows | 10 rows | |
Forming Speed | 8-10m/min | |
Pressing Thickness | 0.5mm | |
Pressing width | 1000mm | |
Electric Control System | SIEMENS/ Schneider | |
Transducer | SIEMENS | |
Coder | Wuxi "rip" or "Xin Ya" | |
Switch | " CHINT "or" delixi" |
Equipment for Reference:
2. More details
(1) Hydraulic Ue-coiler
Un-power: manual de-coiler; Max. Capacity: 7T
Suit for coil inner diameter: 508mm, suitable coil Max. out diameter: 1000mm
Manual power expands the coil inner surface.
(2) Hydraulic Cutting
1) Adopts post cutting, Stop to cut;
2) The cutting blade material is Cr12 with quenched treatment.
3) Adopts welded frame for good rigidity.
4) Cutting frame has been heat treatment to avoid final product deformation. cutting length tolerance ±2mm.
5) The power of cutting is provided by hydraulic station.
6) The final product can be cut as per set length in PLC controller, and the length is automatically measured by encoder. When final product reaches the set length, machine will stop to cut the Product automatically. Finish this action, machine will run again continuously.
(3) Hydraulic station
1) It supplies the power for the hydraulic cutter.
2) All hydraulic accessories are all use Chinese famous brand products.
4) Hydraulic motor power: 4KW
(4) PLC Control System
1) This system uses Delta PLC to control the all working actions. Production quantity and each piece length will be automatically measured. It is convenient to control the roll forming machine.
2) Delta converter adjusts speed technology, realize the automatic production.
3) Text screen is input and cancelled the working data.
4) Friendly man-machine interface system can be set batches to the work piece, length, quantity, etc.
5) Encoder count, having function of count and measuring length.
6) Suitable power voltage: 380V/50HZ/3Phase (can de designed according to buyer’s requirement)
3. Company Information:
4. Payment terms and after-sale service:
1) FOB Tianjin
2) Payment: 30% T/T deposit, and pay the balance before shipping.
3) Delivery time: 30 working days.
4) Guarantee period: 12 months limited warranty starting from date of delivery. Shipping cost for parts to be replaced during warranty period have to be borne by the customer.
5) Spare parts: bearings, buttons, chains, magnetic valve, protective tube etc.
6) Installation and training:
1. If buyers visit our factory and check the machine, we will teach you how to install and us the machine, and also train your workers/technician face to face.
2. Without visiting, we will send you user manual and CD to teach you to install and operate.
3. COST OF INSTALLATION:
The buyer should pay the installation charges (USD 80 one man one day). To the seller’s appointed account by T/T before the seller’s technicians go to the buyer’s factory. The buyer pays the seller’s technicians travel cost outside China, including round air tickets fee, accommodation and food, provide transportation from living hotel to the work place, necessary communication, and insurance, etc.
If you have any further question of our equipment, please feel free to contact me, thanks!
