Metal Roof Ridge Cap Roll Forming Machine
- 30 Set / Sets per Month
- Tianjin
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Type: | Tile Forming Machine | Tile Type: | Steel |
Use: | Other, Floor,Roof,Wall,Step. | Production Capacity: | 8-12m/min | Place of Origin: | Hebei, China |
Brand Name: | TG | Model Number: | HKY Roof Panel Roll Forming Machine | Power(W): | 5.5KW |
Voltage: | 380V 50Hz 3phases | Dimension(L*W*H): | 5m*1.3m*1.3m-15m*1.3m*1.4m | Weight: | 4.5T |
Certification: | ISO | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

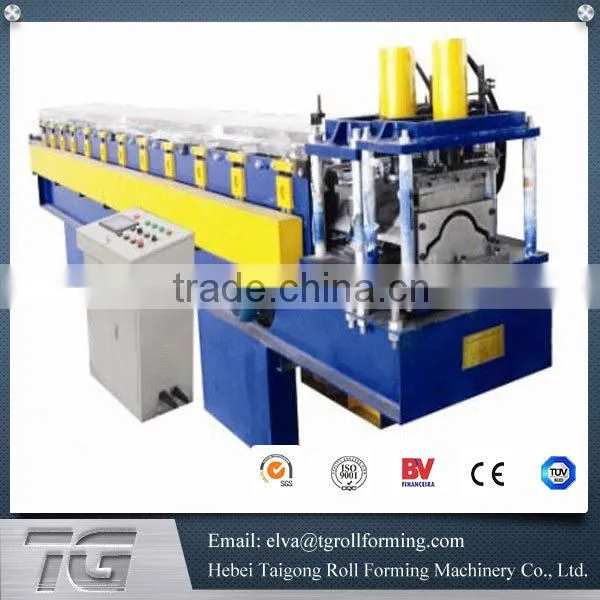

Metal Roof Ridge Cap Roll Forming Machine
1. Material:
1) Coil Width: 1000mm Metal Roof Ridge Cap Roll Forming Machine
2) Suitable Coil Thickness: 0.3-0.7mm
3) Suitable Raw Material: Galvanized steel sheet
2. Process flow
Manual de-coiler --- Electric Feeding --- Servo motor feeding ----oll Forming Machine------Computer Control Cabinet---Automatic cutting Mechanism ---Run-out Tables
3. Metal Roof Ridge Cap Roll Forming Machine Machine equipment including
Roll forming machine | 1 set |
Hydraulic cutter | 1 set |
Electrical control system | 1 set |
Hydraulic system | 1 set |
Normal run out table | 3 PC 1m*1m |
Manual de-coiler | 1 set Max. loading 5 T |
4. Technical specification and details

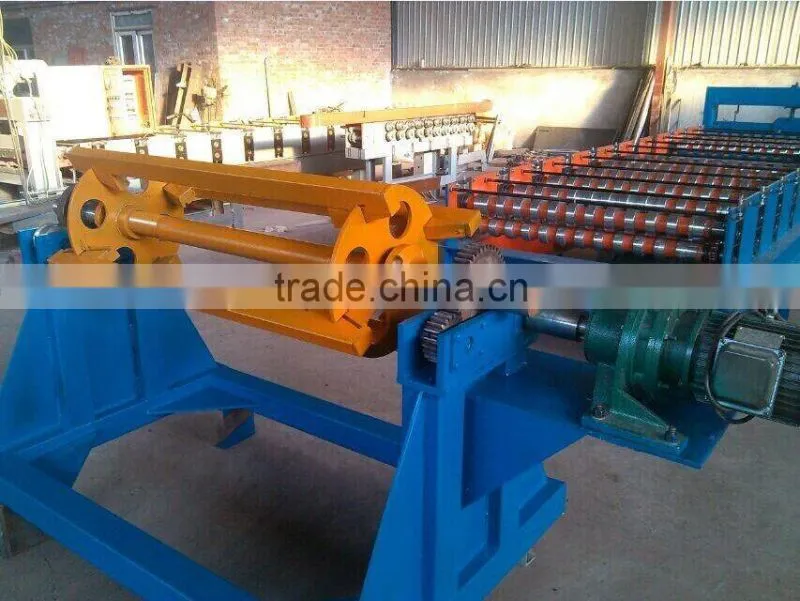

(1) Hydraulic Ue-coiler

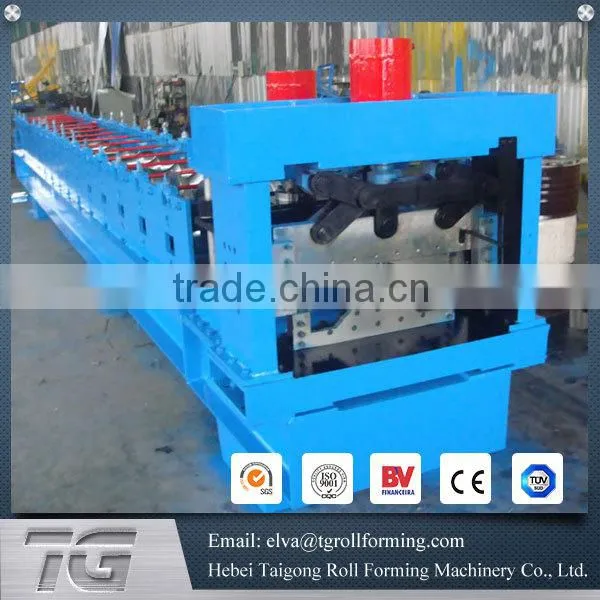

(2) Metal Roof Ridge Cap Roll Forming Machine /Roll Forming Machine
Colored Steel Roll Forming Machine
Steps | 15-17 steps |
Material of shaft | 45# steel hardening and tempering treatment |
Controlling system | PLC |
Motor Power | 4kw (Hydraulic station power:5.5kw ) |
Working speed (Forming speed) | 16-18 m/min (without cut time) |
Weight | about 5500kg |
plating chromium’s thickness | 0.05mm |
Main stand | 350# H steel welded structure Wall plate thickness: 14mm the main frame of machine is welded separately and the outside wall is connected by screw after being rot blasted on the surface |
(3) Hydraulic Cutting
(4) Hydraulic station
(5) PLC Control System
This system uses Delta PLC to control the all working actions. Production quantity and each piece length will be automatically measured. It is convenient to control the roll forming machine.
(6) Product Rack (un-powered)
(7). Products for Reference
1) Guarantee period: 12 months limited warranty starting from date of delivery. Shipping cost for parts to be replaced during warranty period have to be borne by the customer.
2) Spare parts: bearings, buttons, chains, magnetic valve, protective tube etc.
3) Installation and training:
A. If buyers visit our factory and check the machine, we will teach you how to install and us the machine, and also train your workers/technician face to face.
B. Without visiting, we will send you user manual and CD to teach you to install and operate.
C. COST OF INSTALLATION:
The buyer should pay the installation charges (USD 120 one man one day). To the seller’s appointed account by T/T before the seller’s technicians go to the buyer’s factory. The buyer pays the seller’s technicians travel cost outside China, including round air tickets fee, accommodation and food, provide transportation from living hotel to the work place, necessary communication, and insurance, etc.
If you have any further question of our Equipment, please feel free to contact me, thanks!
Contact Us
- Hebei Taigong Roll Forming Machinery Co., Ltd.
- Contact nameElva Zhang
- Phone86-317-8179009
- AddressZhangsanjia Village, Ind. Zone, Botou
