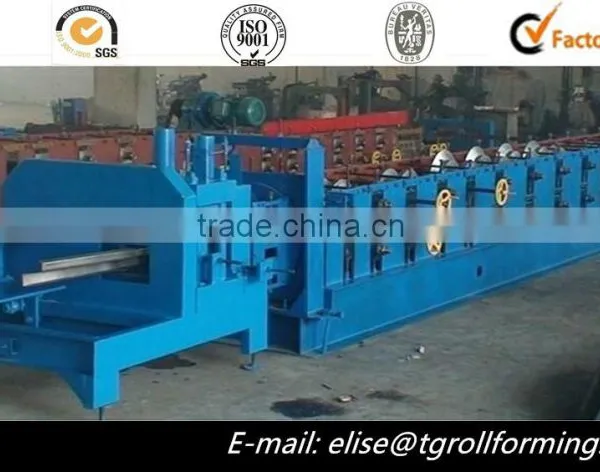

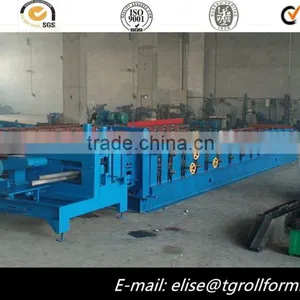

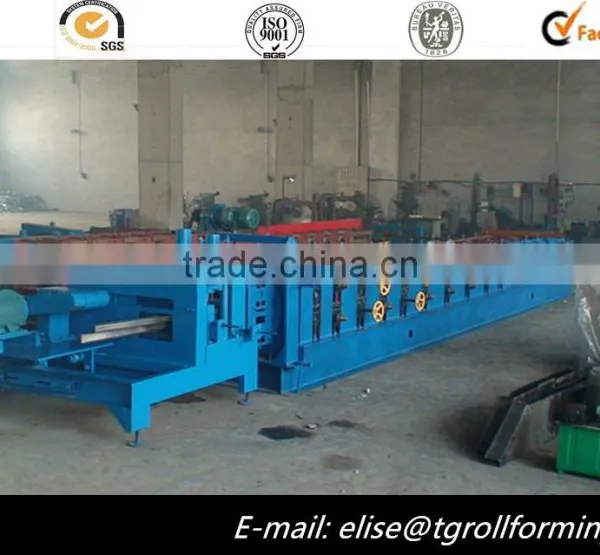

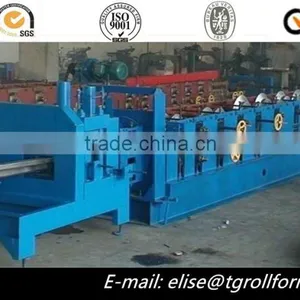

Automatic Z Purlin Quick Interchangable Cold Roll Forming Machine Production Line

2. Process flow

Manual de-coiler --- Electric Feeding --- Servo motor feeding ----oll Forming Machine------Computer Control Cabinet---Automatic cutting Mechanism ---Run-out Tables

3. Roller Steel Shutter Door Roll Forming Machine equipment including

(1) Hydraulic Ue-coiler

  (2)Automatic Roller Steel Shutter Door Roll Forming Machine

 (3) Hydraulic Cutting

(4) Hydraulic station

(5) PLC Control System

This system uses Delta PLC to control the all working actions. Production quantity and each piece length will be automatically measured. It is convenient to control the roll forming machine.

(6) Product Rack (un-powered)

(7). Products for Reference

1) Guarantee period: 12 months limited warranty starting from date of delivery. Shipping cost for parts to be replaced during warranty period have to be borne by the customer.

2) Spare parts: bearings, buttons, chains, magnetic valve, protective tube etc.

3) Installation and training:

A. If buyers visit our factory and check the machine, we will teach you how to install and us the machine, and also train your workers/technician face to face.

B. Without visiting, we will send you user manual and CD to teach you to install and operate.

C. COST OF INSTALLATION:

The buyer should pay the installation charges (USD 120 one man one day). To the seller’s appointed account by T/T before the seller’s technicians go to the buyer’s factory. The buyer pays the seller’s technicians travel cost outside China, including round air tickets fee, accommodation and food, provide transportation from living hotel to the work place, necessary communication, and insurance, etc.

If you have any further question of our Equipment, please feel free to contact me, thanks!
