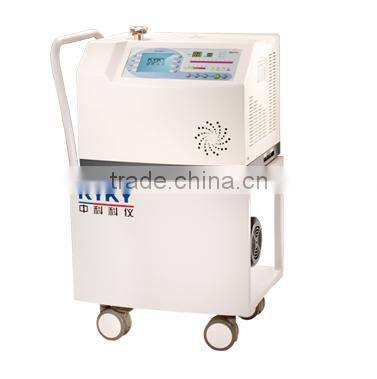

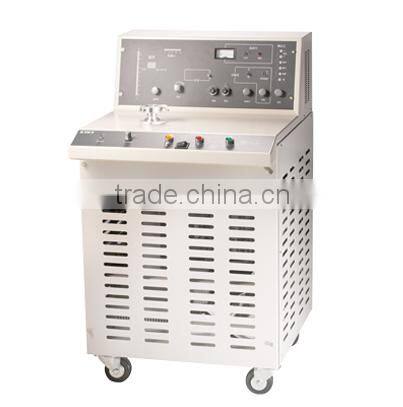

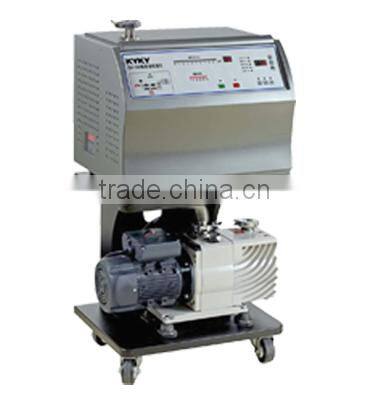

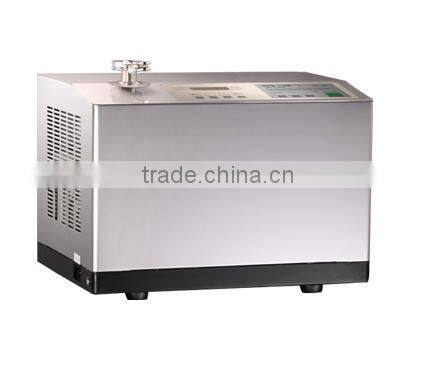

Helium Mass Spectrometer Leak Detector
Helium Mass SpectrometerLeakDetector is shown as helium or hydrogen gas leak, a gas analyzer helium mass spectrometer leak detection is performed.
The low noise floor of helium, small molecular weight and viscosity coefficient, and therefore easy to spread easily through the drain hole; In addition, the inert gas helium-based, non-corrosive, it is commonly used as shown helium gas leak. This gas will then have to spray the gas analyzer (adjusted only for helium from the operating state of the reaction) was seized container, if the container tainted holes, namely the analyzer to react, so we can see where the leak and drain volume size.
Advantage:
- With portable design;
- The device looks compact;
- Using the LCD touch-screen design;
- Communication Interface;
- Can easily export data leak.
Technical Parameters
| model | ZQJ-560 | ZQJ-542 | ZQJ-542G | ZQJ-530 | ZQJ-530G | ZQJ-291K | ZJQ-230D | ZQJ-230EK |
| Minimum leak rate(Pa·M3/S) | ≤5*10-12 | ≤5*10-12 | ≤5*10-12 | ≤5*10-11 | ≤5*10-11 | ≤5*10-11 | ≤5*10-11 | ≤5*10-11 |
| Leak measurement range(Pa·M3/S) | 5*10-12---1*10-4 | 5*10-12---1 | 5*10-12---1 | 2*10-11---1*10-5 | 2*10-11---1*10-5 | 2*10-11---1*10-2 | 2*10-11---9.8*10-5 | 2*10-11---9.8*10-2 |
| Maximum pressure leak port(Pa) | 1000 | 1000 | 1000 | 20 | 20 | 2000 | 20 | 10000 |
| Response time(S) | ≤2 | ≤1 | ≤1 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 |
| Start Time(min) | 4 | ≤2 | ≤2 | ≤8 | ≤8 | ≤8 | ≤8 | ≤8 |
| Power | 220V±10%,50Hz,10A,Simplex | |||||||
| working environment | Temperature5---35℃,relative humidity≤80% | |||||||
| Dimensions(mm) | 800*421*925 | 541*410*440 | 680*450*1000 | 500*500*1000 | 650*450*1000 | 550*560*960 | 540*600*950 | 575*650*1050 |
| weight(kg) | 70 | 65 | 86 | 92 | 95 | 112 | 82 | 131.5 |
Principle:
Helium leak detectors are based on the principle of mass spectrometry, as shown with helium leak into the system leak testing equipment.
By mass spectrometry chamber and exhaust systems and electrical parts from the ion source, analyzer, collector, cold cathode gauges and other components of. MS room filament emitted electrons oscillate back and forth in the room, and the indoor gas leak through the hole and into the interior of the helium collision ionizing positive ions, helium ions into the magnetic field in the accelerating electric field, Since the Lorentz force generated by the deflection, a circular arc-shaped track, can change the accelerating voltage of ions of different mass through a magnetic field and receiving slits reach the receiving electrode is detected.
Helium spray method, a method is sucked helium mass spectrometer leak in the helium leak resistance furnace in the two most commonly used methods.
Packaging Details: Export Standard Packaging.
Delivery Detail: 60 days after receipt of payment.
Before sales:
Our engineers are ready to provide custom made design and recommendation for each customer's case.
We provide professional consulting service for leak detection.
We also have set up good relations with the suppliers of relative consumables and parts for your needs.
After-sales:
We will send the engineers to your place for installation, fine tune and for operation training,if you need.
We will provide troubleshooting service all lifetime.
The warranty period of the machine is 1 year.
We will contact you to ask for about the conditions of the machine in periodically.
We also provide the service for further extension on your existing machine.
Inquiry Guides
Dear Customer: :-)
Good day.
When you are going to send us a inquiry, in order to recommend the most appropriate machine for your project, please answer the following questions in your letter:
1. What types(model) of leak detector do you need.
2. What is the possible Minimum leak rate according to your request.
3. What is the pressure of products or any details about the leak detector.
The answers to the above question will help us a lot on quotation or do the recommendation.
Welcome to inquiry our products.
