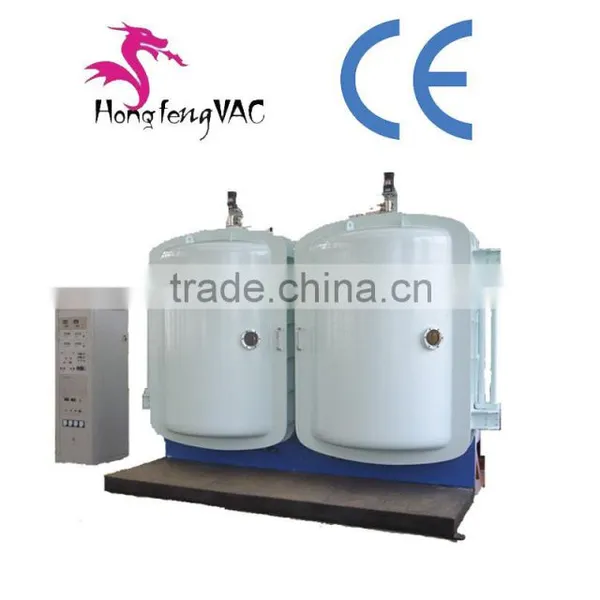

vacuum deposition system/vacuum machine for the magnetron sputtering vacuum coater
- 30 Set / Sets per Month
- Xiangtan
- T/T Credit Card
-
electrostatic flocking machine
-
powder coating lab test machine electrostatic powder experiment spray machine optiflex 2 type
-
electrostatic powder coating machine experiment lab powder spray machine optiflex 2 type
-
It is suitable for high pressure cascade of spray gun of various types of spray machine
-
Zinc Ash Recovery Furnace zinc ash recovery machine Zinc Ash Separator zinc ash regeneration unit
-
Electric adjustment multi - mode liquid crystal intelligent electrostatic powder spraying machine
Product Details
| Condition: | New | Type: | Coating Production Line | Substrate: | Aluminum |
| Coating: | Vacuum Coating | Place of Origin: | Hunan, China | Brand Name: | Hongfeng VAC |
| Model Number: | EV-1300 | Voltage: | 380V | Power(W): | 80KW |
| Dimension(L*W*H): | 5*4*3 meters | Weight: | 4 TONS | Certification: | CE |
| Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
PVD máquina para lámparas de carro/Vacuum system for the magnetron sputtering/Vacuum Coaters for the magnetron sputtering
| Parts Name | Vacuum evaporation aluminum coater | Vacuum magnetron sputtering system | Vacuum arc deposition machinery |
| * Main application | Plastic or glass metallizing, decorative coatings | High quality plastic metallizing; mirror making; ITO conductive glass, Low-E glass and sun reflecting glass; silvering for disposable plastic culteries; Solar glass tubes; tools coating; other thin film coating. | Tools coating; Decorative coatings on metal parts(e. g. Stainless steel sheet); Golden coloring on ceramic tiles, jewelry, watch parts, glass bottles; Other substrates which can bear high temperature up to 600 centigrade. |
| * Custom made working chamber in rectangular or cylindrical | Single layer | Single layer or with cooling jacket | Single layer or with cooling jacket |
| * Base material of body | Carbon steel or stainless steel | Carbon steel or stainless steel | Stainless steel |
| * Custom made carousel/rack/jigs | √ | √ | √ |
| * High vacuum system based on oil diffusion pumps or molecular pump, booser pump and mechanical pumps; | √ | √ | √ |
| * Electrical controlling center with PLC screen, automatic and manual work modes available; | √ | √ | √ |
| * Tungsten&aluminum filament evaporation unit | √ | × | × |
| * Magnetron sputtering cathodes in rectangular or cylindrical | × | √ | × |
| * Arc deposition unit | × | × | √ |
| Notice: This is a kind of custom made machine, the three above unit can be united in the same machine for multi-functional applications. | |||
| * Power support | Evaporation transformer | Magnetron sputtering source | Arc source |
| * Gas feeding system | × | √ | √ |
| * Cool water | For pumps | For pumps and cathodes | For pumps, cathodes |
| * Compressed air needed | √ | √ | √ |
| You may interested in the PVD coating machine for the following applications(direct link): | Running Videos(links to the videos) (Please copy the link to the browser address bar for video watching.) | |
| Aluminum or silver mirror making | /v_show/id_XODM0NzY3NDky.html | /v_show/id_XODM0Njk1OTM2.html |
| ITO conductive glass | /v_show/id_XNjg2NTIwNzQ4.html | /v_show/id_XNjg1MTk0NDI4.html |
| Low-E glass coating | ||
| Solar Tubes coating | ||
| Plastic metallizing | /v_show/id_XNzE1MDY3NzIw.html | /v_show/id_XNDY2OTQ0MDky.html |
| Headlamp metallzing | ||
| Christmas Balls metallizing | ||
| Shoe Heel metallizing | /v_show/id_XNzE1MDQyMzQw.html | |
| Food grade coatings for plastic cutleries | /v_show/id_XNDI2NDU5MDQw.html | /v_show/id_XNDI1ODkzODI0.html |
| Tools or hardwares coating | /v_show/id_XNjA3NzA5MTcy.html | /v_show/id_XNDA0MzYwNzky.html |
| Stainless steel sheets with TiN coatings | /v_show/id_XMTkxMjY2MjUy.html | |
| Jewelry | ||
| Ceramic tiles coating | ||
| Mosaic coating | /v_show/id_XNDA0Mjg5MTU2.html | |
- Our engineers are ready to provide custom made design and recommendation for each customer's case.
- We provide professional consulting service for PVD coaters and lines.
- We also have set up good relations with the suppliers of relative consumables and parts for your needs.
- We will send the engineers to your place for installation, fine tune and for operation training.
- We will provide troubleshooting service all lifetime.
- The warranty period of the machine is 1 year.
- We will contact you to ask for about the conditions of the machine in periodically.
- We also provide the service for further extension on your existing machine.
Machines Designed&Produced according to customers' requests:
Jigs Designed According to specfications of customers' products:
Export Standard Packing
Installation Work Site in customers' workshop
Operation Training In Customer's Factory
Question 1: Are you manufacturer?
Answer: Yes, we are. Welcome to visit our factory!
Question 2: What is price of the machine?
Answer:
The machine is custom made. If you have any drawing or any information on specification of the machine, please send to us for quote.
If you are totally new in this area, please tell us the max. dimension of your products, its application, and your desired capacity.
We will provide our professional suggestions and work out an appropriate design for your project.
Question 3: What do I have to do for my products before processing by the vacuum coater?
Answer: In vacuum area, the products(we call it"substrate") have to be CLEAN, DRY AND SMOOTH. So we will need washer and dryer, sometimes base varnish, and topcoat to protect the coatings.
Question 4: Do I have to pay the costs for pollution?
Answer: The machine is environment-friendly, there is no liquid chemical waste and harmful gas. This is a kind of green technology.
Dear Customer: :-)
Good day.
When you are going to send us a inquiry, in order to design the most appropriate machine for your project, please answer the following questions in your letter:
1. What is your product, its material and application
2. What is the possible max. dimension of your product
3. What is your desired productivity per 8 hours/shift.
The answers to the above question will help us a lot on designing or do the recommendation.
Please send the inquiry at the bottom of this page.
Thanks for your kind attention.
