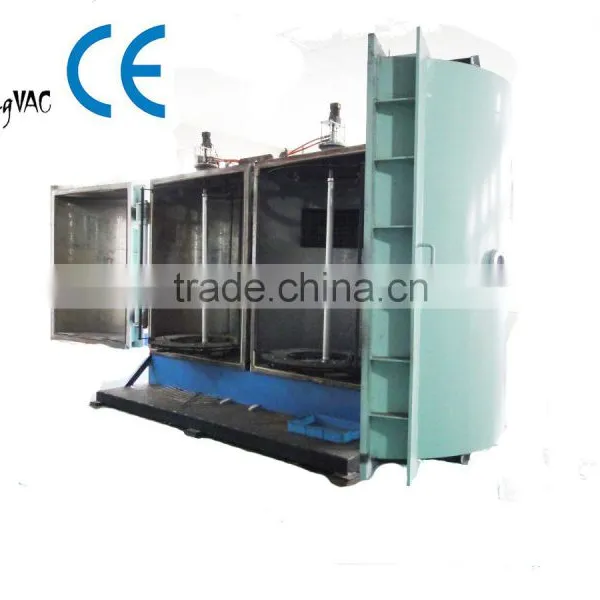

PVD Coatings Equipment/High-speed metallizing systems/Thin Film Coating Equipment
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
| Parts Name | Vacuum evaporation aluminum coater | Vacuum magnetron sputtering system | Vacuum arc deposition machinery |

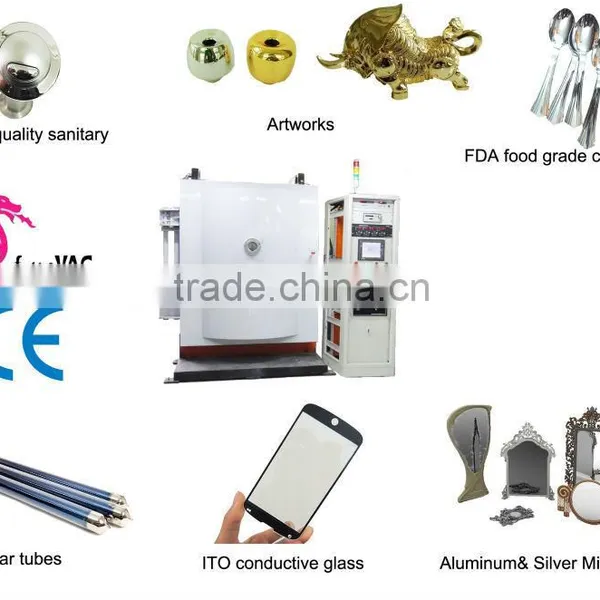

| * Main application | Plastic or glass metallizing, decorative coatings |
High quality plastic metallizing; mirror making; ITO conductive glass, Low-E glass and sun reflecting glass; silvering for disposable plastic culteries; Solar glass tubes; tools coating; other thin film coating. |
Tools coating; Decorative coatings on metal parts(e. g. Stainless steel sheet); Golden coloring on ceramic tiles, jewelry, watch parts, glass bottles; Other substrates which can bear high temperature up to 600 centigrade. |
| * Custom made working chamber in rectangular or cylindrical | Single layer | Single layer or with cooling jacket | Single layer or with cooling jacket |
| * Base material of body | Carbon steel or stainless steel | Carbon steel or stainless steel | Stainless steel |
| * Custom made carousel/rack/jigs | √ | √ | √ |
| * High vacuum system based on oil diffusion pumps or molecular pump, booser pump and mechanical pumps; | √ | √ | √ |
| * Electrical controlling center with PLC screen, automatic and manual work modes available; | √ | √ | √ |
| * Tungsten&aluminum filament evaporation unit | √ | × | × |
| * Magnetron sputtering cathodes in rectangular or cylindrical | × | √ | × |
| * Arc deposition unit | × | × | √ |
| Notice: This is a kind of custom made machine, the three above unit can be united in the same machine for multi-functional applications. | |||
| * Power support | Evaporation transformer | Magnetron sputtering source | Arc source |
| * Gas feeding system | × | √ | √ |
| * Cool water | For pumps | For pumps and cathodes | For pumps, cathodes |
| * Compressed air needed | √ | √ | √ |
Advantages of this machine(vacuum PVD coater):
1) Simple visual interface for the operator, process control system runs on Windows system interface and easy to use
2) Vacuum pump system efficiency, which increases productivity due to shorter batch times
3) High performance layer monitoring system is equipped for enhanced production result
4) Automated work cycle, which requires less workers per shift and training time, low production cost
5) Repeatable and reliable coating
6) Safter and Environmentally-friendly process guarantee
7) Highest yield
Coating properties:
• Excellent layer properties
• Longer lifetime
• Smooth surface
• Many bright, metallic colours, decorative or functional
• Excellent scratch protection
------------------------------------------------------------------------------------------------------------------------------------------
| You may interested in the PVD coating machine for the following applications(direct link): |
Running Videos(links to the videos) (Please copy the link to the browser address bar for video watching.) |
|
| Aluminum or silver mirror making | /v_show/id_XODM0NzY3NDky.html | /v_show/id_XODM0Njk1OTM2.html |
| ITO conductive glass | /v_show/id_XNjg2NTIwNzQ4.html | /v_show/id_XNjg1MTk0NDI4.html |
| Low-E glass coating | ||
| Solar Tubes coating | ||
| Plastic metallizing | /v_show/id_XNzE1MDY3NzIw.html | /v_show/id_XNDY2OTQ0MDky.html |
| Headlamp metallzing | ||
| Christmas Balls metallizing | ||
| Shoe Heel metallizing | /v_show/id_XNzE1MDQyMzQw.html | |
| Food grade coatings for plastic cutleries | /v_show/id_XNDI2NDU5MDQw.html | /v_show/id_XNDI1ODkzODI0.html |
| Tools or hardwares coating | /v_show/id_XNjA3NzA5MTcy.html | /v_show/id_XNDA0MzYwNzky.html |
| Stainless steel sheets with TiN coatings | /v_show/id_XMTkxMjY2MjUy.html | |
| Jewelry | ||
| Ceramic tiles coating | ||
| Mosaic coating | /v_show/id_XNDA0Mjg5MTU2.html | |
- Our engineers are ready to provide custom made design and recommendation for each customer's case.
- We provide professional consulting service for PVD coaters and lines.
- We also have set up good relations with the suppliers of relative consumables and parts for your needs.
- We will send the engineers to your place for installation, fine tune and for operation training.
- We will provide troubleshooting service all lifetime.
- The warranty period of the machine is 1 year.
- We will contact you to ask for about the conditions of the machine in periodically.
- We also provide the service for further extension on your existing machine.
Processing Center:
------------------------------------------------------------------------------------------------------------------------------------------
When the machine is shipped, it is in un-assemble condition.
The packing is made up of steel, polywood sheet and thin fim, as well as pallet.
The solid packing can make sure you will receive a machine without destroy.
Dear Customer: :-)
Good day.
When you are going to send us a inquiry, in order to design the most appropriate machine for your project, please answer the following questions in your letter:
1. What is your product, its material and application
2. What is the possible max. dimension of your product
3. What is your desired productivity per 8 hours/shift.
The answers to the above question will help us a lot on designing or do the recommendation.
Please send the inquiry at the bottom of this page.
