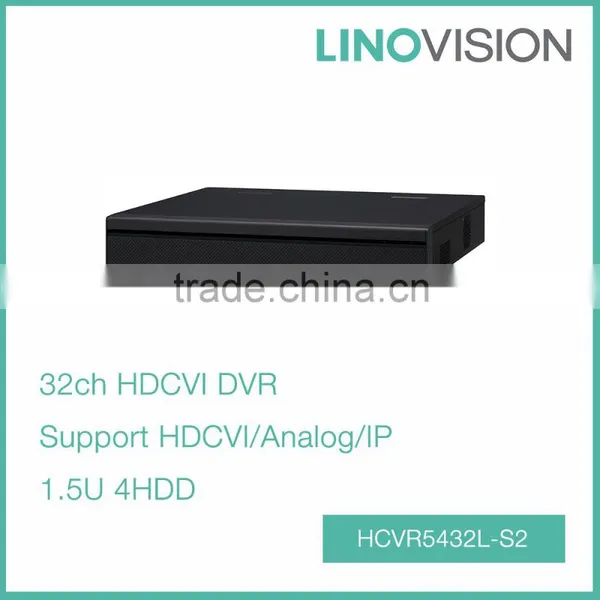

Help CenterNew 32CH 1.5U 4HDD Tribrid 720P-Pro H.264 HDCVI DVR , Support HDCVI/Analog/IP
Related Products
-
Professional 24CH 1.5U Tribrid 720P-Pro ONVIF HDCVI DVR , Support HDCVI/Analog/IPUS$ 486 - 540MOQ: 1 Piece -
Advanced 16CH 1U Tribrid 720P-Pro ONVIF H.264+ HDCVI DVR , Support Smart FunctionsUS$ 155 - 173MOQ: 3 Pieces
-
8CH 1U 2HDD Tribrid 720P-Pro H.264+ HDCVI DVR , Support Intelligent FunctionsUS$ 128 - 143MOQ: 3 Pieces
-
256CH 4U up to 8MP With Redundant Power Supply Module Adopted Super NVR, Support RAIDUS$ 4,420 - 5,100MOQ: 1 Piece
-
Super 4K 128CH 3U 16HDD Up to 12MP Resolution H.265 RAID P2P NVR, Support Hot-swapUS$ 1,495 - 1,725MOQ: 1 Piece
> Tribrid: Each channel supports Analog/HDCVI/IP Video input
> H.264 dual-stream video compression
> HCVR5432L-S2: All channel 720P realtime recording or 1080P non-realtime recording
> 2HDMI/VGA/TV simultaneous video output
> 16 channel synchronous realtime playback, GRID interface & smart search
> Support Multi-brand network cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus,
Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek and etc.
> ONVIF Version 2.4 conformance
> 3D intelligent positioning with Dahua PTZ dome camera
> Support 4 SATA HDDs up to 16TB, 1 eSATA, 3 USB2.0
> Multiple network monitoring: Web viewer, CMS(DSS/Smart PSS)&Smart Phone(DMSS)
Model |
HCVR5432L-S2 |
||||
System | |||||
Main Processor |
Embedded processor |
||||
Operating System |
Embedded LINUX |
||||
Video | |||||
Input |
32 channel, BNC |
||||
Standard |
Analog |
NTSC/PAL |
|||
HDCVI |
1080P/720P HDCVI Camera |
||||
IP |
All channels support 1080P/720P IP Camera |
||||
Audio | |||||
Input |
4 channel, RCA |
||||
Output |
1 channel, RCA |
||||
Two-way Talk |
Reuse audio input/output channel 1 |
||||
Display | |||||
Interface |
2 HDMI, 1 VGA, 1 TV |
||||
Resolution |
1920×1080, 1280×1024, 1280×720, 1024×768 |
||||
Display Split |
1/4/8/9/16/25 |
||||
Privacy Masking |
4 rectangular zones (each camera) |
||||
OSD |
Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
||||
Recording | |||||
Video/Audio Compression |
H.264 / G.711 |
||||
|
Record Rate |
Main Stream |
1080P(1~15fps)/720P/960H/D1/HD1/2CIF/CIF(1~25/30fps) |
|||
Extra Stream |
CIF/QCIF(1~25/30fps) ,D1 |
||||
Bit Rate |
48~4096Kb/s |
||||
Record Mode |
Manual, Schedule(Regular(Continuous), MD), Stop |
||||
Record Interval |
1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
||||
Video Detection & Alarm | |||||
| Trigger Events | Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips | ||||
| Video Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank | ||||
| Alarm Input | 16 channel | ||||
| Relay Output | 6 channel | ||||
Playback & Backup | |||||
Sync Playback |
1/4/9/16 |
||||
Search Mode |
Time/Date, MD & Exact search (accurate to second) |
||||
Playback Functions |
Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
||||
Backup Mode |
USB Device/Internal SATA burner/Network |
||||
Network | |||||
Ethernet |
RJ-45 port (10/100M/1000M) |
||||
Network Functions |
HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P |
||||
Max. User Access |
128 users |
||||
Smart Phone |
iPhone, iPad, Android, Windows Phone |
||||
Storage | |||||
Internal HDD |
4 SATA ports(4 HDDs or 3HDDs+1 CD/DVD-RW), up to 16TB |
||||
External HDD |
1 eSATA port |
||||
Auxiliary Interface | |||||
USB Interface |
3 ports (2 Rear), USB2.0 |
||||
RS232 |
1 port, For PC communication & Keyboard |
||||
RS485 |
1 port RS485 for PTZ control,1 port RS422 for Keyboard |
||||
General | |||||
Power Supply |
AC 100~240 V, 50/60 Hz |
||||
Power Consumption |
40W(Without HDD) |
||||
Working Environment |
-10 ~+55°C / 10~90%RH / 86~106kpa |
||||
Dimension(W×D×H) |
1.5U, 440mm×416mm×68mm |
||||
Weight |
6KG(without HDD) |
||||
