>Max 256channel IP cameras connection
>Max 512Mbps incoming bandwidth
>Up to 128ch@1080P, 256ch@720Prealtime recording
>2 HDMI / 1 HDMI +1 VGA (Optional: 1 VGA+10 HDMI)
>Support 24 hot-swap HDDs
>Support RAID0/1/5/6/10/50/60
>Support N+Mhot standby
>Support iSCSI &Mini SAS to expand storage space
>Human-oriented UI
>Compatible with SDK and seamless integrated to other platforms
>Support Multi-brand network cameras: Arecont Vision, AXIS, Bosch, Brickcom, Canon,CPPlus, Dynacolor, Honeywell,Panasonic,Pelco, Samsung, Sanyo, Sony, Videosec, Vivotek and etc.
>ONVIF Version 2.3 conformance
>Redundant power supply module adopted
>Front LCD display
Model |
NVR-95256S-RHD |
|
System | ||
Main Processor |
Intel® Core™ i7 Processors |
|
Operating System |
LINUX |
|
Motherboard |
Embedded Board (Support 7x24 operation) |
|
Memory |
8GB DDR3(up to 16GB) |
|
Case |
Hot-dipped galvanized sheet steel(1.2mm thickened), High-precise aluminum alloy slide, Patented pull-out rack design |
|
Fan |
Dual ball screw bearing fan, MTBF>100,000h, support replacement during operation |
|
Interface |
Local GUI &WEB GUI |
|
Video & Audio | ||
Input |
128ch@1080P/256ch@720P |
|
Transmission |
128ch@1080P/256ch@720P |
|
Recording |
128ch@1080P/256ch@720P |
|
Preview |
20ch@1080P/40ch@720P/68ch@D1(Screen 1~2 , default) |
|
Playback |
16ch@1080P/16ch@720P/16ch@D1 (128Mbps in Raid 5 mode) |
|
Recording Resolution |
8Mp, 5Mp, 3Mp, 1080P, 720P, 960H, D1, CIF, QCIF, VGA |
|
Audio |
1ch Micin, 1ch Micout |
|
Recording | ||
Recording Mode |
Manual, Schedule(Regular(Continuous), MD(Video detection: Motion detection, Camera blank, Video loss), Alarm), Stop |
|
Alarm Recording |
Video loss, Camera blank, Motion detection, External alarm |
|
Backup Mode |
Network download / USB HDD/USB CD&DVD-RW / eSATA Device |
|
Display | ||
Interface |
2 HDMI+1 VGA ( Optional: 10 HDMI, 1 VGA ) |
|
Video Output |
2 HDMI/1 HDMI+1 VGA (Optional: 1 VGA+10 HDMI) |
|
Multi-screen Display |
The 1st screen: 1/4/8/9/16/25/36/64 |
|
Privacy Masking |
4 customized zones for privacy masking for each area |
|
Storage | ||
Internal HDD |
24 SATA ports, up to 96TB |
|
HDD Mode |
Single, Raid 0/1/5/6/10/50/60 (Support global HDD Hot-standby) |
|
HDD Installation |
Independent HDD rack, support hot swap |
|
Network | ||
Interface |
4 RJ-45 ports(10/100/1000Mbps) |
|
Ethernet Port |
4 Ethernet ports joint working or 4 independent 1000Mbps Ethernet ports |
|
MD & Alarm | ||
Motion Detection |
Zones: 396(22×18), Sensitivity: 1~6 (level 6 is highest) |
|
Alarm Input |
4ch, low level effective, green terminal interface |
|
Relay Output |
4ch, Relay contact(1A@24VDC), NO/NC programmable, green terminal interface |
|
Auxiliary Interface | ||
Front cover |
Support hot swap, 7" inch HD LCD (1920x1080/1280x1024/1024x768) (Model –D&DR) |
|
USB |
4 USB ports(2 USB2.0 on front-panel, 2 USB3.0 on rear panel) |
|
eSATA |
1 eSATAport |
|
SAS |
2 Mini SASports |
|
General | ||
Power Supply |
AC100V~240V, 47~63Hz |
|
Power Consumption |
200W~400W(WithHDD) |
|
Working Environment |
0°C~40°C |
|
Working Humidity |
10%~80% ( non-condensation) |
|

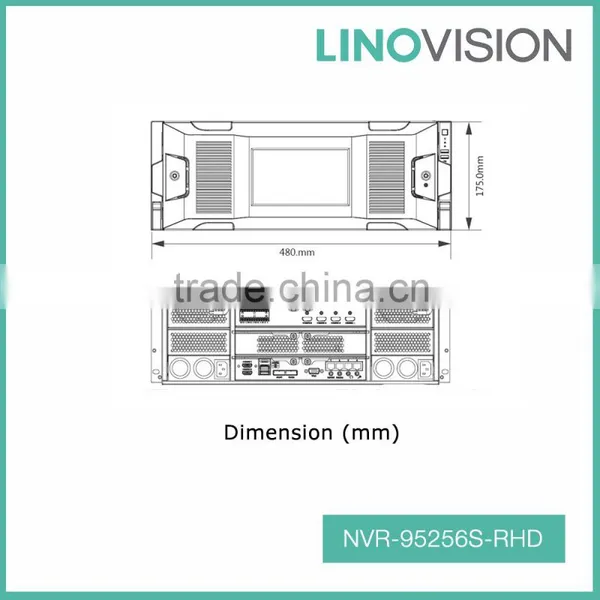

Dimension(W×D×H) |
4U, 480mm×494mm×175mm |
|
Weight |
29kg (without HDD) |
|
Installation |
Rack-mounted |
|
