> Up to 640*480 high sensitive thermal imager, 17μm, NETD 60mK;
> Integrated HAD 36X visual zoom module, 550 TVL
> Aluminum PTZ case with high strength, full weather proof;
> IP index up to IP67;
> Built-in defogging device, working temperature range -20°C~+55°C;
> 3 video outputs: thermal video, visual video and switch video;
> Precise PTZ system with high holding torque, PTZ positioning precision up to +/-0.2°;
> Protocol & Baud rate self-adaptive, soft address supported;
> Optional damping system for tough applications;
> Image flip for stand / ceiling mount.
Model |
TIC-PTZ7636 |
Thermal Camera | |
Sensor Type |
Uncooled Amorphns Silicon FPA |
Resolutions |
640X480 |
Sensor Size |
17μm |
Focal |
25mm |
Focus |
Fixed |
Image Frame Rate |
50HZ(PAL) / 60HZ(NTSC) |
NETD(300K) |
60mK |
FOV |
14.9°x11.2° |
Detecting Range |
Vehicle: 3380m Man: 735m |
Recognition Range |
Vehicle: 845m Man: 180m |
Digital Zoom |
4X |
Daylight Imaging Camera | |
Video Sensor |
1/4" SONY EX-View HAD CCD |
Effective Pixel |
PAL:752(H)×582(V);NTSC:768(H)×494(V) |
Resolution |
550 TVL |
Video System |
PAL/NTSC |
Zoom |
Optical: 36X / Digital: 12X |
Lens |
f=3.4mm-122.4mm, F1.6 to F4.5 |
View Angle |
57.8°(wide)–1.7°(tele) |
Min Illumination |
Color: 1.4lux; Mono:0.01lux |
WB |
Auto |
Focus |
Auto / Manual |
IRIS |
Auto / Manual |
S/N Ratio |
Not less than 50 dB |
WDR |
Yes |
BLC |
On/Off |
Image Stabilization |
On/Off |
DNR |
1-5 Steps / Off |
Day / Night |
Auto / Manual |
PTZ | |
Pan Range |
360° Continuous |
Pan Speed |
Control speed: 0.04°-90°/s; Preset speed: 120°/s |
Tilt Range |
-15°~90° (Auto flip) |
Tilt Speed |
Control speed:0.3°~60°/s, adjustable; Preset speed:90°/s |
Preset |
256 |
Preset Precision |
±0.2° |
General | |
Video Output |
1 Channel Thermal Imaging Video; 1 Channel Visual Video; 1 Channel Switch Video; |
Address |
0~255 |
Voltage |
DC24V |
Power |
35W/50W (Heater On) |
Working Temperature. |
-20°C ~ +55°C |
IP Index |
IP67 |
Anti-Vibration |
Pan 9g, Tilt 15g |
Wind Resistance |
180 km/h |

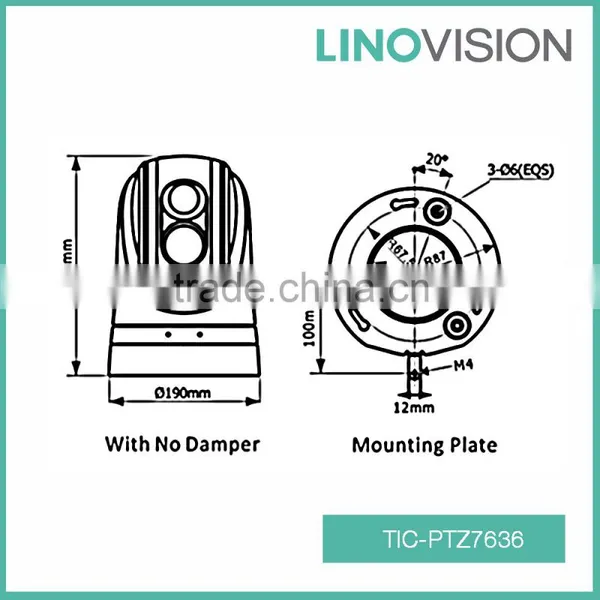

Dimension |
Φ190(mm) x 275(mm) w/o damper; Φ190(mm) x 300(mm) with damper (optional); |
Weight |
6KGS w/o damper; 7KGS with damper (optional) |
