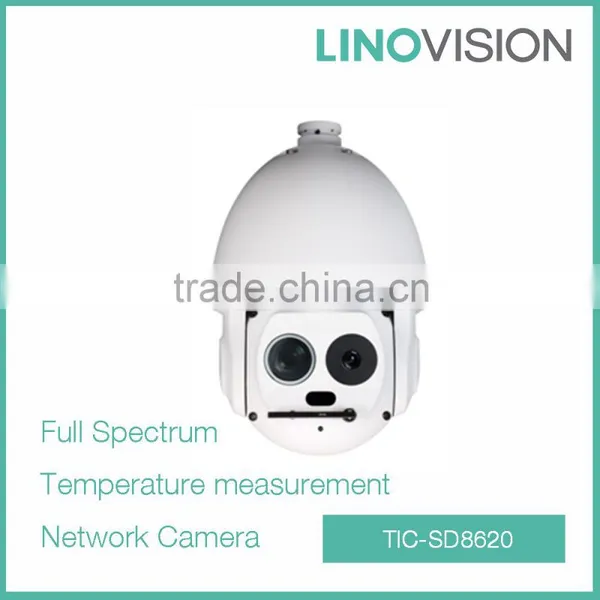

Help CenterTemperature Measurement Full Spectrum 640x512 IP Thermal Imaging PTZ Camera
Related Products
-
Full Spectrum 336x256 Network Thermal Imaging Speed Dome Camera With Temperature MeasurementUS$ 4,760 - 5,740MOQ: 1 Piece -
Economic Network 640x512 Thermal Imaging Speed Dome Camera With Temperature MeasurementUS$ 4,760 - 5,040MOQ: 1 Piece
-
Economic Network 336x256 Thermal Imaging Speed Dome Camera With Temperature MeasurementUS$ 2,490 - 2,490MOQ: 1 Piece
-
Economic Network 640x512 Thermal Imaging Bullet Camera With Temperature MeasurementUS$ 4,620 - 4,830MOQ: 1 Piece
-
Economic Network 336x256 Thermal Imaging Bullet Camera With Temperature MeasurementUS$ 2,310 - 2,310MOQ: 1 Piece
> Ultra-low light star-light camera
> Max 60fps@720P and 30fps@1080P resolution
> Powerful 30x optical zoom
> 640*512 VOx uncooled thermal sensor technology
> Athermalized Lens(thermal camera),Focus-free
> Support ROI,Motion Detection,Color Palettes
> Max 200°/s pan speed, 360° endless pan rotation
> Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
> Built-in 7/2 alarm in/out
> Micro SD memory(Max 128G)
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> H.264&MJPEG dual-stream encoding, Hi-POE
> IP67
Model |
TIC-SD8620 |
||||
Thermal Camera | |||||
Sensor Type |
Long Life, Uncooled VOx Microbolometer |
||||
Effective Pixels |
640(H) x 512(V) |
||||
Pixel Size |
17um |
||||
Thermal Sensitivity |
<40mK@f/1.0 |
||||
Spectral range |
7.5~13.5um |
||||
Lens | |||||
Focal Length |
25mm |
35mm |
50mm |
||
Focus Range |
Athermalized , Focus-free |
||||
Angle of View(H×V) |
13°* 10 ° |
9.3°* 7.1 ° |
6.5 °* 5.0 ° |
||
Effective Distance |
Man (1.8m*0.5m) |
Detection:950m Recognition:230m Identification:120m |
Detection:1300m Recognition:320m Identification:160m |
Detection:1700m Recognition:450m Identification:220m |
|
|
Vehicle (2.3m*2.3m) |
Detection:2800m Recognition:720m Identification:360m |
Detection:4000m Recognition:1000m Identification:500m |
Detection:5100m Recognition:1400m Identification:700m |
||
Camera Features | |||||
Digital Zoom |
24X |
||||
Color Palettes |
Whitehot/Blackhot/Ironrow/Icefire/FusionRainbowGlobowIconbow1Iconbow2 |
||||
ROI |
Support, Custom areas |
||||
Visible Camera | |||||
Image Sensor |
1/1.8" CMOS |
||||
Effective Pixels |
1944(H) x 1092(V),2 Megapixels |
||||
Scanning System |
Progressive |
||||
Electronic Shutter Speed |
1/1 ~ 1/30,000s |
||||
Min. Illumination |
Color: 0.005Lux @ F1.6; B/W: 0.0050Lux @ F1.6; 0Lux @ F1.6 (IR on) |
||||
S/N Ratio |
More than 56dB |
||||
Video Output |
BNC(1.0Vp-p/75Ω), PAL/NTSC |
||||
Camera Features | |||||
Day/Night |
Auto(ICR) / Color / B/W |
||||
Backlight Compensation |
BLC / HLC /WDR |
||||
White Balance |
Auto, ATW, Indoor, Outdoor, Manual |
||||
Gain Control |
Auto / Manual |
||||
Noise Reduction |
Ultra DNR (2D/3D) |
||||
Privacy Masking |
Up to 24 areas |
||||
Digital Zoom |
24x |
||||
EIS |
Support |
||||
Defog |
Support |
||||
Lens | |||||
Focal Length |
6mm ~ 180mm(30x Optical zoom) |
||||
Max Aperture |
F1.5 ~ F4.3 |
||||
Focus Control |
Auto / Manual |
||||
Angle of View |
H: 61.2° ~ 2.32° |
||||
Close Focus Distance |
100mm~ 1000mm |
||||
Video | |||||
Compression |
H.264Main profile/H.264High profile/M-JPEG |
||||
Frame Rate |
Main Stream |
Thermal: 1280*1024 (default)/ 720P @30fps Visible: 1080P (default)/720P@30fps |
|||
Sub Stream |
Thermal:640*360 (default)/ 640*512@30fps Visible: D1 (default)/CIF@30fps |
||||
Bit Rate |
H.264: 56K ~14Mbps |
||||
Audio | |||||
Compression |
G.711a/G.711mu |
||||
Interface |
1/1 channel In/Out |
||||
Intelligent Function | |||||
Auto Tracking |
Single-scene, multiple-scene |
||||
Intelligent Video(optional) |
Tripwire, Intrusion, Object Detection(Person&Vehicle), Abandon detection, Missing detection, Hot resource detect& alarm .etc. |
||||
Tracking Trigger Mode |
Manual / Auto (alarm triggered) |
||||
Tracking Trigger Event |
Targeting, Zoom, Tracking, Recording, Snapshot, Alarm and etc. |
||||
Network | |||||
Ethernet |
RJ-45 (10/100Base-T) |
||||
Protocol |
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour |
||||
Compatibility |
ONVIF PSIA CGI |
||||
Max. User Access |
20 users |
||||
Smart Phone |
iPhone, iPad, Android, Windows Phone |
||||
PTZ | |||||
Pan/Tilt Range |
Pan: 0° ~ 360°endless;Tilt: -20° ~ 90° |
||||
Manual Control Speed |
Pan: 0.1° ~200° /s ; Tilt: 0.1° ~120° /s |
||||
Preset Speed |
Pan: 0.1° ~240° /s ; Tilt: 0.1° ~200° /s |
||||
Preset |
300 |
||||
PTZ Mode |
5 Pattern, 8 Tour, Auto Pan, Auto Scan |
||||
Idle Motion |
Activate Preset/Pan/Scan/Tour/Pattern if there is no command in the specified period |
||||
Auxiliary Interface | |||||
Memory Slot |
Micro SD, Max 128GB |
||||
RS485 |
Support |
||||
Alarm |
7/2 channel In/Out |
||||
General | |||||
Power Supply |
AC24V |
||||
Power Consumption |
<40W |
||||
Working Environment |
-40°C~+70°C, Less than 90% RH |
||||
Ingress Protection |
IP67 |
||||

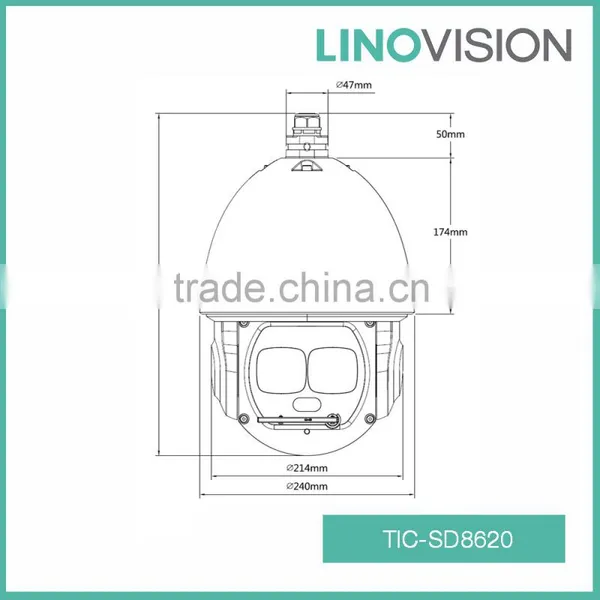

Dimensions |
Φ240mm*382mm |
||||
Weight |
6.8kg |
||||
|
Note: Effective distance values shown are nominal values and should be used as estimates only. Exact value calculations depend on a wide variety of conditions. | |||||
