4 Core Armoured Fiber Optic Cable/4 Core Armoured Fiber Cable for Network Solution

FOB Price

US$ 0.06 - 15.88 / Meter

1000 Meters(Min. Order)

Port shenzhen
Payment TermsT/T L/C D/P D/A Money Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	HYG
Model Number	HYG-GYXTW-4-9/125	Type	Coaxial
Number of Conductors	4

Packaging Details

1 km or 2 km /rell

Product Description

Specifications

4 core armoured fiber optic cable
1.Sheath cable UL OFNR, OFNP requirements
2.Meet YD/T 1258.4-2005
3.2-288 core
4.CE and R

4 core armoured fiber optic cable for network solution

Description

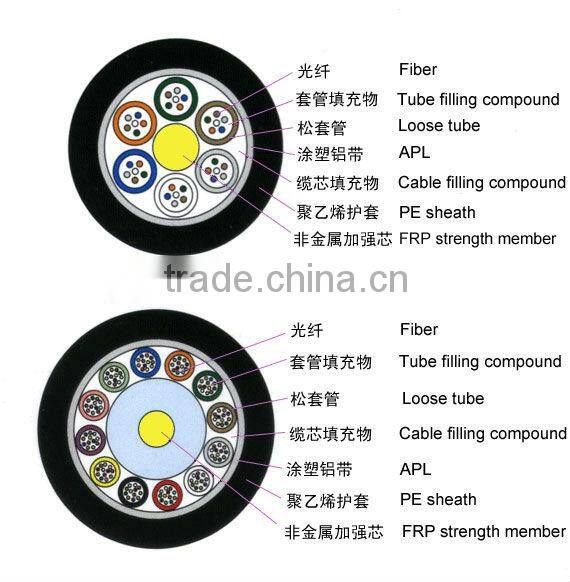

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

Characteristics

1.Good mechanical and temperature performance

2· High strength loose tube that is hydrolysis resistant

3· Special tube filling compound ensure a critical protection of fiber

4· Crush resistance and flexibility

5· PSP enhancing moisture-proof

6· Two parallel steel wires ensure tensile strength

7· Small diameter, light weight and friendly installation

8· Long delivery length

9.2-288 core

Standards

GYXTW cable complies with Standard YD/T 769-2003.

Optical Characteristics

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20°C)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm	≤1480nm

Technical Parameters

Cable Type	Fiber Count	Cable Diameter mm	Cable Weight kg/km	Tensile Strength Long/Short Term N	Crush Resistance Long/Short Term N/100mm	Bending Radius Static /Dynamic mm
GYXS/GYXTW-2~12	2~12	10.0	105	600/1500	300/1000	10D/20D
GYXS/GY XTW-2~12	2~12	10.6	124	1000/3000	1000/3000	10D/20D
GYXS/GY XTW-14~24	14~24	12.5	149	1000/3000	1000/3000	10D/20D
GYXS/GY XTW-26~36	26~36	14.0	190	1000/3000	1000/3000	10D/20D
GYXS/GY XTW-38~48	38~48	15.0	216	1000/3000	1000/3000	10D/20D

Storage/Operating Temperature : -40°C to + 70°C
