Specifications
Optic Fiber Protective Sleeve:1.CE,ROHS,ISO9001
2.100% professional factory
3.Excellent reinforcement
4.Reliable
CE,ROHS,UL,ISO9001 2.5mm&3.0mm colorful Optic Fiber Protective Sleeve
Optic Fiber Protective Sleeve :
1.CE,ROHS,ISO9001,UL
2.100% professional factory
3.Excellent reinforcement
4.Reliable
Optic Fiber Protective Sleeve feature:
Excellent reinforcement of fusion splicing portion
Reliable protection under any environmental conditions
40mm & 60mm length available
2.5mm & 3.0mm diameter for option
Optic Fiber Protective Sleeve application:
Shrinkable sleeve is applied to the optical fiber closure to fix and protect the optical fiber when splicing.
The sleeve can be divided into two types(single and mass) according to the function. The single type is used for the single-fiber, and the mass type is used for the ribbon fiber. It is different in the reinforcement between two types. The single one realizes the reinforcement by the stainless steel needles, the later one via the ceramic reinforcement member to realize the function.
Mass means there are several cores for the fiber. So the mass sleeve includes 4cores,6cores,8cores,12cores(for types).
Optic Fiber Protective Sleeve parameters:
Shrinking Temperature (°C) |
110 ~ 130 |
Radial Shrinking Rate (%) |
>50 |
Axial Shrinking Rate (%) |
<10 |
Low Temperature Property |
No crackle at -55°C lasting 4 hours |
Normal Operation Temperature (°C) |
-55°C ~ + 135°C |
Normal Operature Relative Humidity |
≤95% |
Spark- over Strength (kV/mm) |
≥20 |
Tensile Strength (Mpa) |
20 |
Loss at -40°C |
0.03dB |
Loss at +60°C RH95% |
0.02dB |
|
Steel Rod O.D & Length |
Fusion Tube I.D. & Length |
Heat Shrink Tube Length |
Device O.D.(After shrink) |
Packing |
1.5 & 58mm |
1.3 & 60mm |
60mm |
3.0mm |
100pcs/bag |
1.2 & 40mm |
1.3 & 45mm |
45mm |
2.5mm |
100pcs/bag |
1.2 & 36mm |
1.3 & 40mm |
40mm |
2.5mm |
100pcs/bag |
1.0 & 56mm |
0.5 & 60mm |
60mm |
2.0mm |
100pcs/bag |
1.0 & 36mm |
0.5 & 40mm |
40mm |
2.0mm |
100pcs/bag |

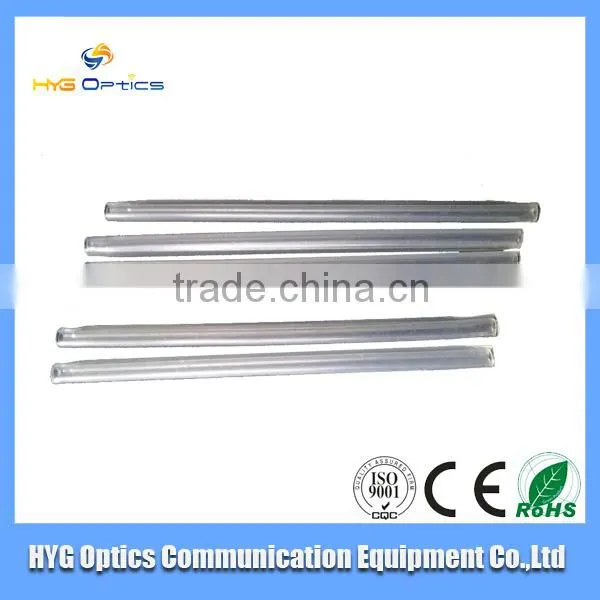

Optic Fiber Protective Sleeve pictures:
