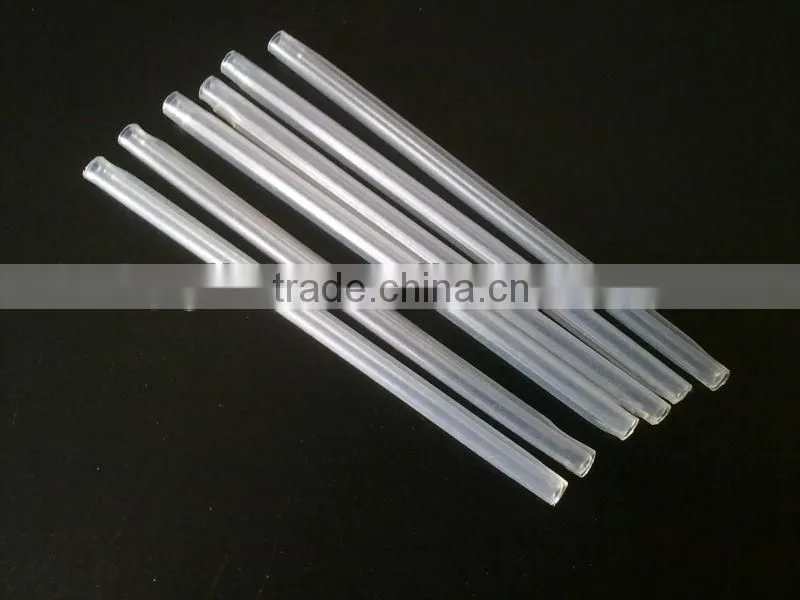

20% discount fiber heat shrinkable tube/heat tube for fiber cable connection
- 1000000 Piece / Pieces per Month
- shenzhen
- T/T Credit Card
-
fiber heat shrinkable tube for fiber cable connection
-
heat shrink tube with steel for fiber cable connection
-
flexible pvc cable protection tubes for fiber cable connection
-
optical fiber protection tube for fiber cable connection
-
fiber cable protection tube for fiber cable connection
-
optic fiber heat shrinkable tube for fiber cable connection
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | HYG | Model Number: | HYG-HT-40 |
| Material: | PE | Specification: | 5mm | Length: | 40MM |
| Thickness: | 0.5mm | Standard: | 40mm/60mm |
Packaging Details
5000pcs/box
Product Description
20% discount fiber heat shrinkable tube/heat tube for fiber cable connection
-Excellent reinforcement of fusion splicing portion -Reliable protection under any environment
Fiber Optic Protection Sleeve
Fiber Optic cable protection Sleeve,Shrink tube,Fiber heat shrink tube,Optic Fiber heat shrink tube,Fiber heat shrink tube,heat
Fiber Splice Protection Sleeves:
Fiber optic heat shrink
Description:

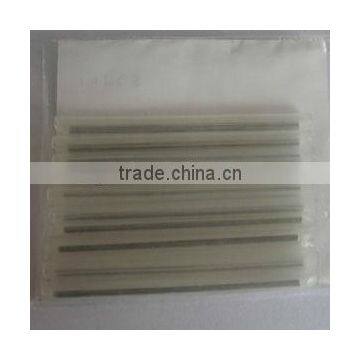

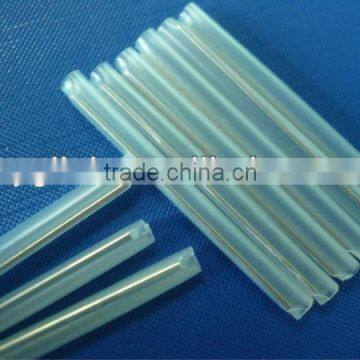

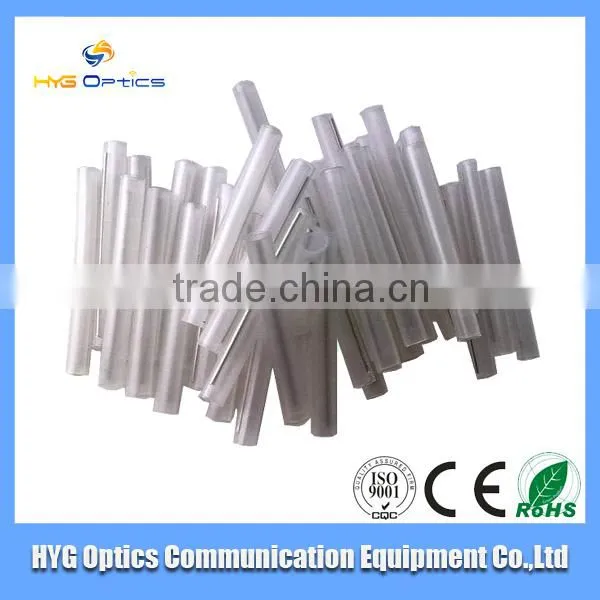

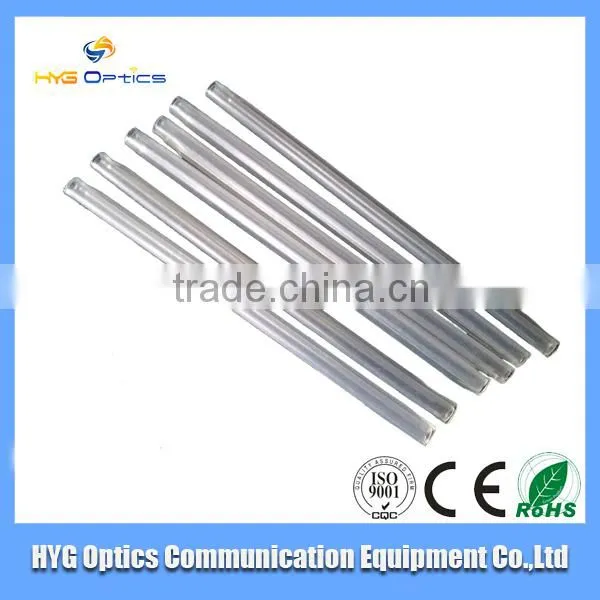

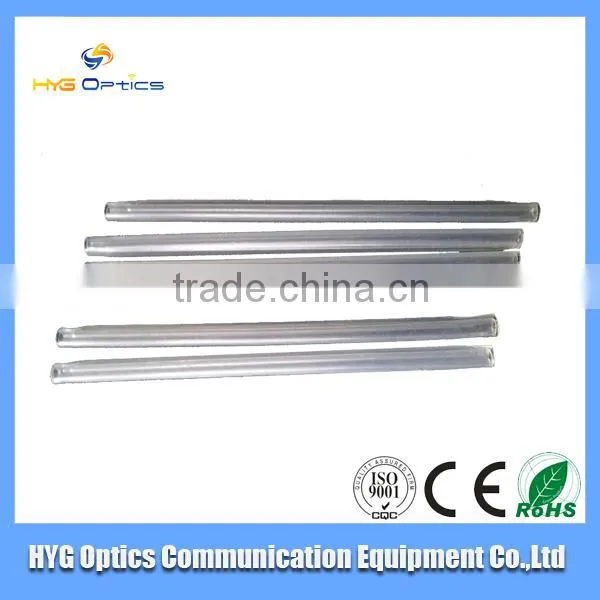

Shrinkable sleeve is applied to the optical fiber closure to fix and protect the optical fiber when splicing.

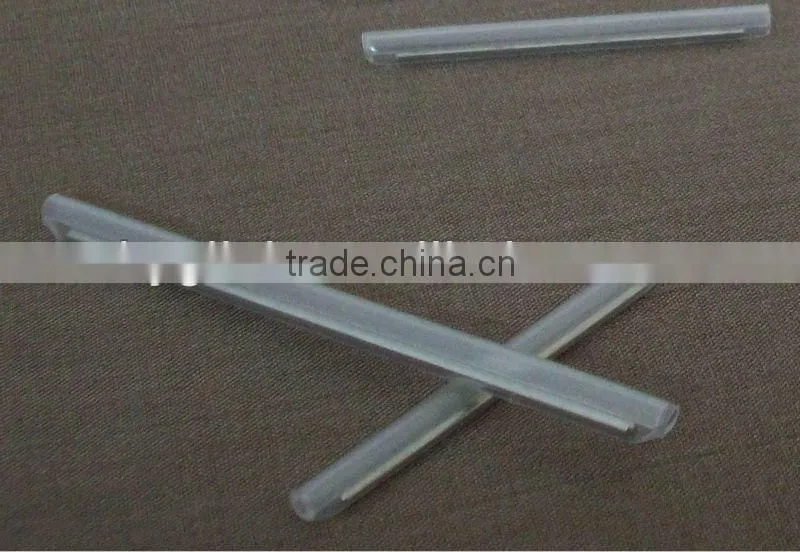

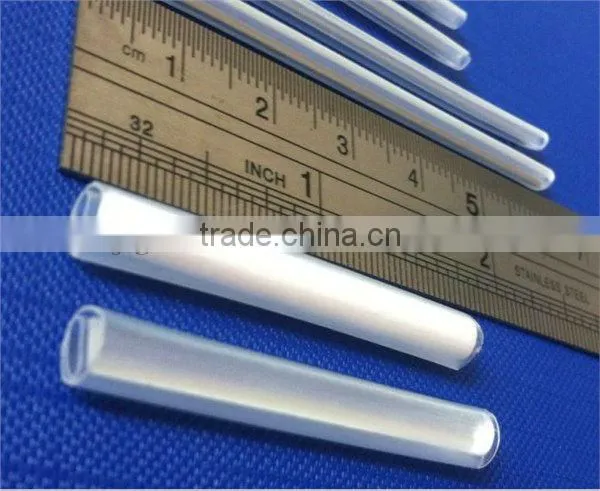

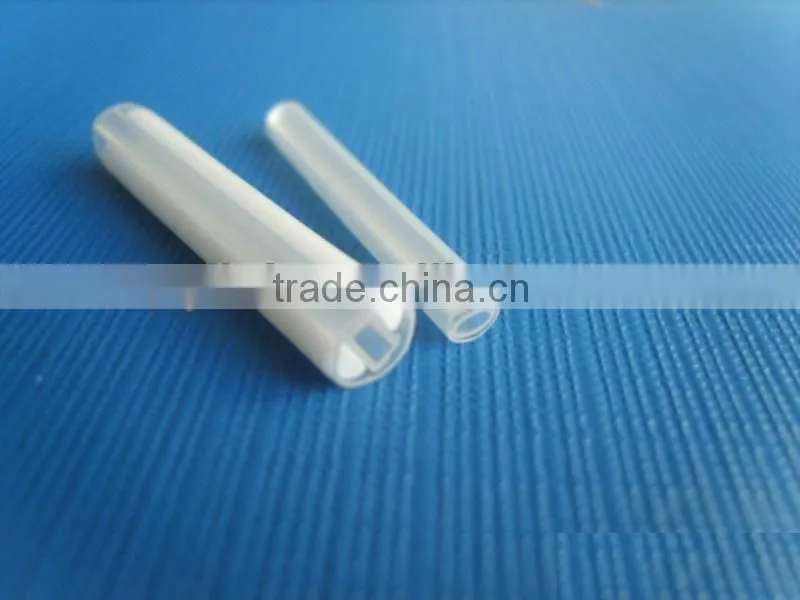

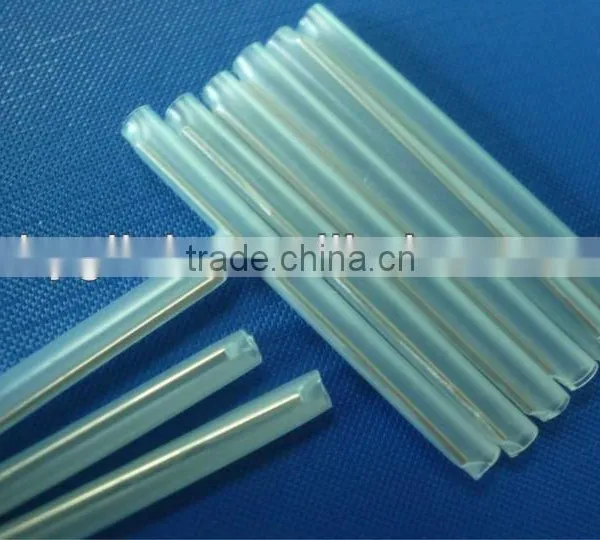

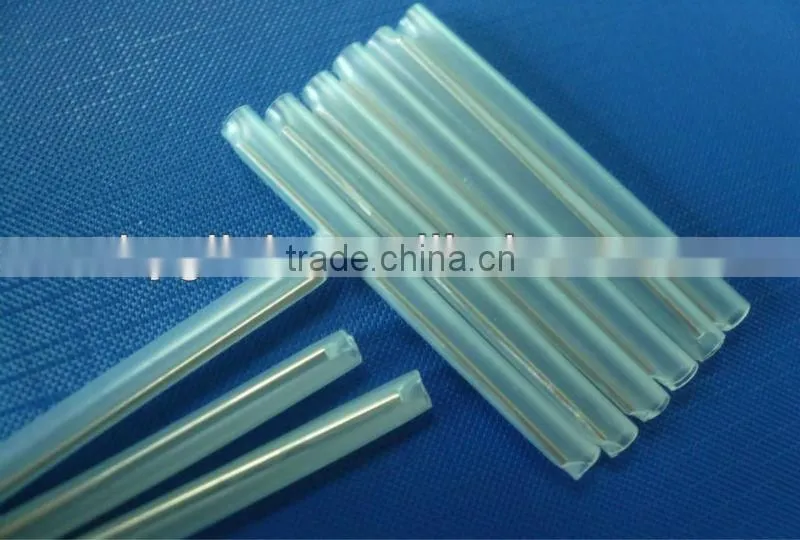

The sleeve can be divided into two types(single and mass) according to the function. The single type is used for the single-fiber, and the mass type is used for the ribbon fiber. It is different in the reinforcement between two types. The single one realizes the reinforcement by the stainless steel needles, the later one via the ceramic reinforcement member to realize the function.
Mass means there are several cores for the fiber. So the mass sleeve includes 4cores,6cores,8cores,12cores(for types).
Shrinking Temperature (°C) | 110 ~ 130 |
Radial Shrinking Rate (%) | >50 |
Axial Shrinking Rate (%) | <10 |
Low Temperature Property | No crackle at -55°C lasting 4 hours |
Normal Operation Temperature (°C) | -55°C ~ + 135°C |
Normal Operature Relative Humidity | ≤95% |
Spark- over Strength (kV/mm) | ≥20 |
Tensile Strength (Mpa) | 20 |
Loss at -40°C | 0.03dB |
Loss at +60°C RH95% | 0.02dB |
Standard (for Ribbon 45mm Length
Type | 4~6 fiber Single Ceramic Bar | 4~6 fiber Double Ceramic Bar | 8~12 fiber Single Ceramic Bar | 8~12 fiber Double Ceramic Bar | |
Outer Tube | Outer Diameter | 4.4±0.1 | 4.8±0.1 | 5.8±0.1 | 5.8±0.1 |
Thickness | 0.2±0.05 | 0.2±0.05 | 0.25±0.05 | 0.25±0.05 | |
Length | 42.0±1 | 42.0±1 | 42.0±1 | 42.0±1 | |
Material | Flexible Polyolefin | Flexible Polyolefin | Flexible Polyolefin | Flexible Polyolefin | |
Inner Tube | Inner Diameter | 2.6 x 1.6±0.1 | 2.6 x 1.6±0.1 | 3.5 x 2.2±0.1 | 3.5 x 2.2±0.1 |
Length | 0.3±0.1 | 0.3±0.1 | 0.5±0.1 | 0.5±0.1 | |
Thickness | 40.0±1 | 40.0±1 | 40.0±1 | 40.0±1 | |
Material | EVA | EVA | EVA | WVA | |
Ceramic Bar | Diameter | 3.0±0.2 | 3.0±0.2 | 4.0±0.2 | 4.0±0.2 |
Length | 40.0±0.5 | 40.0±0.5 | 40.0±0.5 | 40.0±0.5 | |
Amount | 1 | 2 | 1 | 2 | |
Material | 95 Ceramic | 95 Ceramic | 95 Ceramic |
| |
