Professional Manufacturer FBT Optical Splitter/catv Optical Splitter for Fiber Network Equipment

US$ 2.85 - 7.76 MOQ: 50 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

HYG

Model Number:

hyg-PL-0068

Shenzhen Haiyu Optics Communication Equipment Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name HYG

Model Number hyg-PL-0068

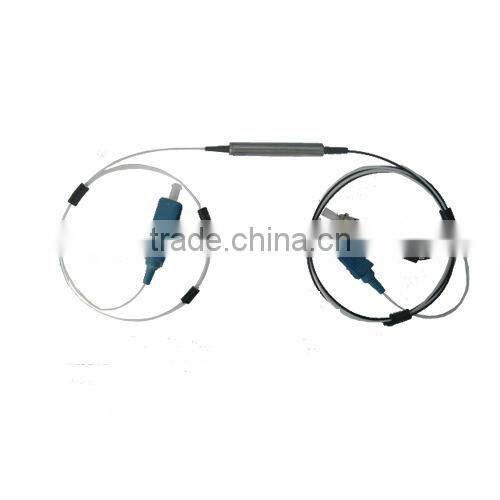

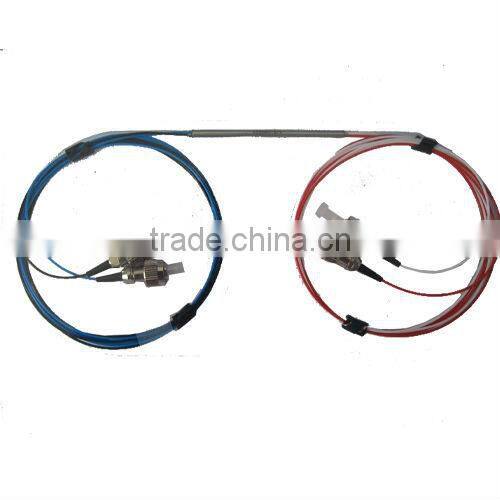

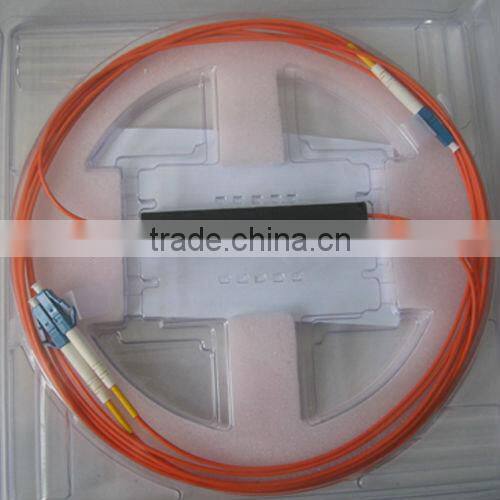

FBT optical splitter is used for fiber optic signal splitting in PON networks: The compact size

makes them suitable for installation in splice trays and placed in joint closures, cabinets or optical termination panels

The FBT optical splitter are available with one or two input ports and up to 64 output ports.

FBT optical splitter :

1.SM&MM plc splitter
2.Low insertion loss and low PDL
3.High reliability and channel

FBT optical splitter application:

LAN, WAN and Metro Networks

FTTH project & FTTX Deployments

CATV System

GPON, EPON

Fiber Optic Test Equipment

Data-base Transmit Broadband Net

FBT optical splitter technical specifications
Wavelength(nm)	1260-1650
Parameters	1×4	1×8	1×16	1×32	1×64	2×4	2×8	2×16	2×32
Insertion Loss(with connector)(dB)	≤7.4	≤10.7	≤13.7	≤16.9	≤21	≤7.8	≤11.5	≤14.5	≤17.7
Insertion Loss(W/O connector)(dB)	≤7.7	≤11.2	≤14.2	≤17.5	≤21.5	≤8.3	≤12	≤15	≤18.2
Uniformity (dB)	≤0.8	≤1.0	≤1.4	≤1.9	≤2.7	≤1.7	≤1.7	≤2.2	≤2.7
PDL(dB)	≤0.3	≤0.3	≤0.3	≤0.3	≤0.4	≤0.2	≤0.4	≤0.4	≤0.4
Size(bare bype) (H×W×L)(mm)	4×4×50			4×7×50	4×12×60	4×4×50			4×7×50
Return Loss(dB)	>50
Directivity(dB)	>55
Temperature Range(°C)	-40~+75
Storage Temperature(°C)	-40~+85
