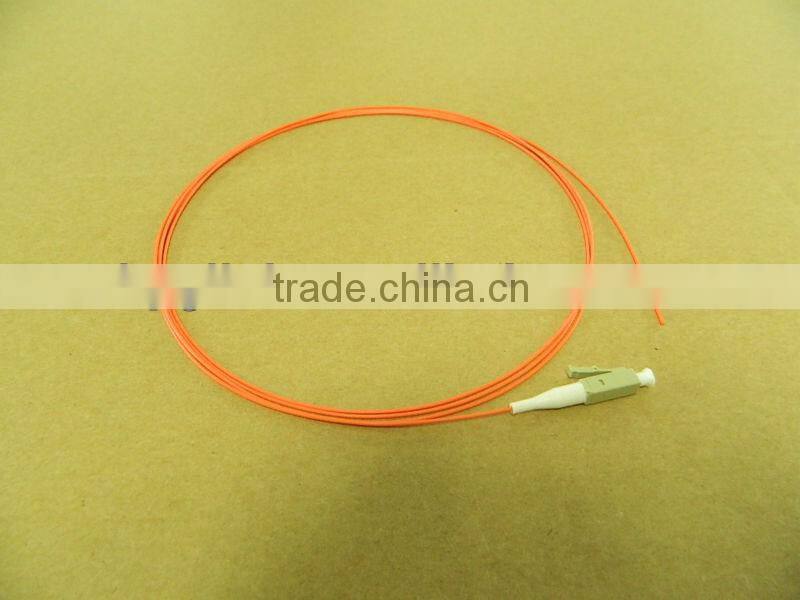

High Quality Fiber Optical Sc/apc Pigtail,5m sc Optic Pigtail for Network Solution

High Quality Fiber Optical Sc/apc Pigtail,5m sc Optic Pigtail for Network Solution thumbnail-1
High Quality Fiber Optical Sc/apc Pigtail,5m sc Optic Pigtail for Network Solution photo-1
US$ 0.78 - 2.88 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HYG
Model Number:
HYG-FC-SMA-3.0-1.5M
Contact Supplier Request Quote Chat Now
Shenzhen Haiyu Optics Communication Equipment Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name HYG
Model Number HYG-FC-SMA-3.0-1.5M

Specifications

fiber optical sc/apc pigtail
1.material:LSZH/PVC/PU
2.indoor
3.LC/FC/ST/SC connectors
4.CE ,ROHS and ISO 9001

  fiber optical sc/apc pigtail for network installation



Applied range

1 Optical fiber communication system

2 Optical access network

3 Optic-fiber Date Communication

4 Optical-fiber CATV

5 A local area network (LAN)

6 Test Equipment



Order informations

HYG-ST/ PC – ST/ PC/ SM/ 2C/ 3.0 – 1M

          1     2      1     2     3      4     5        6

1 Connector types:  FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA

2 Ferrule End-face: PC, APC

3 Fiber Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)

4 Cable Quantity: “2C” means duplex,C means simple

5 Cable Diameter: 3.0mm, 2.0mm, 0.9mm

6 Length:1, 2, 3 meter or customized length

7 Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum



Technical parameters

1 The min bending radius: 3.8 cm

2 Operating temperature range: - 40 ~ 85 °C

3 connector materials: ceramic plug core

4 Min bandwidth: 200 MHZ. Km / 850 nm, 500 MHZ. Km / 1300 nm

5 Repeat plug: < 0.2 dB, each 500 times plug

6 Min reflection loss: 20 db

7 Max return loss:-50dB



ITEM

TEST conditions

Single mode

Multi mode

Optical properties

Insertion loss

UPC

1.31um,LED

<=0.3dB

<= 0.3dB

APC

1.31um,LED

<= 0.3dB

<= 0.3dB

Return loss

UPC

1.31um,LED

>=50dB

>=35dB

APC

1.31um,LED

>=60dB



Mechanical properties

Impact test

HIGH:1.8   8 TIMES

<0.1dB

<0.1dB

Vibration experiment

5-50HZ,1mm Full amplitude

<0.1dB

<0.1dB

Plug life

More than 1000 times

<0.1dB

<0.1dB

tensile strength

>100N,

<0.1dB

<0.1dB

Environment characteristics

Temperature Cycling Test

-25°C~+70°C,5 circle

<0.2dB

<0.2dB

high-temperature test

+80°C,100 hours

<0.2dB

<0.2dB

Low-temperature test

-40°C,100 hours

<0.2dB

<0.2dB

Damp and hot test

+25°C~+65°C,Relative humidity 93%,100 hours

<0.2dB

<0.2dB



Environmental Reliability Test



The performance of the patchcords has been carefully designed to meet the IEC standards, GR-326-CORE, in the test of optical characteristics, vibration test, thermal cycling, impact resistance, salt spray erosion, thermal aging, humidity resistance and others

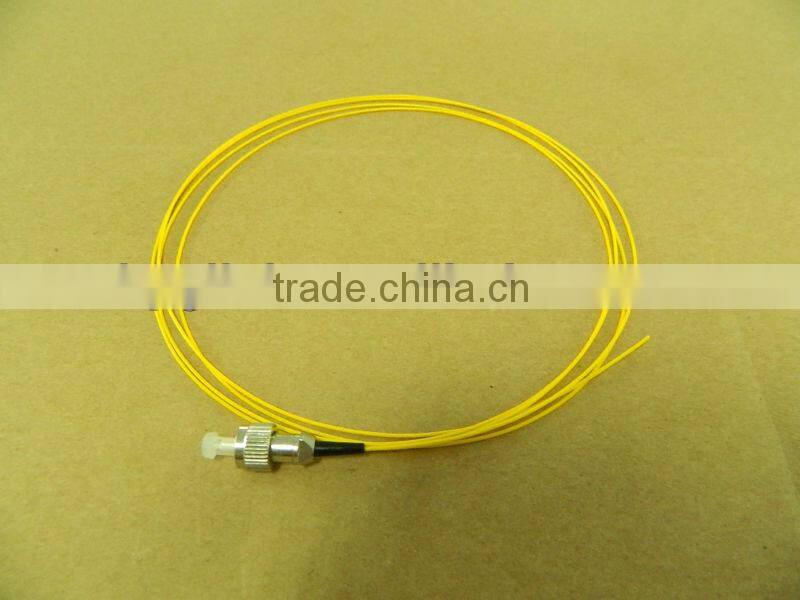

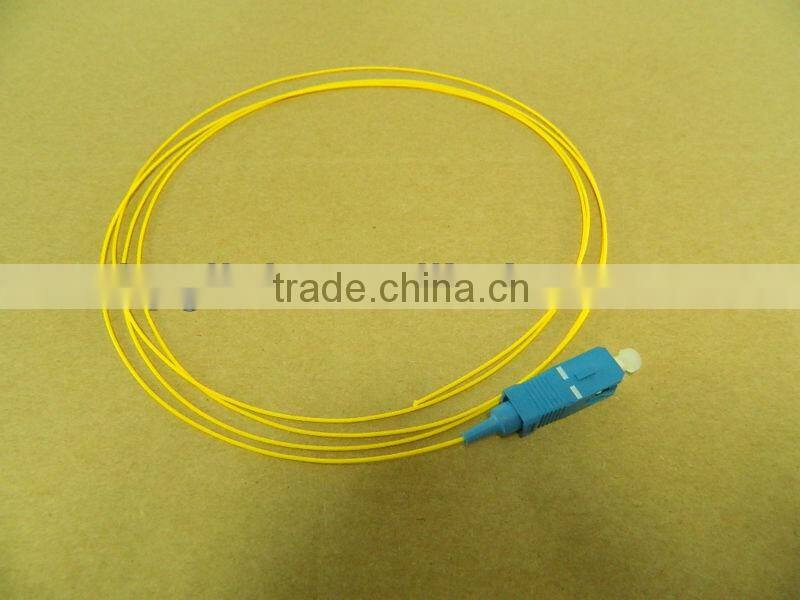

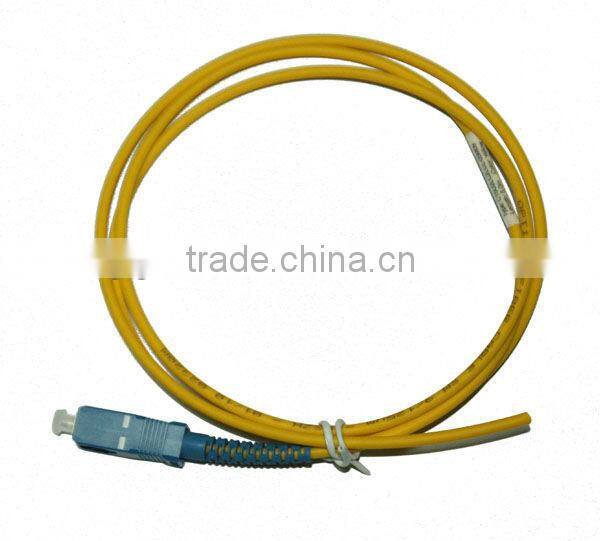

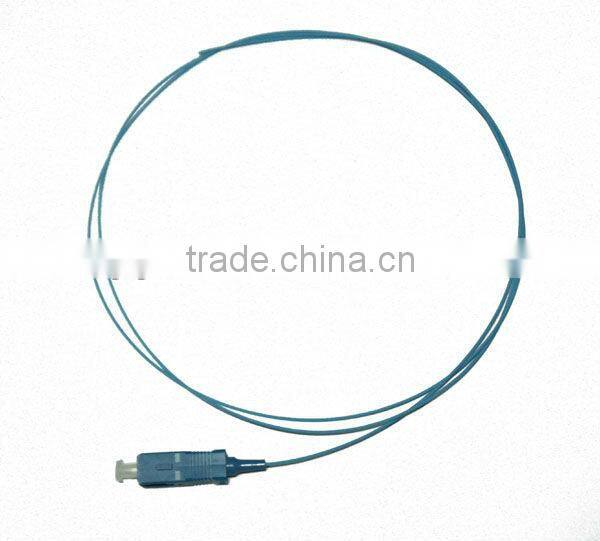

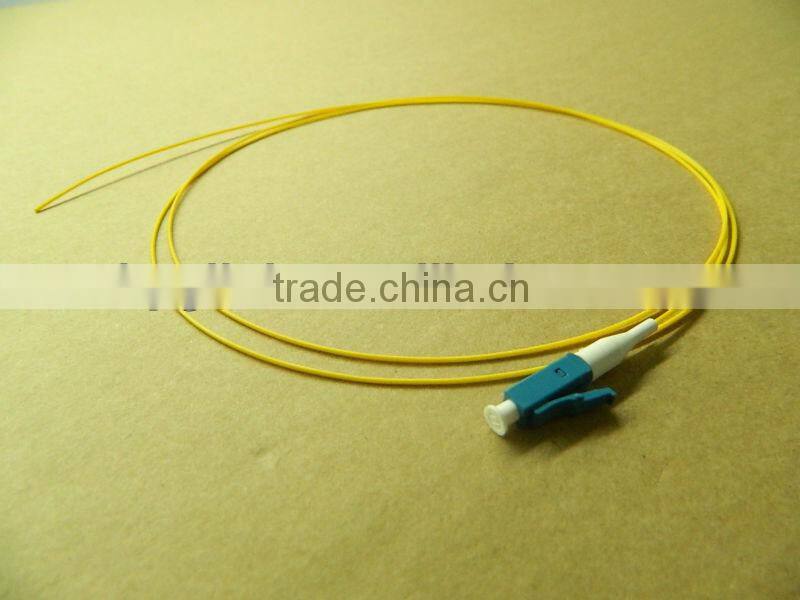

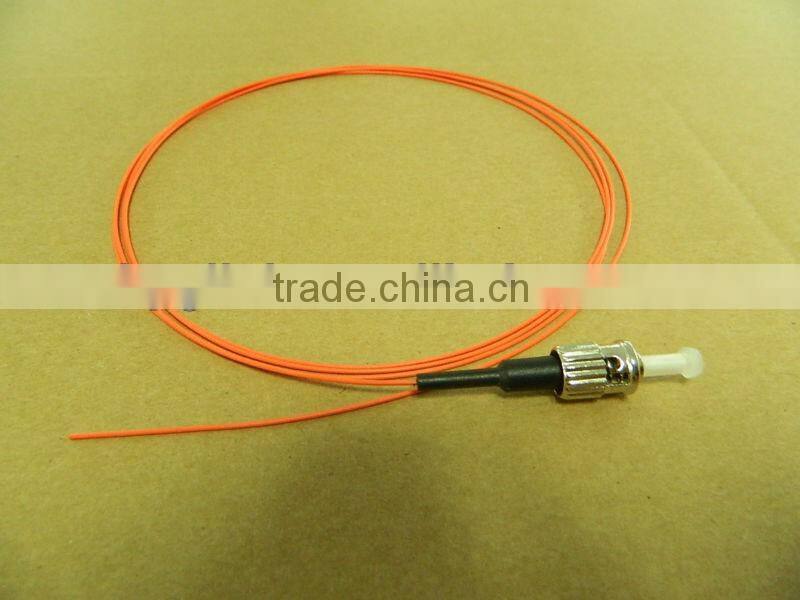

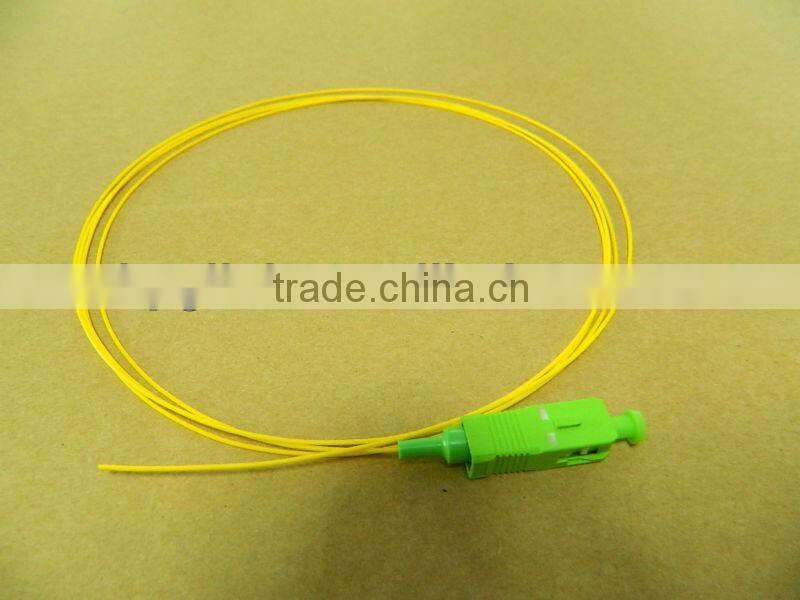

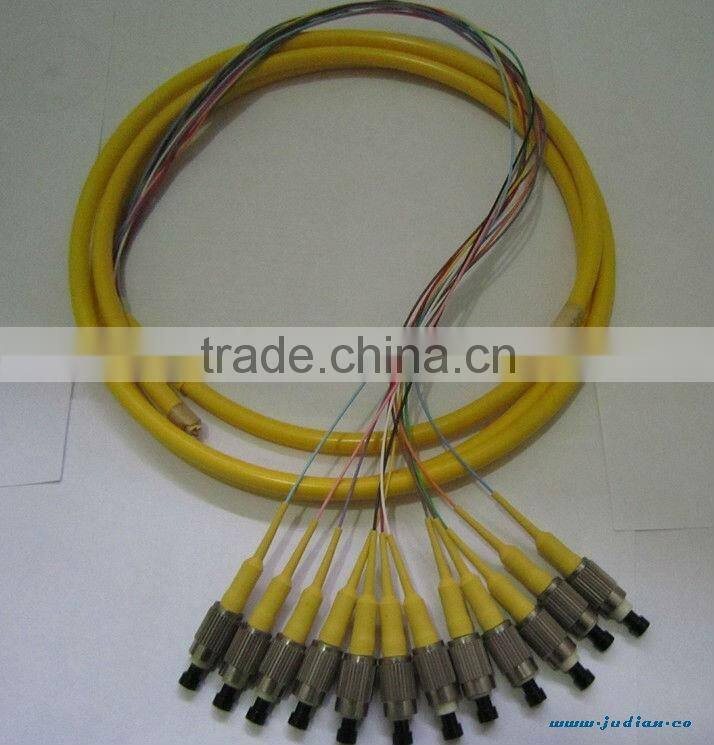

 Other types about FO pigtail:

High Quality fiber optical sc/apc pigtail,5m sc optic pigtail for network solutionHigh Quality fiber optical sc/apc pigtail,5m sc optic pigtail for network solutionHigh Quality fiber optical sc/apc pigtail,5m sc optic pigtail for network solutionHigh Quality fiber optical sc/apc pigtail,5m sc optic pigtail for network solutionHigh Quality fiber optical sc/apc pigtail,5m sc optic pigtail for network solutionHigh Quality fiber optical sc/apc pigtail,5m sc optic pigtail for network solutionHigh Quality fiber optical sc/apc pigtail,5m sc optic pigtail for network solutionHigh Quality fiber optical sc/apc pigtail,5m sc optic pigtail for network solutionHigh Quality fiber optical sc/apc pigtail,5m sc optic pigtail for network solutionHigh Quality fiber optical sc/apc pigtail,5m sc optic pigtail for network solutionHigh Quality fiber optical sc/apc pigtail,5m sc optic pigtail for network solution
