1m 2m 3m 5m 10m 20m Fiber Patch Cable With lc st sc fc Connector

1m 2m 3m 5m 10m 20m Fiber Patch Cable With lc st sc fc Connector photo-1
US$ 2.965 - 9.317 MOQ: 200 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
HYG
Model Number:
hyg-SC-0312
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name HYG
Model Number hyg-SC-0312

Specifications

LSZH fiber optic patch cord:
1.High repeatability
2.Competitive price
3.Fast delivery time
4.Low insertion loss

Manufacturer LC/SC/ST/FC/MPO/MTRJ/E2000 Singlemode/Multimode fiber optic patch cable for network equipments

Features:

1.High repeatability & credibility
2.Competitive price
3.Fast delivery time
4.Low insertion loss





Product Information:





Single-mode

Multimode



PC

UPC

APC

PC

Insertion Loss

0.2dB

0.2dB

0.2dB

0.2dB

ReturLoss

40dB

50dB

60dB

N/A

OperatinWavelength

1310nm, 1550nm

850nm, 1300nm

Repeatability

0.1dB

Working Temperature

-20~+60°C

Service Life

>1,000 mating cycles





Applications:



1,Optical fiber communications systems;

2,Optical fiber access network;

3,Optical fiber CATV.

4,Optical fiber test equipments;

5,Optical fiber data communications;

6,LAN





Ordering Informations:



 ST/ PC – ST/ PC/ SM/ 2C/ 3.0 – 1M

  1     2      1     2     3      4     5      6



1 Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO,      DIN, D4, SMA

2 Ferrule End-face: PC, APC

3 Fiber Type: Single-mode (SM: 9/125um), Multimode (MM:        50/125um or 62.5/125um)

4 Cable Quantity: “2C” means duplex,C means simple

5 Cable Diameter: 3.0mm, 2.0mm, 0.9mm

6 Length:1, 2, 3 meter or customized length

7 Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum

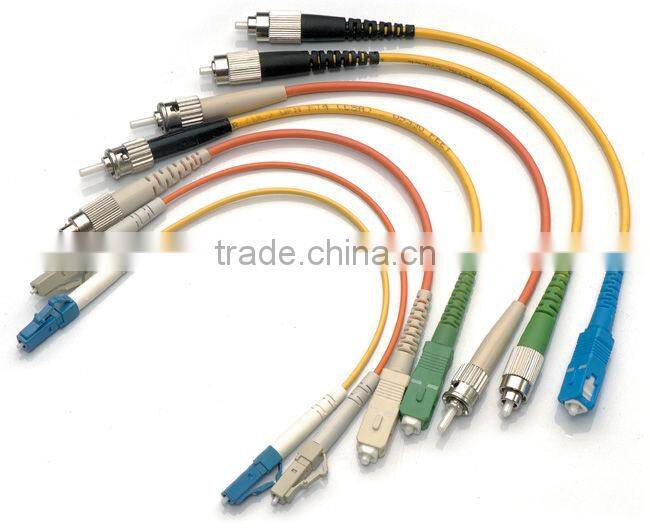

Patch cord pictures:







1m 2m 3m 5m 10m 20m fiber patch cable with lc st sc fc connector

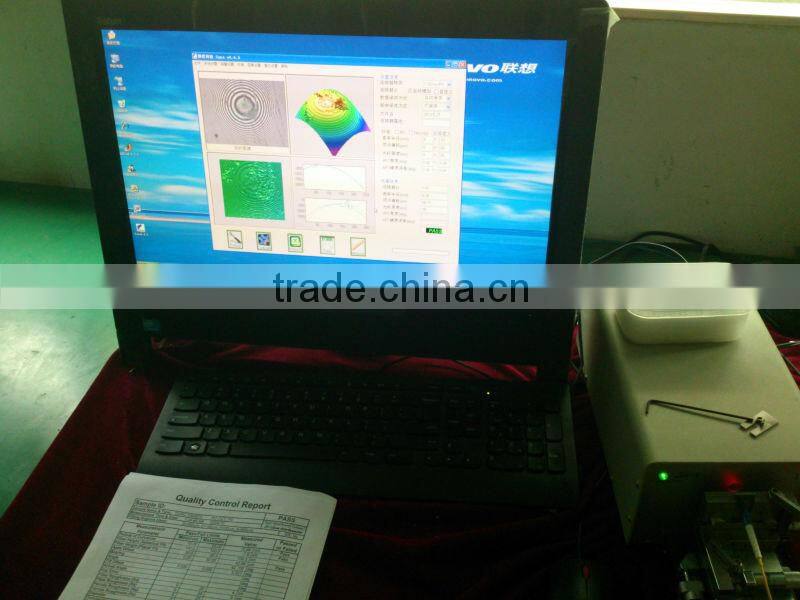

Factory Photo:



1m 2m 3m 5m 10m 20m fiber patch cable with lc st sc fc connector
