1m,3m,5m,10m 2.0mm SC/PC-ST SX SM indoor PVC&LSZH ST patch cord (jumpers) for communication network equipment
- 10000 Piece / Pieces per Month
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
- lc sx armoured fiber patch cord for network solution and project
- manufacturer supply 5m mpo fiber optic patch cord/adp fiber optic patch cord for network solution
- factory supply fiber optic patch cord for network solution and project solution
- free shipping metal ferrule fiber optic patch cord,mt ferrule patch cord for network solution and project
- free shipping optical fiber patch cord/jumper wire for network solution and project
- free shipping fiber optic patch cord cable for network solution and project
Product Details
Place of Origin: | Guangdong, China | Brand Name: | HYG | Model Number: | hyg-sc-0079 |
Packaging Details
carton or according to client requirement.
Product Description
Specifications
ST patch cord1.Low insertion loss
2.Manufacturer price
3.Fast delivery time
4.CE,ROHS,ISO9001
1m,3m,5m,10m 2.0mm SC/PC-ST SX SM indoor PVC&LSZH ST patch cord (jumpers) for communication network equipment
ST patch cord
1.Low insertion loss
2.Manufacturer price
3.Fast delivery time
4.CE,ROHS,ISO9001
ST patch cord key specifications:
Single-mode | Multimode | |||
PC | UPC | APC | PC | |
Insertion Loss | ≤0.2dB | ≤0.2dB | ≤0.2dB | ≤0.2dB |
Return Loss | ≥40dB | ≥50dB | ≥60dB | N/A |
Operating Wavelength | 1310nm, 1550nm | 850nm, 1300nm | ||
Repeatability | ≤0.1dB | |||
Working Temperature | -20~+60°C | |||
Service Life | >1,000 mating cycles |
ST patch cord applications:
1,Optical fiber communications systems;
2,Optical fiber access network;
3,Optical fiber CATV.
4,Optical fiber test equipments;
5,Optical fiber data communications;
6,LAN
Test parameters:
High-temperature test | 85±2°C,5000 hours |
Humid heat test | 75±2°C/90±5%RH,5000 hours |
Low-temperature test | -40±5°C,5000 hours |
Submerging test | 43±2°C/PH5.5±0.5,168 hours |
Temperature cycle test | -40±2°C~85±2°C,500 rounds |
Vibration test | 10Hz~2000Hz,amplitude of vibration 1.52mm,3 directions,4 hours/ direction |
Impact test | 1.8m height,3 directions,8 times/ direction |
ST patch cord order informations:
FC/ PC – FC/ PC/ SM/ 2C/ 3.0 – 1M
1 2 1 2 3 4 5 6
1 Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2 Ferrule End-face: PC, APC
3 Fiber Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4 Cable Quantity: “2C” means duplex,C means simple
5 Cable Diameter: 3.0mm, 2.0mm, 0.9mm
6 Length:1, 2, 3 meter or customized length
7 Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum

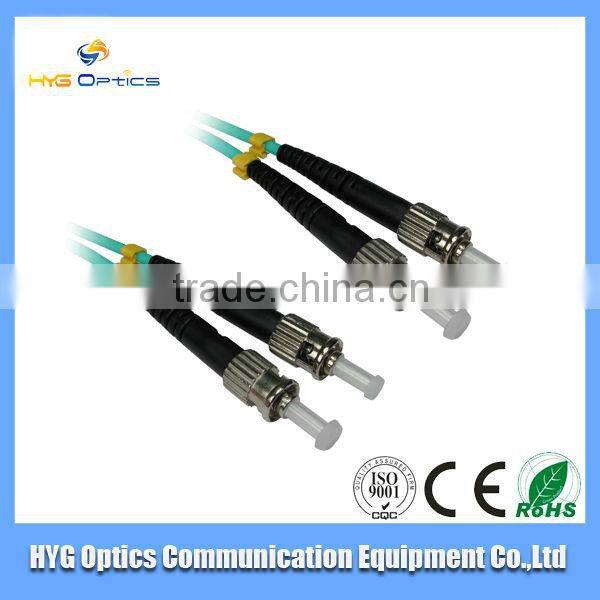

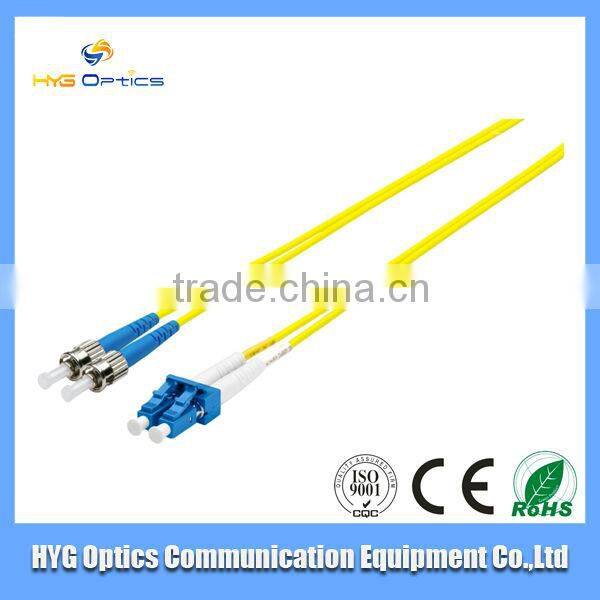

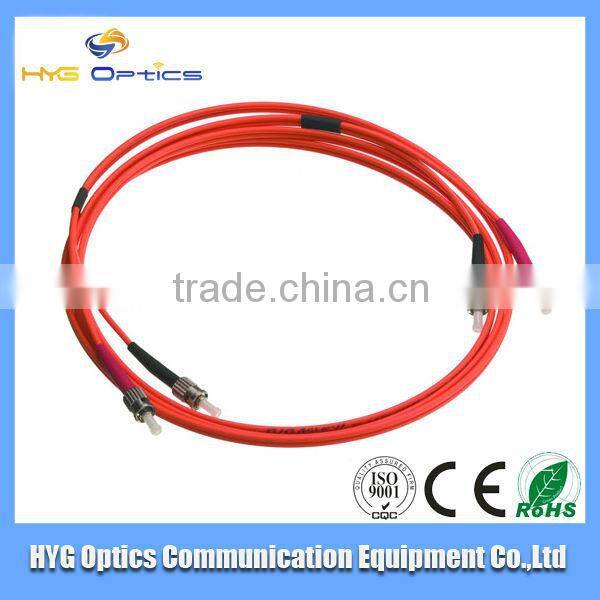

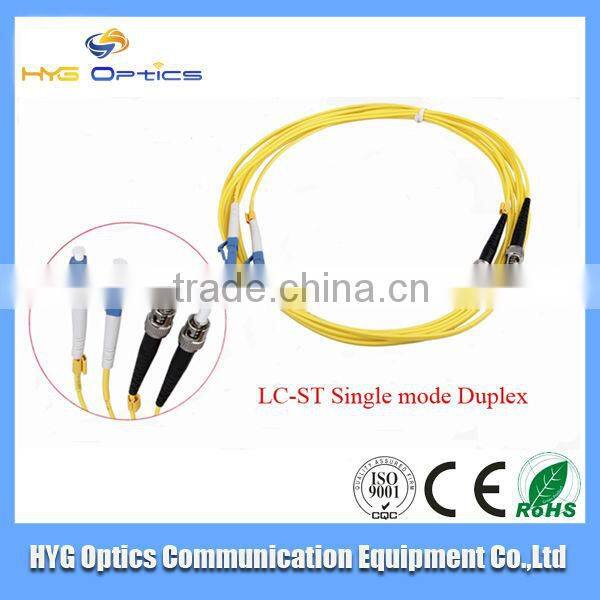

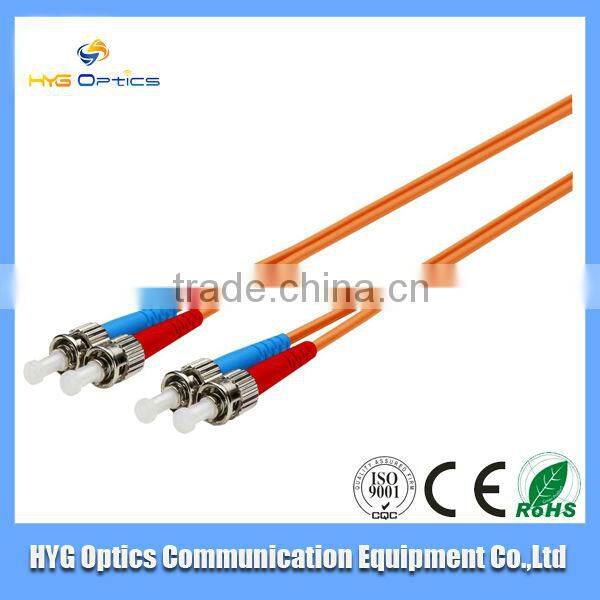

ST patch cord pictures:
Company Profile
About HYG Optics
The Haiyu Optics, founded in 2000, is focus on design and manufactured fiber optic communication products. It has developed a range of products including Indoor and outdoor optical cables, fiber optic jumpers, pigtails, connectors and adapters, network solution equipment like optic media converters, attenuators, tranceivers, optical models and other accessories. Widely used in telecom communication, mobile communication, network solution, radio and television, etc.
HYG Quality Assurance
Our ISO9001:2008 certified quality management systems have been refined for flexibility and efficiency, and produce a high quality, high reliability, low cost and diverse product range. Other quality system we complying with ISO14001, CE, Rohs and 5S system.
Advanced high precision test equipment: Insertion and return loss tester, 3D Interferometer.
The location
The company is located in Shenzhen, near by Hongkong, enjoying the convenient transportation. Our products are exported to USA, Germany, France, Russia, the UAE, Indonesia and so on. For our long-term development, our company cooperates with Corning, OFS, YFOC, CCTC, etc.
Our mission
QUALITY TO SURVIVE, INNOVATION FOR DEVELOPMENT.
