Specifications
patchcord:1.High repeatability
2.Competitive price
3.Fast delivery time
4.Low insertion loss
Professional manufacturer optical fiber patchcord with short delivery time
Features:
Patchcord
1.High repeatability & credibility
2.Competitive price
3.Fast delivery time
4.Low insertion loss
Patchcord key specifications
Single-mode |
Multimode |
|||
PC |
UPC |
APC |
PC |
|
Insertion Loss |
≤0.2dB |
≤0.2dB |
≤0.2dB |
≤0.2dB |
Return Loss |
≥40dB |
≥50dB |
≥60dB |
N/A |
Operating Wavelength |
1310nm, 1550nm |
850nm, 1300nm |
||
Repeatability |
≤0.1dB |
|||
Working Temperature |
-20~+60°C |
|||
Service Life |
>1,000 mating cycles |
|||
Applications:
1,Optical fiber communications systems;
2,Optical fiber access network;
3,Optical fiber CATV.
4,Optical fiber test equipments;
5,Optical fiber data communications;
6,LAN
Patchcord order informations:
ST/ PC – ST/ PC/ SM/ 2C/ 3.0 – 1M
1 2 1 2 3 4 5 6
1 Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2 Ferrule End-face: PC, APC
3 Fiber Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4 Cable Quantity: “2C” means duplex,C means simple
5 Cable Diameter: 3.0mm, 2.0mm, 0.9mm
6 Length:1, 2, 3 meter or customized length
7 Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum

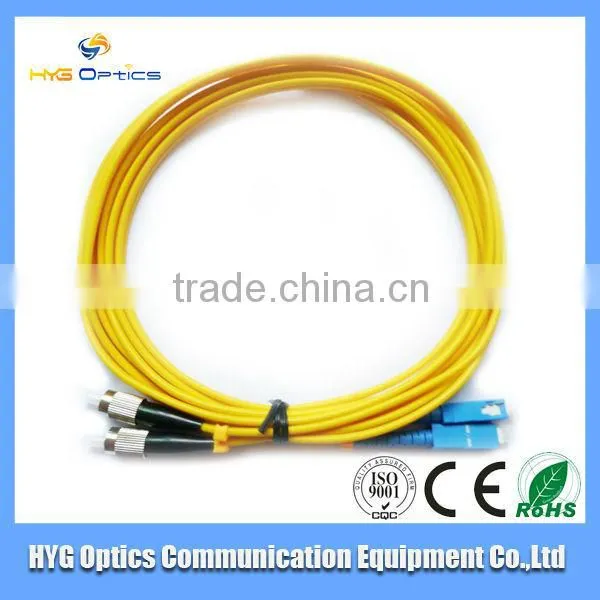

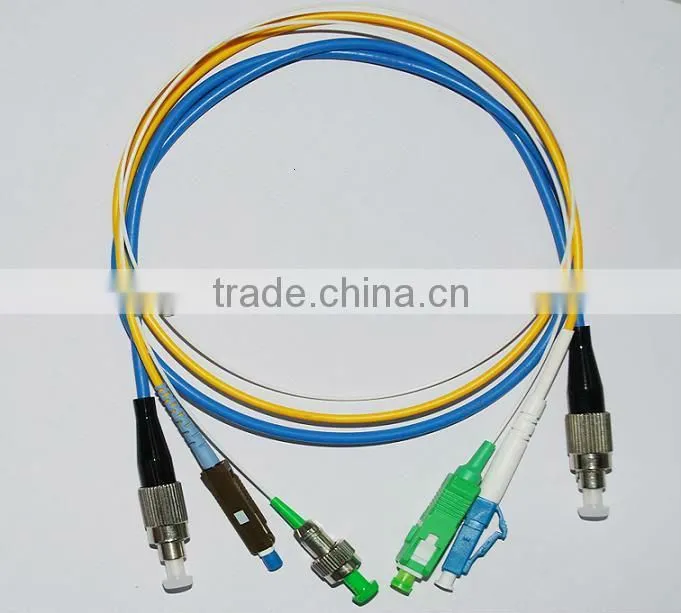

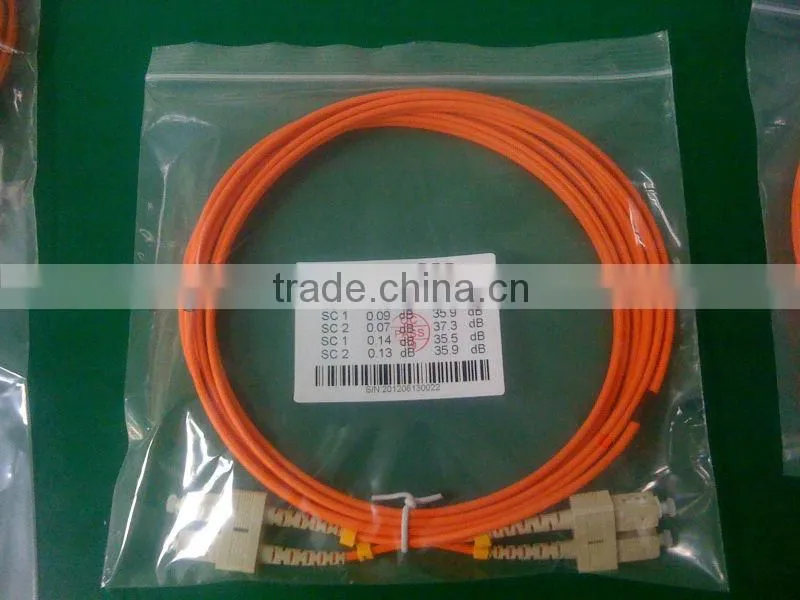

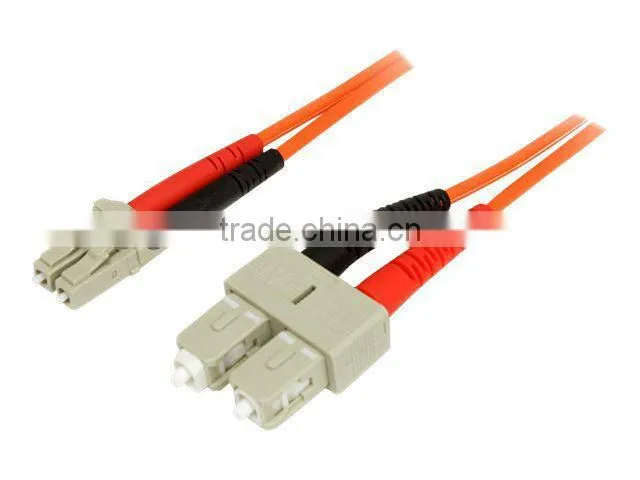

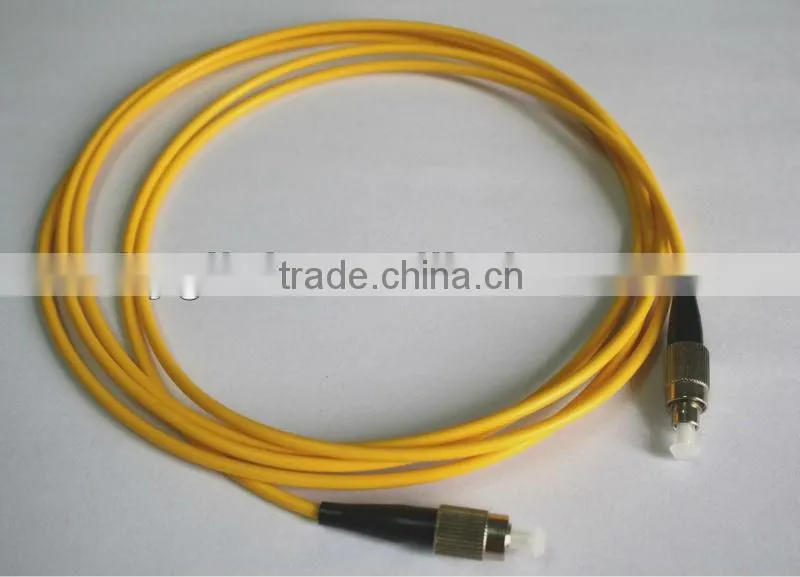

Patchcord pictures:
