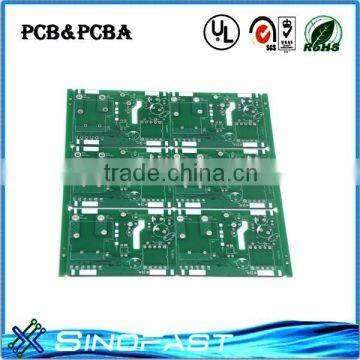

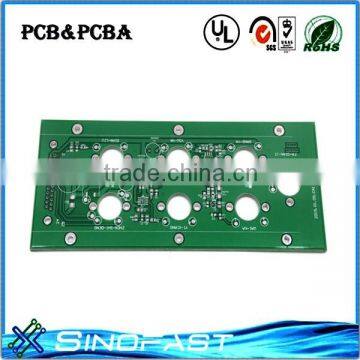

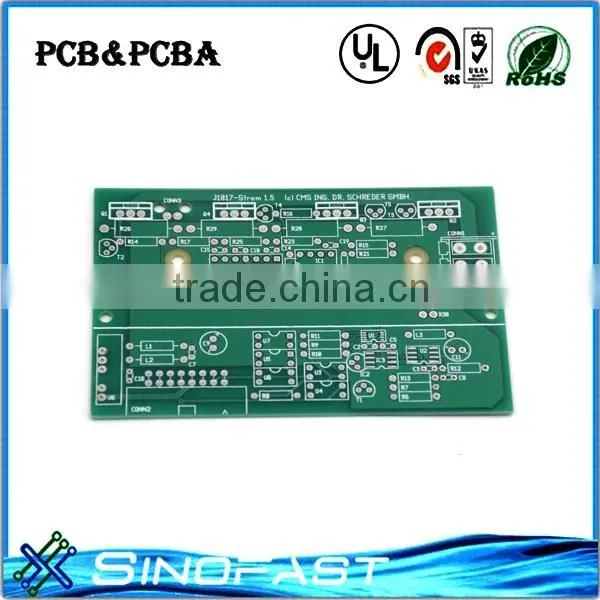

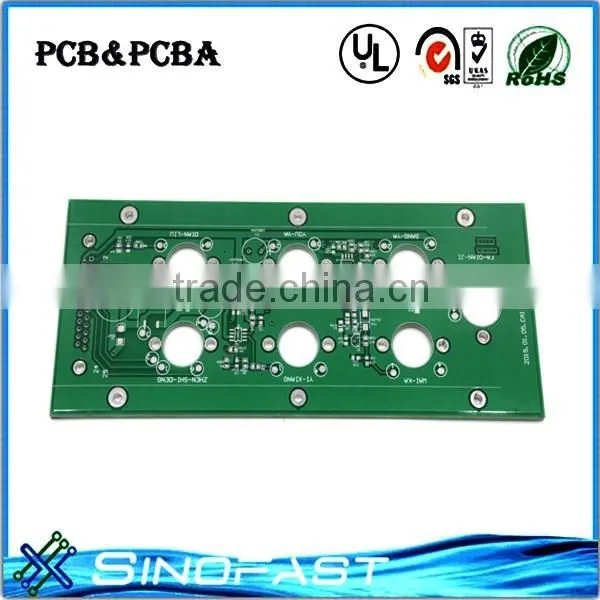

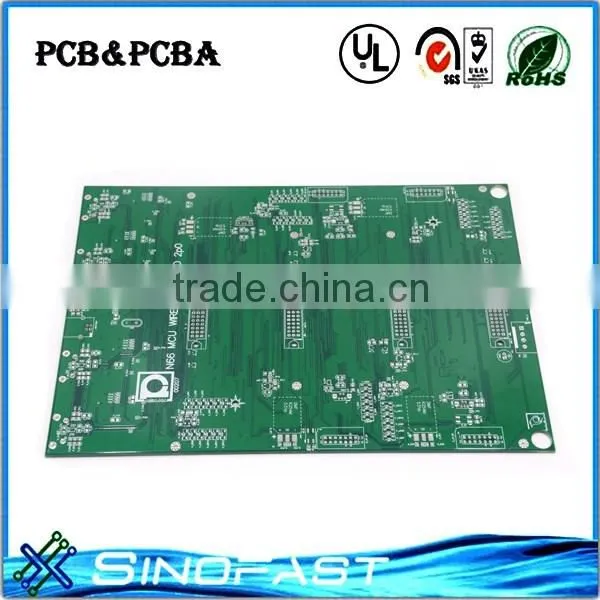

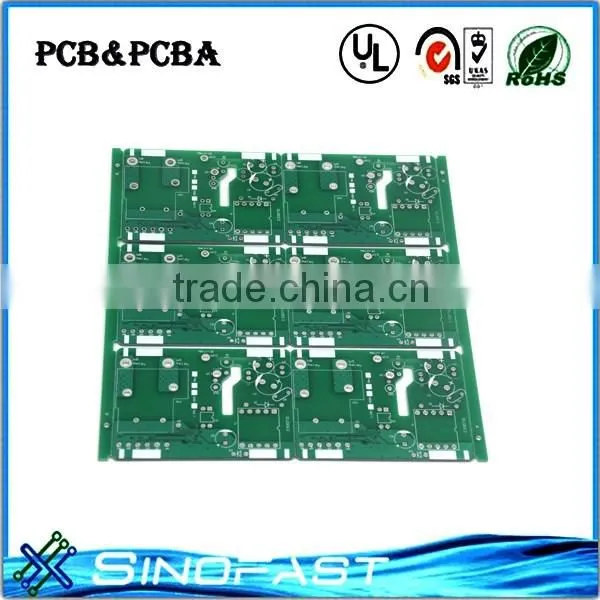

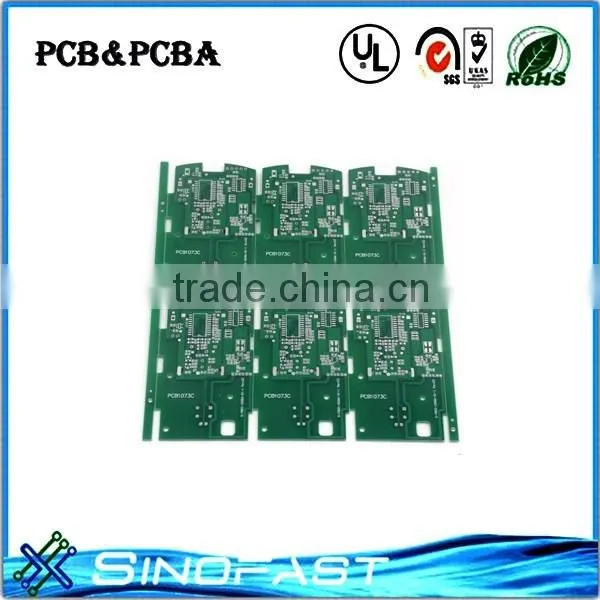

router pcb
- 10000 Square Meter / Square Meters per Month
- Shen Zhen
- T/T Credit Card
- USB Relay Output Module PCB Board for Home Automation
- PCB Roger Circuit Board with cheap cost & Fast supply
- Cheap cost Rogers PCB production , pcb sample
- Fast Supply Rogers 4350 PCB Circuit Board Prototype and mass pcb production
- High quality Rogers Printed Circuit board with fast supply , rogers material in stock
- 2 layers Taconic Material PCb /Special material pcb circuit board provided
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Sino Fast | Model Number: | Sino Fast1054 |
Number of Layers: | 12-Layer | Base Material: | FR4 | Copper Thickness: | 0.5oz |
Board Thickness: | 0.20mm | Min. Hole Size: | 10mil | Min. Line Width: | 4mil |
Min. Line Spacing: | 4mil | Surface Finishing: | HASL |
Product Description
My Skype ID:Fannieyang9898
Telephone: 13244796034
PCB Engineer Skype:peterlee8388
For PCB engineer question welcome to direct add our engineer Skype to talk
Welcome to Sinofast
ShenZhen SinoFast Electronics co.,Ltd. was established in April,2005,After years'efforts, the company has expanded rapidly and kept Introducing new production equipments.We have also trained a professional team and perfected the quality management system ranging. the manufacture ability of our company is expanded rapidly. The annual output of double-sided and multi-layer PCB exceeds 100,000 s
work step:
Certification
1.We have the comprehensive quality control system.
2.Reasonable price
3.Quick turn delivery time from 24hours.
4.Certification(ISO/UL/RoHS).
5.11 years experience in exporting service.
6.We have no MOQ.
7.Product in high quality,Strict through theAOI(Automated Optical Inspection),
QA/QC,fly porbe ,E-testing.
Product Technology:
| High precision prototype | PCB bulk production | |
Max Layers | 1-28 layers | 1-14 layers | |
MIN Line width(mil) | 3mil | 4mil | |
MIN Line space(mil) | 3mil | 4mil | |
Min via (mechanical drilling) | Board thickness≤1.2mm | 0.15mm | 0.2mm |
Board thickness≤2.5mm | 0.2mm | 0.3mm | |
Board thickness>2.5mm | Aspect Ration≤13:1 | Aspect Ration≤13:1 | |
Aspect Ration | Aspect Ration≤13:1 | Aspect Ration≤13:1 | |
Board thickness | MAX | 8mm | 7mm |
MIN | 2 layers:0.2mm;4 layers:0.35mm;6 layers:0.55mm;8 layers:0.7mm;10 layers:0.9mm | 2 layers:0.2mm;4 layers:0.4mm;6 layers:0.6mm;8layers:0.8mm | |
MAX Board size | 610*1200mm | 610*1200mm | |
Max copper thickness | 0.5-6oz | 0.5-6oz | |
Immersion Gold/ Gold Plated Thickness | Immersion Gold:Au,1—8u” |
| |
Hole copper thick | 25um 1mil | 25um 1mil | |
Tolerance | Board thickness | Board thickness≤1.0mm:+/-0.1mm | Board thickness≤1.0mm:+/-0.1mm |
Outline Tolerance | ≤100mm:+/-0.1mm | ≤100mm:+/-0.13mm | |
Impedance | ±10% | ±10% | |
MIN Solder mask bridge | 0.08mm | 0.10mm | |
Plugging Vias capability | 0.25mm--0.60mm | 0.70mm--1Description |
Factory show
Contact us
Floor 6,G building,HuaFeng industrial park, Tel: 0755-27348887 Skype:Fannieyang9898
HangCheng Road.Xixiang,Shenzhen,China Cellphone:+86 13244796034 ID:Cn1045149639
If you want to know more about our company,please visit our webside:
Your Satisfaction Is Our Pleasure!
