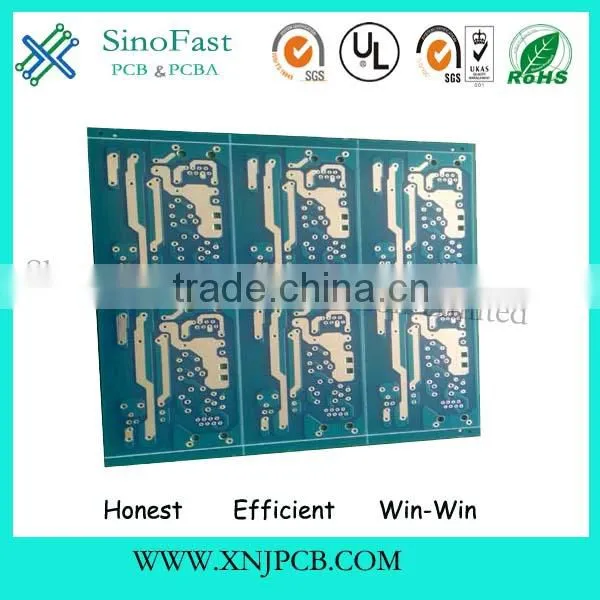

Help CenterBlue Solder Mask Printed Circuits Boards With Immersion Gold for Bluetooth Board
Related Products
Specifications
Blue Solder Mask Printed Circuits Boards with Immersion Gold for Bluetooth Board- Company Information
Welcome to Sinofast
We are a profesional PCB and PCBA manufacturer in China, we can supply PCB Design,PCB Layout,PCB
Fabrication,PCBA Services for our customer. Pls contact us for more informations if you have any interests
in our products. please attention our production.
Quality Control
Factory Manufacture Capability.
High precision prototype
PCB bulk production
Max Layers
1-28 layers
1-14 layers
MIN Line width(mil)
3mil
4mil
MIN Line space(mil)
3mil
4mil
Min via (mechanical drilling)
Board thickness≤1.2mm
0.15mm
0.2mm
Board thickness≤2.5mm
0.2mm
0.3mm
Board thickness>2.5mm
Aspect Ration≤13:1
Aspect Ration≤13:1
Aspect Ration
Aspect Ration≤13:1
Aspect Ration≤13:1
Board thickness
MAX
8mm
7mm
MIN
2 layers:0.2mm;4 layers:0.35mm;6 layers:0.55mm;8 layers:0.7mm;10 layers:0.9mm
2 layers:0.2mm;4 layers:0.4mm;6 layers:0.6mm;8layers:0.8mm
MAX Board size
610*1200mm
610*1200mm
Max copper thickness
0.5-6oz
0.5-6oz
Immersion Gold/
Gold Plated Thickness
Immersion Gold:Au,1—8u”
Gold finger:Au,1—150u”
Gold Plated:Au,1—150u”
Nickel Plated :50—500u”Hole copper thick
25um 1mil
25um 1mil
Tolerance
Board thickness
Board thickness≤1.0mm:+/-0.1mm
1.0mm<Board thickness≤2.0mm:+/-10%
Board thickness>2.0mm:+/-8%Board thickness≤1.0mm:+/-0.1mm
1.0mm<Board thickness≤2.0mm:+/-10%
Board thickness>2.0mm:+/-8%Outline Tolerance
≤100mm:+/-0.1mm
100< ≤300mm:+/-0.15mm
>300mm:+/-0.2mm≤100mm:+/-0.13mm
100< ≤300mm:+/-0.15mm
>300mm:+/-0.2mmImpedance
±10%
±10%
MIN Solder mask bridge
0.08mm
0.10mm
Plugging Vias capability
0.25mm--0.60mm
0.70mm--1.00mm
PCB production equipment
Our customers
Our ServicesWe can do for you:
1-18 layer FR-4 PCB board, 1-4 layer Aluminum PCB
1-6 oz copper thickness
0.2 mm hole size
0.2 mm track width/space
Our PCBs are used for wide range of electronic products,
Like Medical devices, CCTV, Power supply, GPS, UPS, Set-top Box,
Telecomunication ,LED, etc.
The perfect choice,Sinofast
series 1. PCB,MCPCB,FPC,Rigid flexible pcb Samples we produced
for customers
series 2. PCB Assembly we produced for customers
Product DescriptionThe production process
Surface finishing
The scope of our products
Packaging & ShippingPackage show
FAQHow to work?Why choose us?
Description
1.Professional manufacturer of PCB and PCB assembly specialized in single-sided PCB, double-sided PCB, multilayer PCB, PCB layout and design and PCB assembly
2. Material Type: FR4,non-halogen material ,Aluminium Base,Cooper Base,high frequency material ,Thick copper foil,94-V0(HB),PI Material,HIGH TG:SL S1000-2,ITEQ:IT180
3. Surface treatment: HAL,Immersion Gold,Immersion Tin,Immersion silver,Gold Finger,OSP,HAL(Immersion Gold,OSP,Immersion silver,Immersion Tin)+Gold Finger
Application
Products are applied to a wide range of High-tech industries such as: LED, telecommunication, computer application, lighting, game machine, industrial control, power, automobile and high-end consumer electronics, ect. By unremitting work and effort to the marketing, products exports to American, Canada, Europe counties, Africa and other Asia-pacific countries
Advantage1.PCB factory directly
2.PCB Have the comprehensive quality control system
3.PCB good price
4.PCB quick turn delivery time from 48hours.
5.PCB certification(ISO/UL/RoHS)
6.8 years experience in exporting service
7.PCB is no MOQ/MOV.
8.PCB is high quality.Strict through theAOI(Automated Optical Inspection),QA/QC,fly porbe ,Etesting
