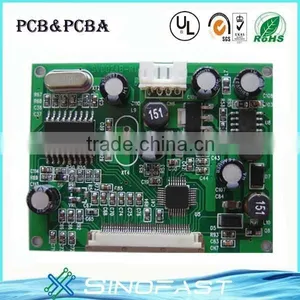

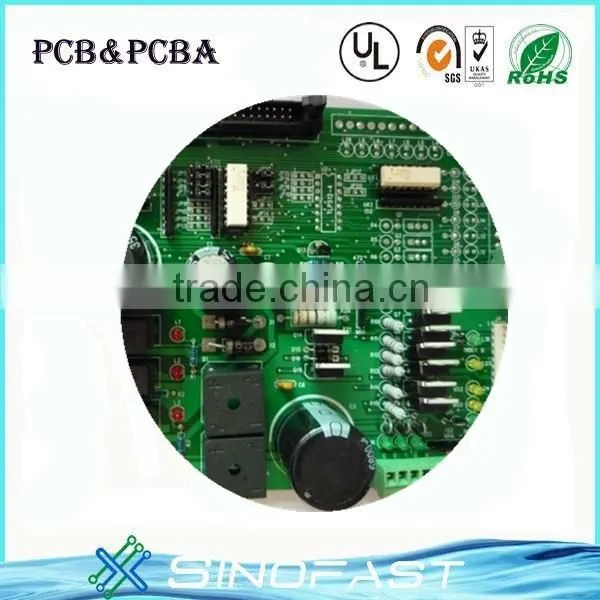

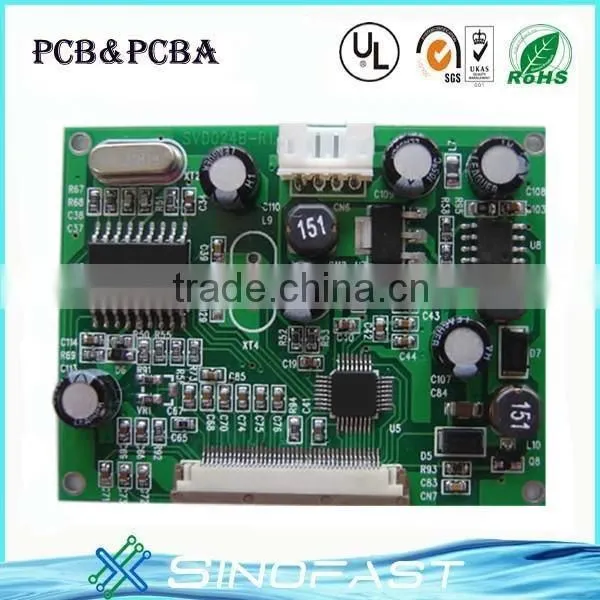

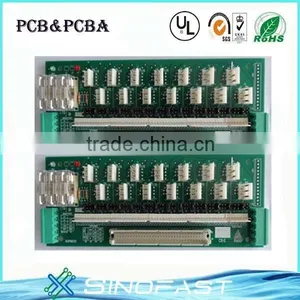

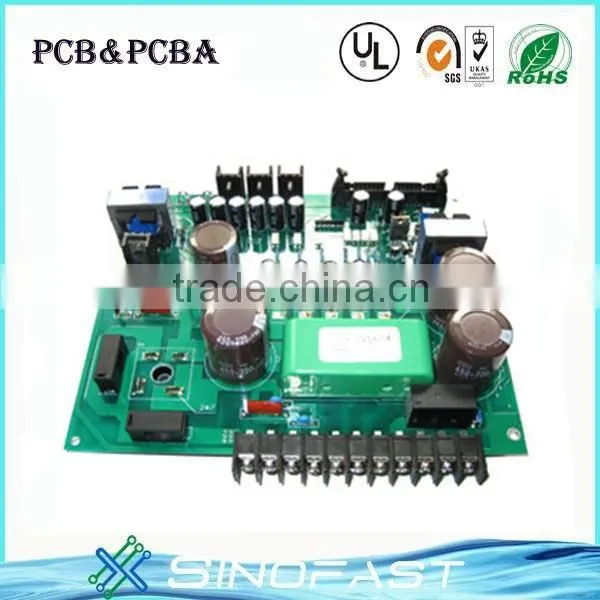

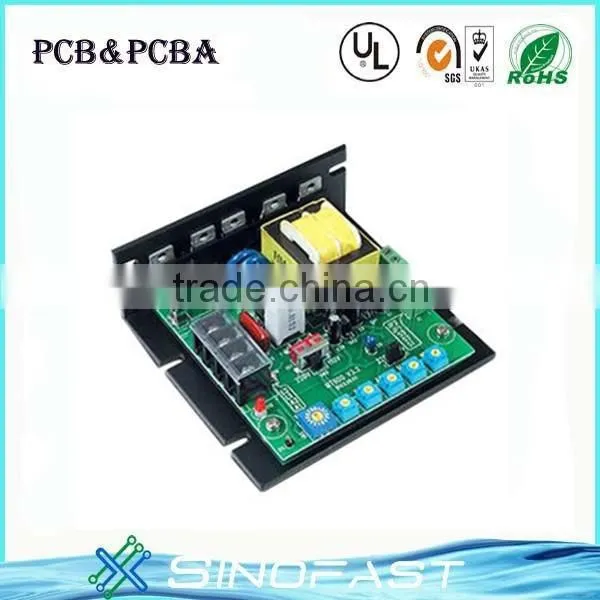

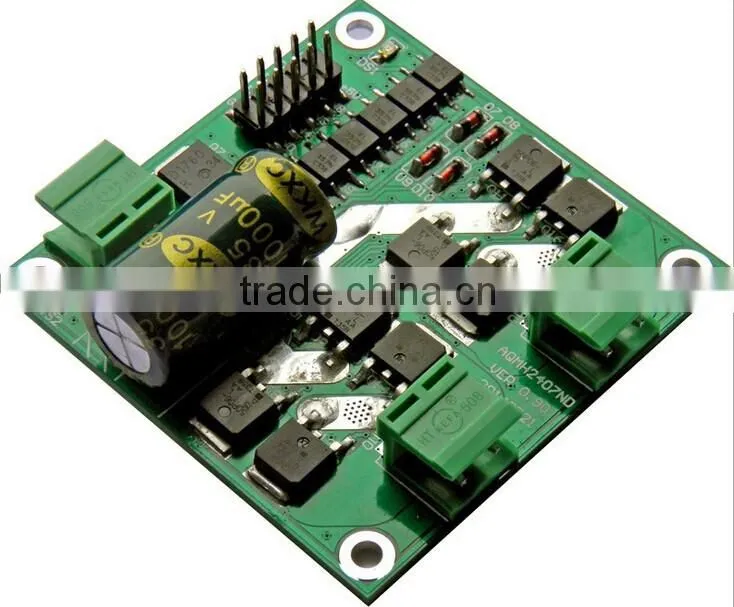

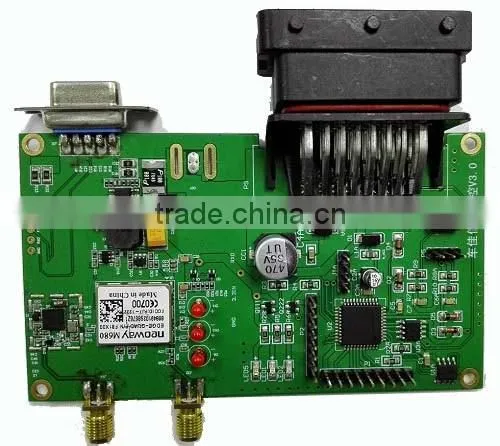

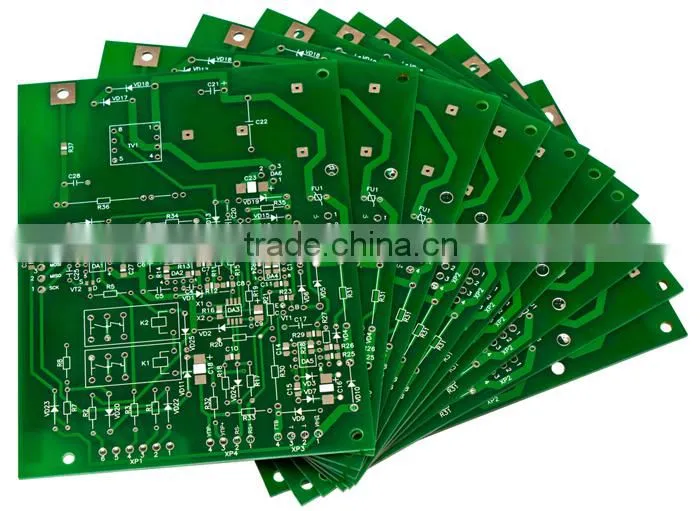

Multi-layer rigid PCB Board For Game Machine
Welcome to Sinofast
ShenZhen SinoFast Electronics co.,Ltd. was established in April,2005,After years'efforts, the company has expanded rapidly and kept Introducing new production equipments.We have also trained a professional team and perfected the quality management system ranging. the manufacture ability of our company is expanded rapidly. The annual output of double-sided and multi-layer PCB exceeds 100,000 square meters.,
Certification
Why to choose us?
1.PCB&PCBA factory directly.
2.We have the comprehensive quality control system.
3.Product in good price.
4.Quick turn delivery time from 48hours.
5.Certification(ISO/UL/RoHS).
6.8 years experience in exporting service.
7.We have no MOQ.
8.Product in high quality.Strict through theAOI(Automated Optical Inspection),QA/QC,fly porbe ,Etesting.
Product Technology
|
High precision prototype |
PCB bulk production |
|
Max Layers |
1-28 layers |
1-14 layers |
|
MIN Line width(mil) |
3mil |
4mil |
|
MIN Line space(mil) |
3mil |
4mil |
|
Min via (mechanical drilling) |
Board thickness≤1.2mm |
0.15mm |
0.2mm |
Board thickness≤2.5mm |
0.2mm |
0.3mm |
|
Board thickness>2.5mm |
Aspect Ration≤13:1 |
Aspect Ration≤13:1 |
|
Aspect Ration |
Aspect Ration≤13:1 |
Aspect Ration≤13:1 |
|
Board thickness |
MAX |
8mm |
7mm |
MIN |
2 layers:0.2mm;4 layers:0.35mm;6 layers:0.55mm;8 layers:0.7mm;10 layers:0.9mm |
2 layers:0.2mm;4 layers:0.4mm;6 layers:0.6mm;8layers:0.8mm |
|
MAX Board size |
610*1200mm |
610*1200mm |
|
Max copper thickness |
0.5-6oz |
0.5-6oz |
|
|
Immersion Gold/ Gold Plated Thickness |
Immersion Gold:Au,1—8u” |
|
|
Hole copper thick |
25um 1mil |
25um 1mil |
|
Tolerance |
Board thickness |
Board thickness≤1.0mm:+/-0.1mm |
Board thickness≤1.0mm:+/-0.1mm |
Outline Tolerance |
≤100mm:+/-0.1mm |
≤100mm:+/-0.13mm |
|
Impedance |
±10% |
±10% |
|
MIN Solder mask bridge |
0.08mm |
0.10mm |
|
Plugging Vias capability |
0.25mm--0.60mm |
0.70mm--1.00mm |
|
Description

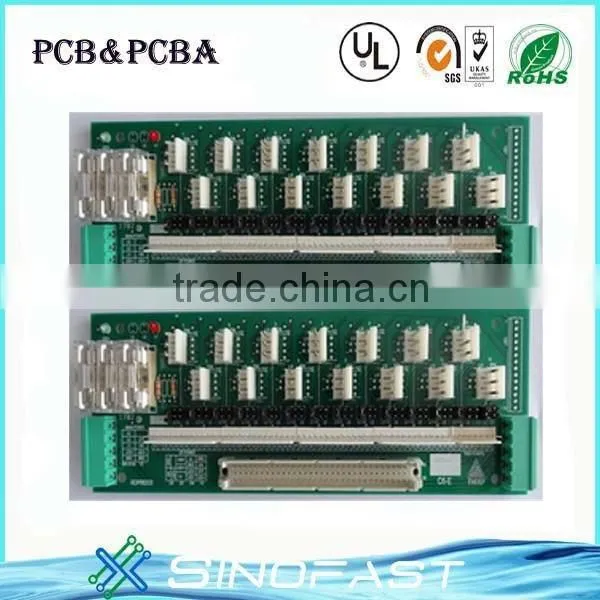

1.Professional manufacturer of PCB and PCBA specialized in single-sided PCB,
double-sided PCB,multilayer PCB, PCB layout and design and PCB assembly.
2. Material Type: FR4,non-halogen material ,Aluminium Base,Cooper Base,
high frequency material ,Thick copper foil,94-V0(HB),PI Material,HIGH TG
.
3. Surface treatment: HAL,Immersion Gold,Immersion Tin,Immersion silver,Gold Finger,OSP,HAL(Immersion Gold,OSP,Immersion silver,Immersion Tin)+Gold Finger.
Factory show
Contact us
Floor 6,G building,HuaFeng industrial park, 86-18720915554
HangCheng Road.Xixiang,Shenzhen,China
echo123 sales10 at
If you want to know more about our company,please visit our webside:
Now send me your enquiry.
Your satisfaction , My pleasure!
