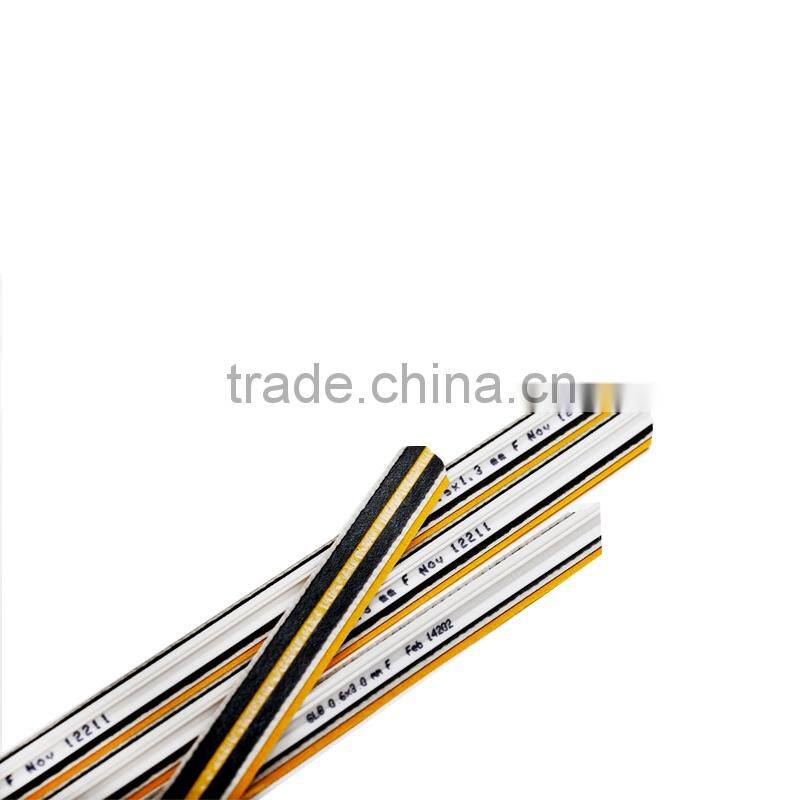

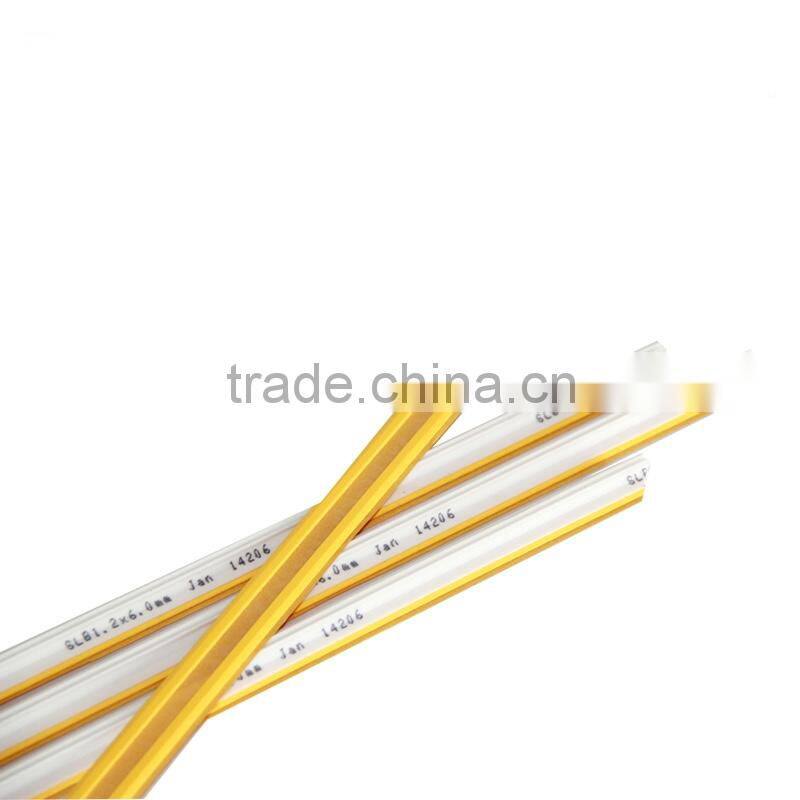

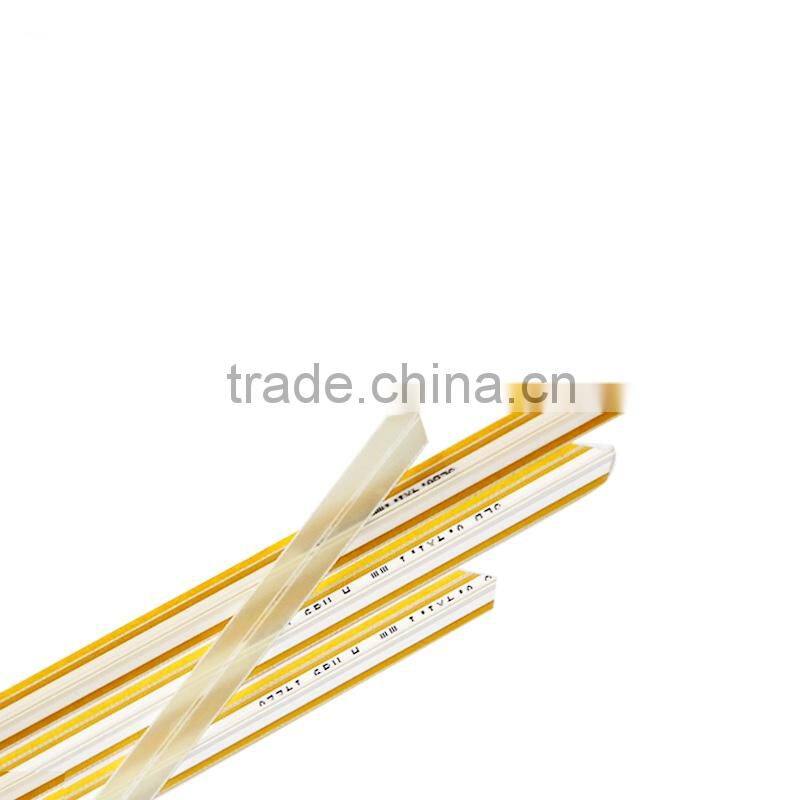

RESIN Creasing Matrix for Die Cutting 0.4x1.5mm A

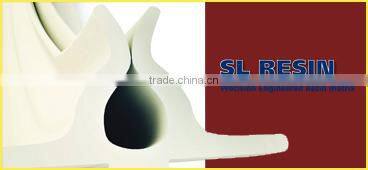

1. Made from a unique resinous material
2. Amongst the most durable creasing matrices available on the market
3. Best suited to automatic die cutting machines
4. A valid alternative to Pertinax counter plates
5. Suitable for long runs of over 150,000 impressions

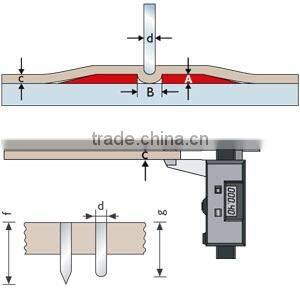

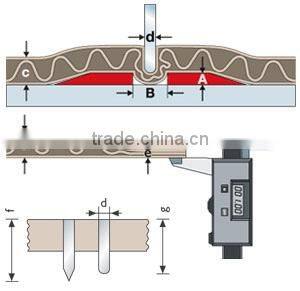

Instance:

A=thickness of shoulders

B=width of channel

c=thickness of cardboard≤d

d=thickness of creasing rule

A≤c  B=(cx1.5)+d

Instance:
A=thickness of shoulders
B=width of channel
c=thickness of cardboard≤d
d=thickness of creasing rule
A≤c B=(cx2.0)+d

The way to choose creasing matrix size for cardboard paper. Size table (subject to 23.8mm die-cutting rules)

Notes: The specifications above are only recommendation, among which the specifications marked with orange color are recommended to choose firstly.

For instance: The thickness of the cardboard: 0.52mm; the thickness of creasing rules: 0.71mm, according to calculation formula: A=0.52≈0.5mm; B=0.52x1.5+o.71=1.49≈1.5mm, so we would choose the size of 0.5*1.5

The way to choose creasing matrix size for Corrugated paper paper. Size table (subject to 23.8mm die-cutting rules)

Remarks: The above blanks just for reference and the exact specification suitable for your job should be chosen according to your actual condotions and material thickness

SIZE TABLE

Shengli has nearly 20 years of experience in the design and manufacture of high quality creasing matrix in China.
Today, Shengli is the undisputed Chinese market leader and has developed a class leading product.
Now available to export markets, Shengli brings its customers a cost effective solution to any creasing problem.

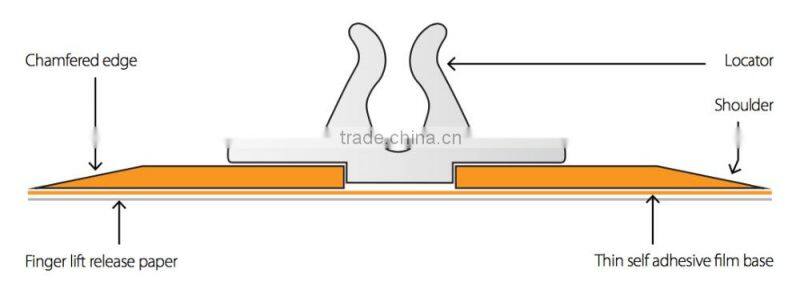

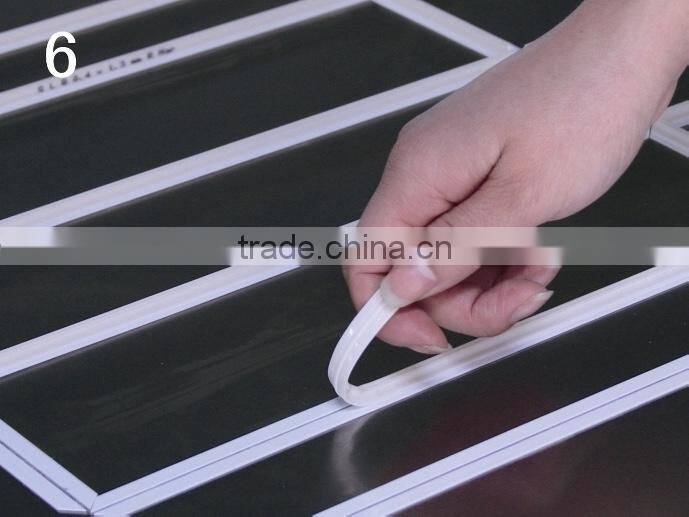

All Shengli matrix products feature a flexible locator, chamfered shoulders, thin film base and European produced self adhesive tape:

Since 2014, Shengli has been part of the C&T Matrix Group whose other brands include Channel and Trimplex.
Together Shengli and C&T now form the largest manufacturer of creasing matrix in the world and enjoy a truly global presence.
Both companies have benefited from this new cooperation; Shengli brings an extensive distribution network throughout China and South East Asia as well as excellent knowledge of the new innovative raw materials. C&T has contributed to developing and extending the range if products available to Shengli and has helped modernize and enhance its manufacturing base in Beijing.
As part of the new C&T Group, Shengli is now a truly international supplier of creasing matrix and can bring its customers the following benefits:
Broad range of matrix solutions and material types; Cost effective yet very high quality; Flexible manufacturing and quick delivery times; A growing presence in overseas markets; A full range of die-cutting accessories; Technical support
