Adhesive Plastic Creasing Matrix for Die Cutting 1.2x4.5mm

Adhesive Plastic Creasing Matrix for Die Cutting 1.2x4.5mm thumbnail-1
Adhesive Plastic Creasing Matrix for Die Cutting 1.2x4.5mm thumbnail-2
Adhesive Plastic Creasing Matrix for Die Cutting 1.2x4.5mm thumbnail-3
Adhesive Plastic Creasing Matrix for Die Cutting 1.2x4.5mm photo-1

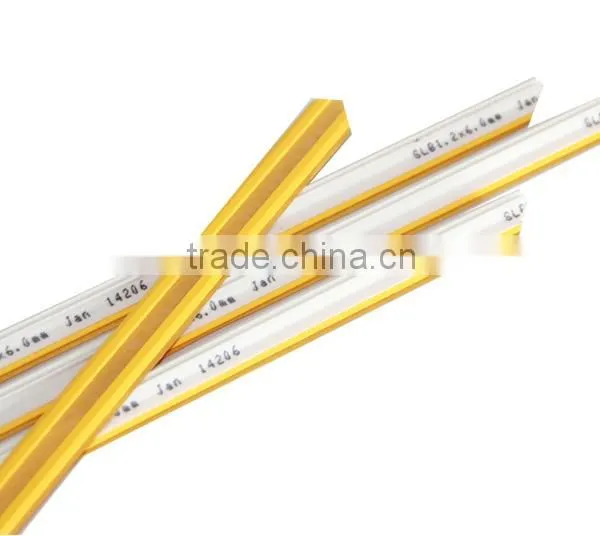

Adhesive Plastic Creasing Matrix for Die Cutting 1.2x4.5mm photo-2
Adhesive Plastic Creasing Matrix for Die Cutting 1.2x4.5mm photo-3
Negotiable MOQ: 1 Box (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Plastic
Industrial Use:
Gift
Place of Origin:
Beijing, China
Contact Supplier Request Quote Chat Now
Beijing Higher Shengli Printing Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing/Tianjin/Shanghai/Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Plastic
Industrial Use Gift
Place of Origin Beijing, China
Brand Name Shengli, Shengli
Model Number 1.2x4.5mm, 1.2x4.5mm
Product Description

A PVC film based matrix. Recently improved adhesive tape to ensure no movement on press.
1 Made from high quality PVC material.
2 Recently improved adhesive tape to ensure no movement on press.
3 Perfectly registered locator to ensure excellent registration.
4 Chamfered shoulders to ensure smooth runnability.
5 Excellent cost effective creasing solution.

Product Name
SL PVC Creasing Matrix
Material
Plastic
Color
White/Yellow
Type
• SLB: Standard Size-13mm/15m;
• SLM: Medium Size-10mm;
• SLZ: Smaller Size-9mm
Application
Suitable for hand platen and automatic die cutting machines
Suitable for short-medium runs
Punching time
30,000~50,000 impressions
Package
70cm/pc, 50pcs/Box, 10 Boxes/Carton, 8-16kgs/carton
Delivery time
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Samples
Free samples available but we do not pay for the freight.
Payment
100% T/T in advance.
Products Show

Related Products

SL RESIN


SL FIBER


SL PRESSBOARD

How to use matrix

Measure the length of the creasing rule

Cut matrix to length of the creasing rule

Position matrix over rule and push into place

Remove backing strip to reveal adhesive membrane

Lock into press&index machine to place matrix on machine to place matrix on opposing platen

Remove locator strip by pulling firmly upwards

Mitre to suitable angle

7 steps bring you a perfect impression


How to Choose Size

Instance:

A=thickness of shoulders

B=width of channel

c=thickness of cardboard≤d

d=thickness of creasing rule

A≤c  B=(cx1.5)+d

Instance:
A=thickness of shoulders
B=width of channel
c=thickness of cardboard≤d
d=thickness of creasing rule
A≤c B=(cx2.0)+d

The way to choose creasing matrix size for cardboard paper. Size table (subject to 23.8mm die-cutting rules)

Cardboard
Weight(g)
Thickness of
Cardboard(mm)
The Height of Creasing Rules(mm)
23.50               23.40                23.30                   23.20                  23.10               23.00
200
0.28 mm
0.3*1.0
0.4*1.0
250
0.35 mm
0.3*1.2
0.4*1.2
0.5*1.2
300
0.42 mm
0.3*1.3
0.4*1.3
0.5*1.4
350
0.50 mm
0.4*1.4
0.5*1.5
0.6*1.5
400
0.56 mm
0.5*1.6
0.6*1.6
450
0.63 mm
0.5*1.7
0.6*1.7
0.7*1.7
500
0.70 mm
0.7*1.7
0.8*1.7

Notes: The specifications above are only recommendation, among which the specifications marked with orange color are recommended to choose firstly.

For instance: The thickness of the cardboard: 0.52mm; the thickness of creasing rules: 0.71mm, according to calculation formula: A=0.52≈0.5mm; B=0.52x1.5+o.71=1.49≈1.5mm, so we would choose the size of 0.5*1.5

The way to choose creasing matrix size for Corrugated paper paper. Size table (subject to 23.8mm die-cutting rules)

Corrugated
Paper
Thickness of
Corrugated paper after compression
Height of creasing rule
Choice of creasing matrix
(Thickness of creasing rule is 1.05mm)
Choice of creasing matrix
(Thickness of creasing rule is 1.42mm)
F-Flute
0.50 mm
23.20 mm
0.5*1.7
E-Flute
0.65 mm
23.10 mm
0.7*23
——
E-Flute
0.75 mm
23.00 mm
0.8*2.5
——
B-Flute
0.85 mm
22.90 mm
0.8*2.7
0.8*3.2
B-Flute
0.95 mm
22.80 mm
1.0*3.0
1.0*3.5
C-Flute
1.05 mm
22.70mm
1.0*3.2
1.0*3.5
C-Flute
1.15 mm
22.60 mm
——
1.0*4.0

Remarks: The above blanks just for reference and the exact specification suitable for your job should be chosen according to your actual condotions and material thickness

SIZE TABLE

Our Company

Shengli has nearly 20 years of experience in the design and manufacture of high quality creasing matrix in China.
Today, Shengli is the undisputed Chinese market leader and has developed a class leading product.
Now available to export markets, Shengli brings its customers a cost effective solution to any creasing problem.
All Shengli matrix products feature a flexible locator, chamfered shoulders, thin film base and European produced self adhesive tape:

Since 2014, Shengli has been part of the C&T Matrix Group whose other brands include Channel and Trimplex.
Together Shengli and C&T now form the largest manufacturer of creasing matrix in the world and enjoy a truly global presence.
Both companies have benefited from this new cooperation; Shengli brings an extensive distribution network throughout China and South East Asia as well as excellent knowledge of the new innovative raw materials. C&T has contributed to developing and extending the range if products available to Shengli and has helped modernize and enhance its manufacturing base in Beijing.
As part of the new C&T Group, Shengli is now a truly international supplier of creasing matrix and can bring its customers the following benefits:
Broad range of matrix solutions and material types; Cost effective yet very high quality; Flexible manufacturing and quick delivery times; A growing presence in overseas markets; A full range of die-cutting accessories; Technical support
