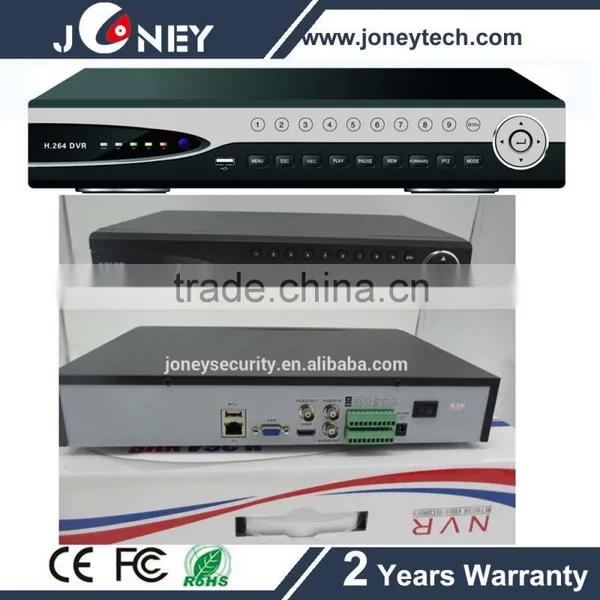

Standalone 32channel NVR 32ch 1U network realtime onvif nvr recorder with Plug&Play and Cloud function
1. High-performance CPU, support HDMI, VGA output
2. Digital zoom function for both preview and playback
3. Support Cloud network function (P2P:Plug&Play)
4. Advanced playback function capable to activate within a second
5. Friendly GUI(Graphic User's Interface), support mouse, panel button and remote control
6. Support PTZ control, support web interface and HTTP, SMTP, DDNS, DHCP, PPPOE and NAT
7. Support mobile monitoring from iphone, Android, Symbian, Blackberry, Windows)
8. Built-in free DDNS
9. UPNP(Universal Plug & Play), NO need to set router port forwarding
10.Support mobile HDD backup
11.Support 3G/WIF USB
Standalone 32channel NVR 32ch 1U network realtime onvif nvr recorder with Plug&Play and Cloud function
System | ||
Chipset |
Hisilion 3520A |
|
Operation System |
Embedded LINUX |
|
Bandwidth |
64Mbps |
|
Pentaplex |
Live play, recording, playback, backup & remote access |
|
Control Mode |
Front panel button, USB mouse, IR remote control, Network, Wireless mouse |
|
Video | ||
IP Camera Input |
4CH/8CH/16CH/32CH 720P@30fps(4Mbps); 4CH/8CH/16CH/32CH1080P@30fps(8Mbps) |
|
Protocol |
ONVIF2.0 compliant |
|
|
1CH HDMI@1920×1080/1440×900/1280×1024/1024×768/800×600 |
|
|
1CH VGA@1280×1024/1024×768/800×600 |
|
Alarm | ||
Input |
4CH/8CH/16CH |
|
Output |
1CH |
|
Recording | ||
Video compression |
H.264/MPEG 4 AVC, up to Main Profile 5.0 |
|
Audio compression |
G.711 |
|
Image Encoding |
Self-adaptive with local bandwidth, variable streaming & fixed streaming |
|
Dual Stream |
Support, main stream $ sub stream |
|
Resolution(NVR) |
5MP/3MP/2MP/1.3MP/1P/VGA/D1 |
|
Recording Mode |
Manual, Auto, Motion detect, scheduled |
|
Time bar |
Support |
|
Video detect | ||
Trigger Events |
Recording, PTZ, Tour, Email |
|
Motion Detect |
Support with variable sensitivity level |
|
Snapshot |
JPEG capture |
|
Playback & backup | ||
Max Playback |
4CH/8CH/16CH/32CH |
|
Backup Mode |
USB, HDD, Network Backup, Mobile HDD |
|
Networking | ||
Ethernet |
1 RJ-45 Port (10M/100M) |
|
Protocol |
TCP/IP, UDP, HTTP, RTP/RTSP, DHCP, PPPOE, DDNS, SMTP, SNTP, FTP, UPnP |
|
Remote Operation |
Live viewing, Recording, Playback, system setting, Motion detect, Alarm, Log information |
|
Smart Phone |
iPhone, Android, Symbian, Blackberry, Windows Mobile |
|
HDD | ||
Capacity |
Support 2x SATA2.0 HDD each 4TB max. |
|
HDD Management |
Auto Hibernation, HDD faulty alarm & RAID |
|
Auxiliary Interface | ||
USB |
2x USB 2.0 |
|
RS485 |
Standard 485 for PTZ control |
|
Environment | ||
Power Supply |
DC 12V 4A |
|
Working Environment |
-10°C~+55°C / 10%-90%RH |
|
Dimension |
400Wx305Dx110H(mm) |
|
Weight |
3Kg (without HDD) |
|
Installation |
Desk type |
|
Standalone 32channel NVR 32ch 1U network realtime onvif nvr recorder with Plug&Play and Cloud function
