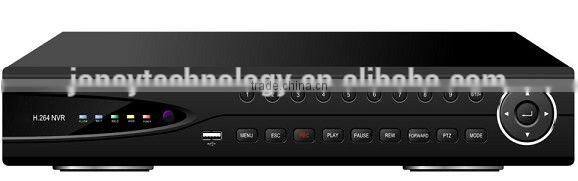

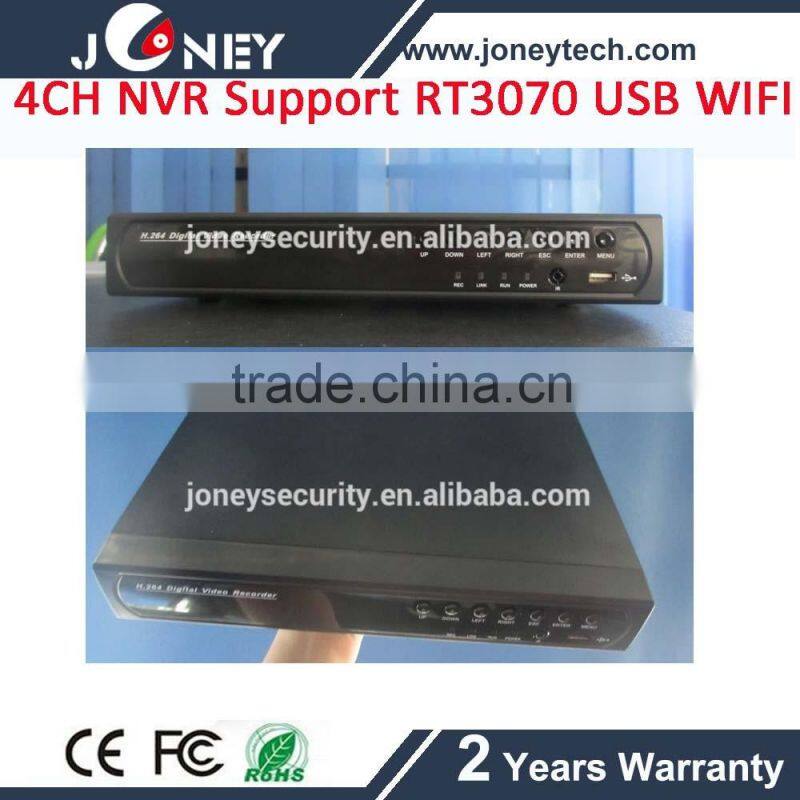

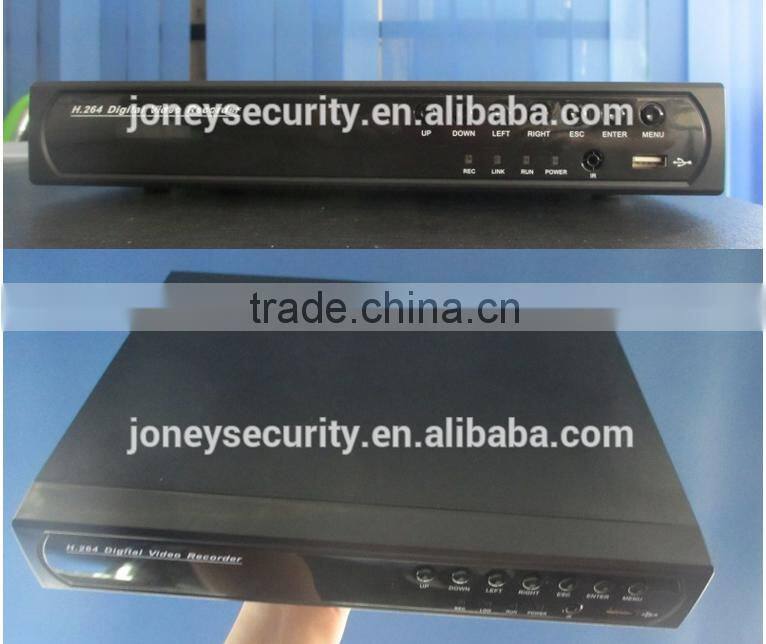

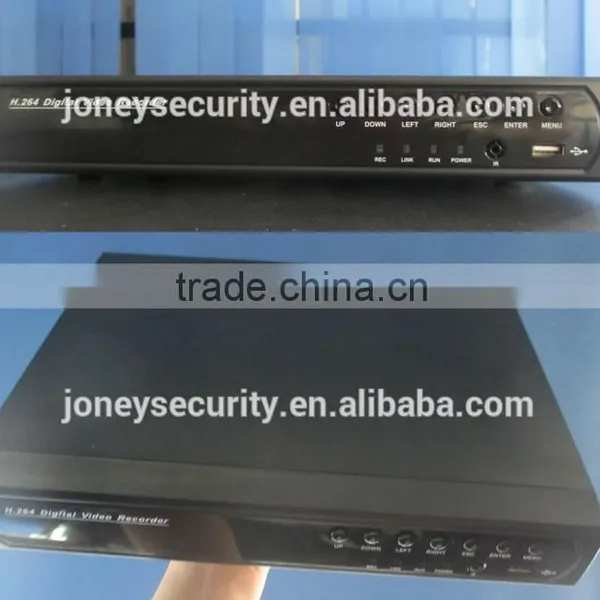

2016 IMSeye Smart Phone App Low Price Online Rohs H.264 8ch Dvr Nvr Support Wifi

System

Chipset

Hisilion 3520A

Operation System

Embedded LINUX

Bandwidth

64Mbps

Pentaplex

 Live play,  recording,  playback,  backup & remote access

Control Mode

Front panel button,  USB mouse,  IR remote control,  Network,  Wireless mouse

Video

IP Camera Input

 4CH/8CH/16CH/32CH 720P@30fps(4Mbps);

4CH/8CH/16CH/32CH1080P@30fps(8Mbps)

Protocol

ONVIF2.0 compliant

1CH HDMI@1920×1080/1440×900/1280×1024/1024×768/800×600

1CH VGA@1280×1024/1024×768/800×600

Alarm

Input

4CH/8CH/16CH

Output

1CH

Recording

Video compression

H.264/MPEG 4 AVC, up to Main Profile 5.0

Audio compression

G.711

Image Encoding

Self-adaptive with local bandwidth, variable streaming & fixed streaming

Dual Stream

Support, main stream $ sub stream

Resolution(NVR)

5MP/3MP/2MP/1.3MP/1P/VGA/D1

Recording Mode

Manual,  Auto,  Motion detect,  scheduled

Time bar

Support

Video detect

Trigger Events

Recording,  PTZ,  Tour, Email

Motion Detect

Support with variable sensitivity level

Snapshot

JPEG capture

Playback & backup

Max Playback

4CH/8CH/16CH/32CH

Backup Mode

USB, HDD, Network Backup, Mobile HDD

Networking

Ethernet

1 RJ-45 Port (10M/100M)

Protocol

TCP/IP,  UDP,  HTTP,  RTP/RTSP,  DHCP,  PPPOE,  DDNS, SMTP, SNTP, FTP, UPnP

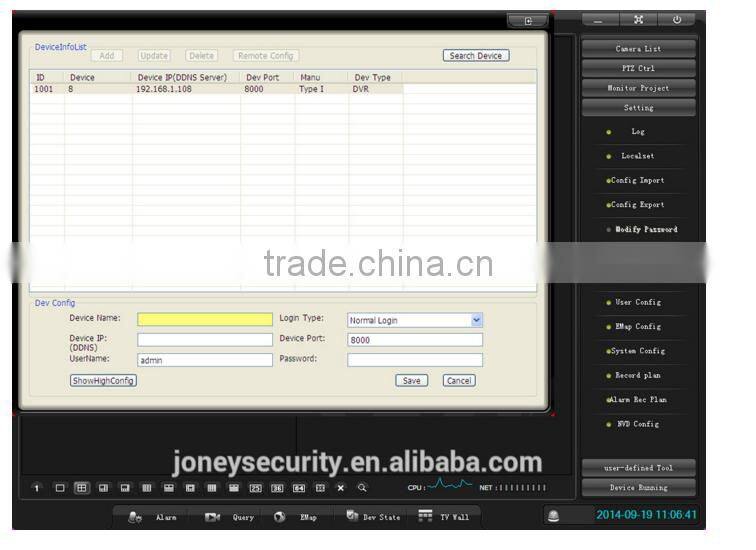

Remote Operation

Live viewing, Recording, Playback, system setting, Motion detect, Alarm, Log information

Smart Phone

iPhone, Android, Symbian, Blackberry, Windows Mobile

HDD

Capacity

Support 2x SATA2.0 HDD each 4TB max.

HDD Management

Auto Hibernation, HDD faulty alarm & RAID

Auxiliary Interface

USB

2x USB 2.0

RS485

Standard 485 for PTZ control

Environment

Power Supply

DC 12V 4A

Working Environment

-10°C~+55°C  /  10%-90%RH

Dimension

400Wx305Dx110H(mm)

Weight

3Kg (without HDD)

Installation

Desk type
